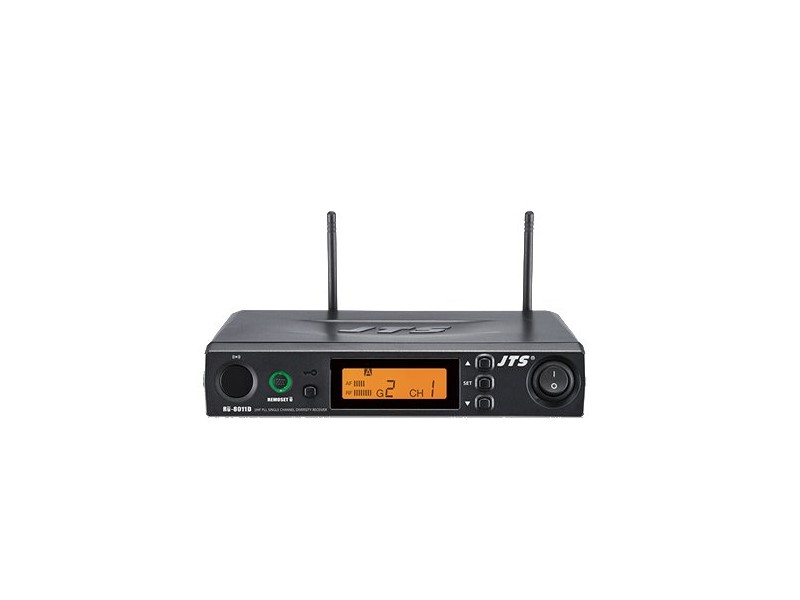

Based on US-8001 successful experience, RU-8011 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.
| RU-8011D |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| Frequency Setting | REMOSET U |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | >105dB(A) |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 60Hz~15KHz±2dB |
| Antenna Type | Fixed Antenna |
| Antenna Booster Power | None |
| Display | LCD |
| Display Contents | Group, Channel, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan,
Audio Level, Volume |
| Controls | Power ON/OFF, Group, Channel, Mute Display, Frequency Scan (ON/OFF), Key Lock,
Volume, Output Attenuation (XLR) |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC) |
| Audio Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Output Connector | 1 independent balanced XLR and one Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/300mA |
| Dimension (mm) | 212.3mm(W)* 38.3mm(H)* 144mm(D) |
