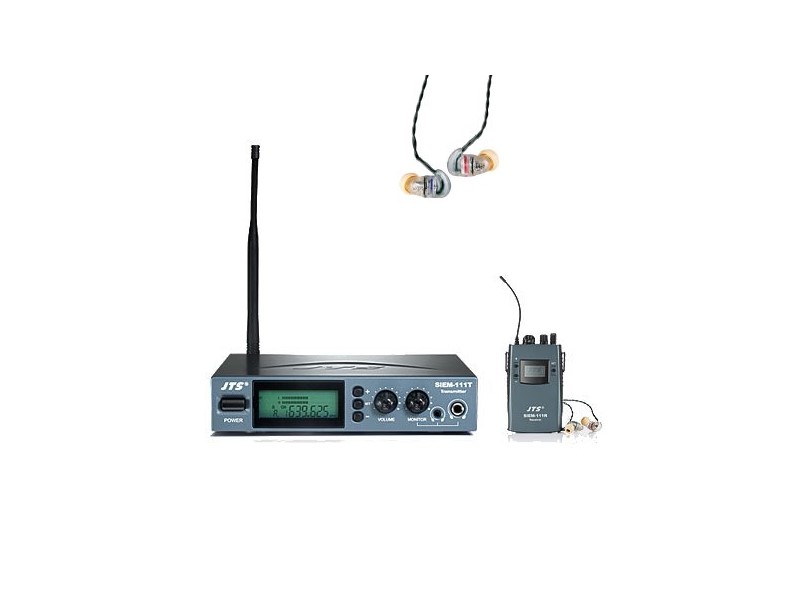

The SIEM-111 System features reliable JTS UHF PLL technology.
* There are 961 selectable UHF channels available. As many as 16 sets of SIEM-111T transmitters can operate on the same stage.* The system offers 4 groups, with each group having 16 compatible preset channels to choose from. This allows the monitor engineer to set up systems quickly and easily.
* MPX Stereo Audio Transmission / Reception, switchable to Mono operation if desired.
* All metal case construction on the SIEM 111R and SIEM 111T.
* The JTS advanced circuitry assures outstanding signal-to-noise ratio.
* IE-1 and IE-6 earphones seal off the ear canal with JTS designed Dyna-Driver ear buds which reduce undesired stage noise, ambient sound levels.
* 3 pairs of different sized Silicon sleeves included with the IE series earphones ensure a right fit for the users ear canal and comfort.

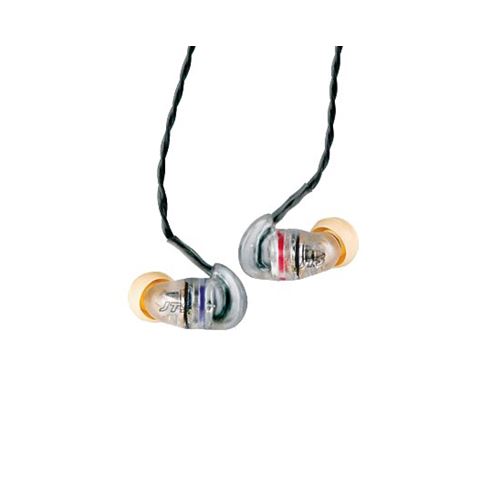

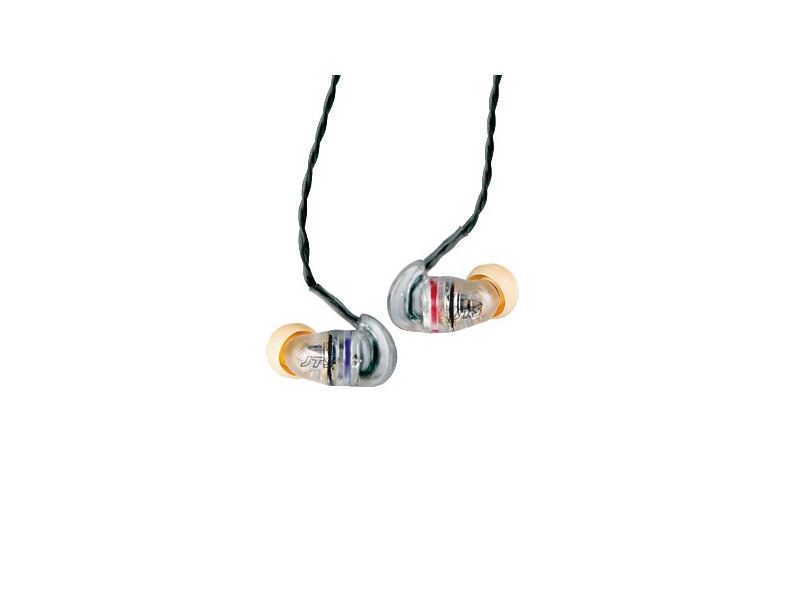

IE-1
* This wideband dynadriver earphone reproduces full range of frequency, natural mids, and full highs and bass. It delivers sound musicians want and should be heard with full detail.
* Three pairs of silicon sleeve are provided with different sizes for best fitting and sound isolation.
* Human friendly mechanical structure ensures long time fatigueless wearing.
* Ergonomic design for long-time wearing without fatigue.

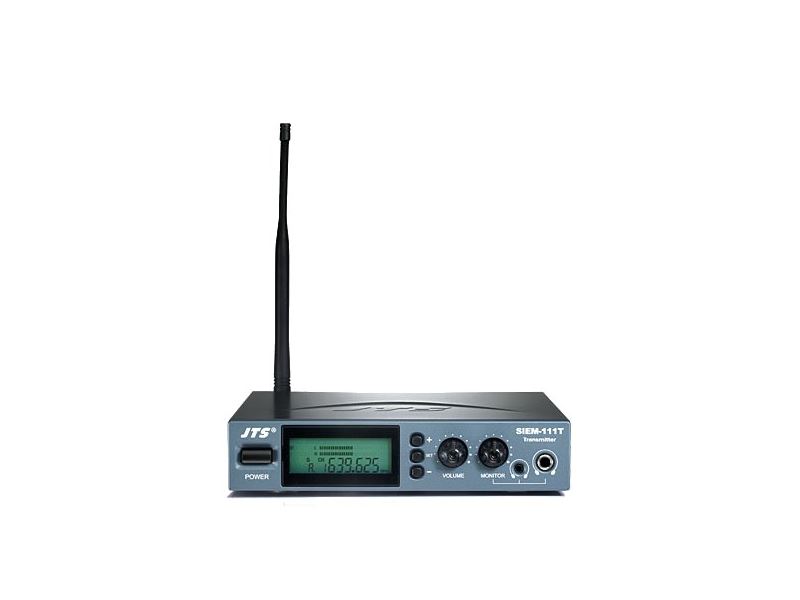

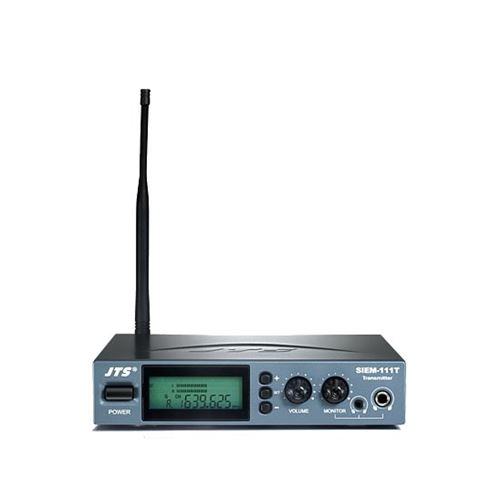

| SIEM-111T |
| Carrier Frequency Range | 470~960 MHz |
| RF Output Power | 10 mW |
| Nominal Frequency Deviation
(modulation) |
±40KHz |
| Audio Input Impedance | 20kΩ |
| Nominal Input Level | -10 dBV ; 0 dBV (ATT-10 dBV) |
| Maximal Input Level | 10 dBV ; 20 dBV (ATT-10 dBV) |
| LCD Display | AF Level, Stereo/Mono, Attenuation Level, Group, Channel, Frequency |
| Audio Input Connector | 2 x Balanced XLR /Ø6.3mm phone Combo Socket |
| Audio Output Connector | 1 x 1/8” Stereo Phone Jack
1 x 1/4” Stereo Phone Jack |
| Loop Out Connector | 2 x Balanced Loop Out Socket |
| Switching Power Supply | 100-240V Switching power supply |

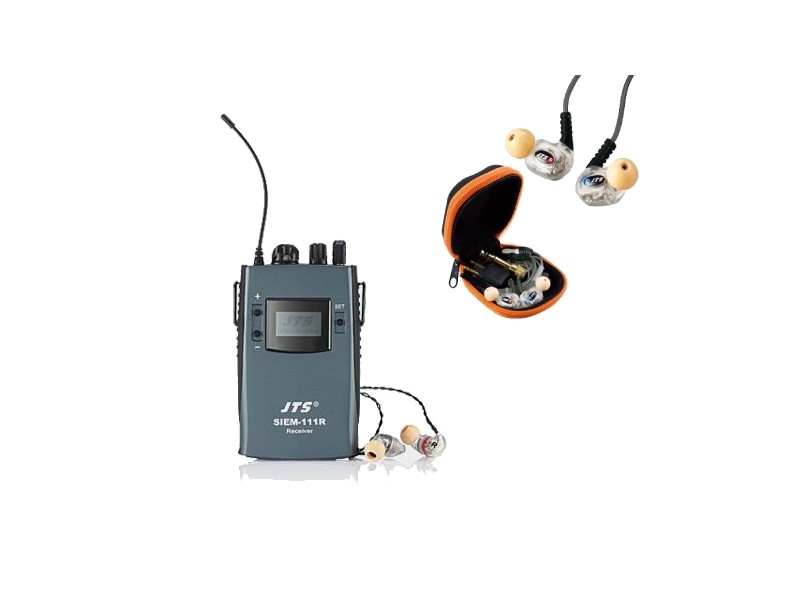

| SIEM-111R |
| Input Level Select Switch | 0dB / -10dB |
| Earphone Output. | 60 mW |
| Minimum Load Impedance | 16Ω |
| LCD Display | RF Level, Lock-On, Battery Fuel Gauge, Stereo/Mono, HF booster,
Dynamic Limiter, Group, Channel, Mute, Frequency |
| Output Connector | 1/8” Stereo Phone Jack |
| Power Supply | 2 AA batteries |
| Operation Hour. | Over 12 hours |
| IE-1 | |
| Frequency Response | 20~20,000 Hz |
| Transducer Type | Dynamic |
| Impedance | 16Ω |
| Sensitivity (at 1000Hz) | 114 dB/mW |
| Distortion | Less than 0.3% |
| Cord Length | 148cm with Ø3.5 stereo plug |
| Net Weight | 6 grams (cable excluded) |
