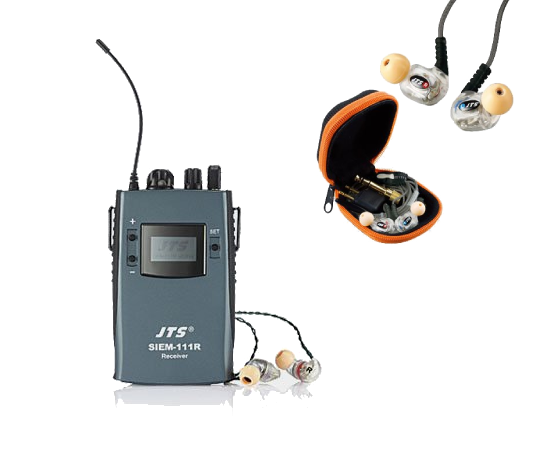

* The SIEM-111 System features reliable JTS UHF PLL technology.
* There are 961 selectable UHF channels available. As many as 16 sets of SIEM-111T transmitters can operate on the same stage.
* The system offers 4 groups, with each group having 16 compatible preset channels to choose from. This allows the monitor engineer to set up systems quickly and easily.
* MPX Stereo Audio Transmission / Reception, switchable to Mono operation if desired.
* All metal case construction on the SIEM 111R and SIEM 111T
* The JTS advanced circuitry assures outstanding signal-to-noise ratio.
* IE-1 and IE-6 earphones seal off the ear canal with JTS designed Dyna-Driver ear buds which
reduce undesired stage noise, ambient sound levels.
* 3 pairs of different sized Silicon sleeves included with the IE series earphones ensure a right fit for the users ear canal and comfort.

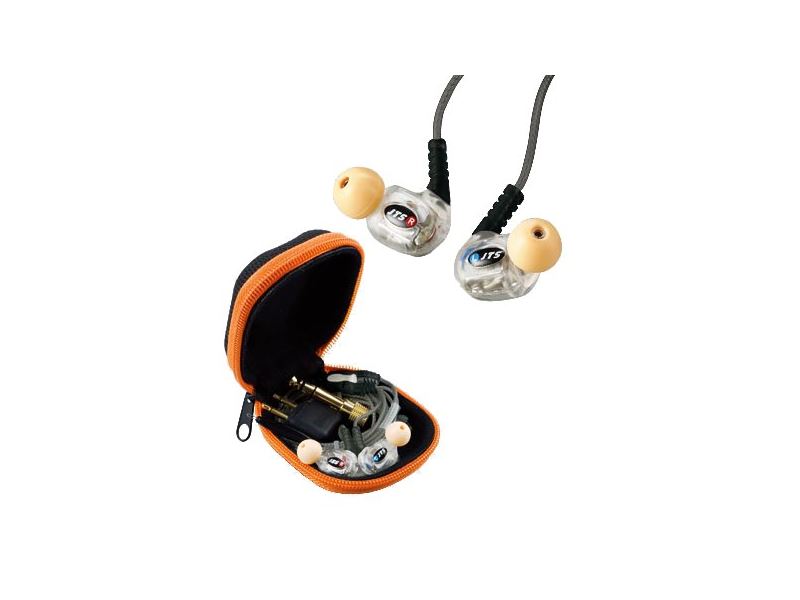

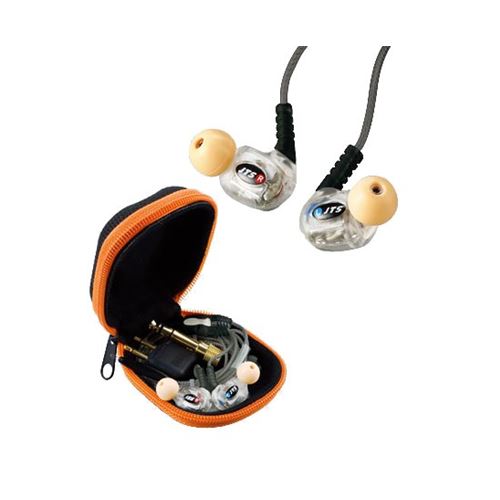

IE-6
The IE-6 is designed with dual performance drivers and built-in crossover. It loyally reproduces precision highs, natural mids, and full bass. The excellent IE-6 is specially designed for JTS wireless in ear monitoring system. Yet the dynamic design makes itself also perfectly compatible with systems from other major brands.
High-dynamics, High-definition, Low-noise, distinct sound stage, transparent and airy highs, clear low-frequency, excellent isolation, as well as endurance for high sound pressure level, extreme durability and accurate audio reproduction.

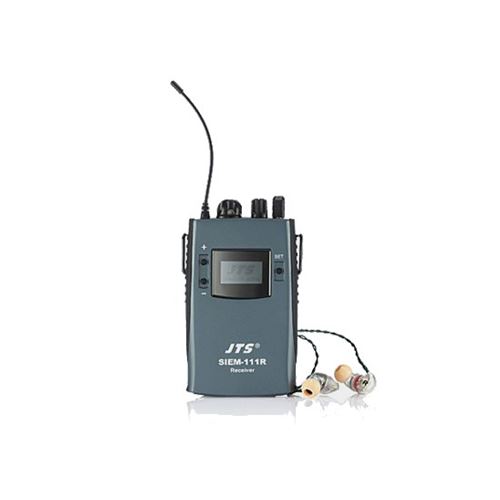

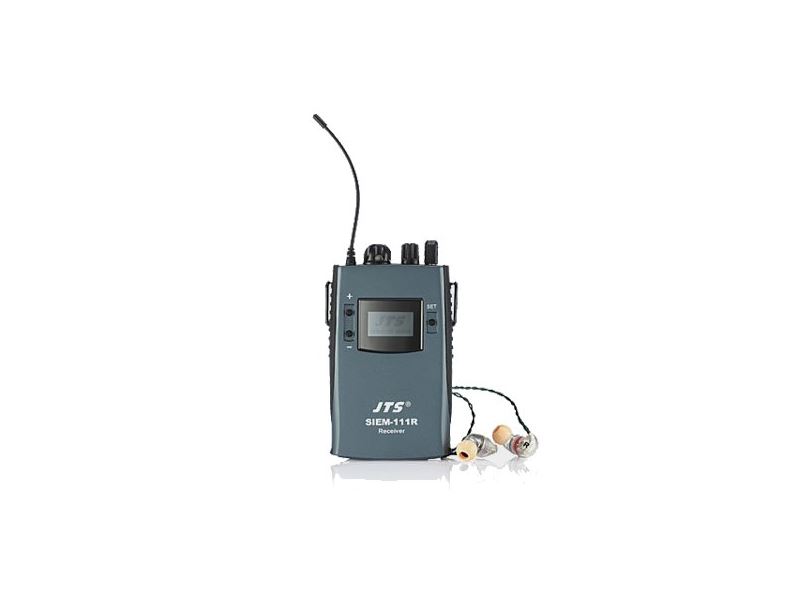

SIEM-111R | |
Input Level Select Switch | 0dB / -10dB |
Earphone Output. | 60 mW |
Minimum Load Impedance | 16Ω |
LCD Display | RF Level, Lock-On, Battery Fuel Gauge, Stereo/Mono, HF booster,
Dynamic Limiter, Group, Channel, Mute, Frequency |
Output Connector | 1/8” Stereo Phone Jack |
Power Supply | 2 AA batteries |
Operation Hour. | Over 12 hours |
IE-6 | |
Driver | Dual balanced armatures(Single Hi/Single Low)with a passive crossover |
Frequency Response | 20~18000 Hz |
Impedance | 22Ω |
Sensitivity (at 1000Hz) | 120 dB/mW |
Max. Input Power | 150mW |
Distortion | Less than 0.3% |
Cord length | 140cm |
Net Weight | 7 grams (excluding cable) |
Output Connector | Gold-plated Ø3.5mm phone, Stereo |
Option. | Dual Plug Airline adaptor, 1/4” Adaptor (6.3mm) |
Standard | Carrying Case |
Accessories | Cleaning Rod, Three pairs of Silicon Sleeves (small, medium, and large) |
