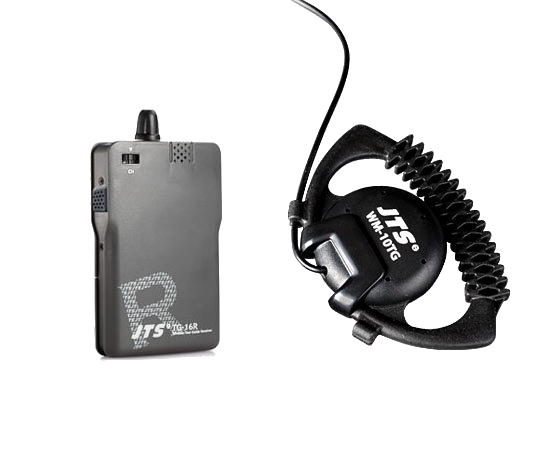

TG-16R is a 1/8" Dummy stereo phone jack wireless tour guide system. Maximum operational distance 100 meters for TG-16 and 200 meters for TG-16A.
- Maximum operational distance 100 meters for TG-16 and 200 meters for TG-16A
- Preset 16 selectable channels
- Use NiMH rechargeable AA battery
- Transmitter bundled with tie clip microphone W-68T
- Receiver bundled with single earphone WM-10TG
- Built in microphone at TG-16T and TG-16TA
- Space available for built in speaker at TG-16R and TG-16RA
- Compatible with stationary transmitter TG-10STX and receiver
- Designed for cost cautious projects

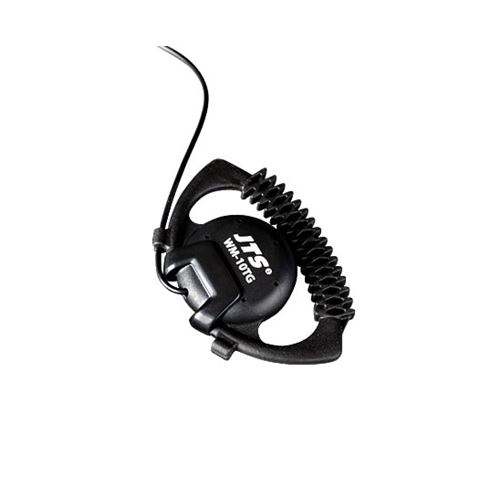

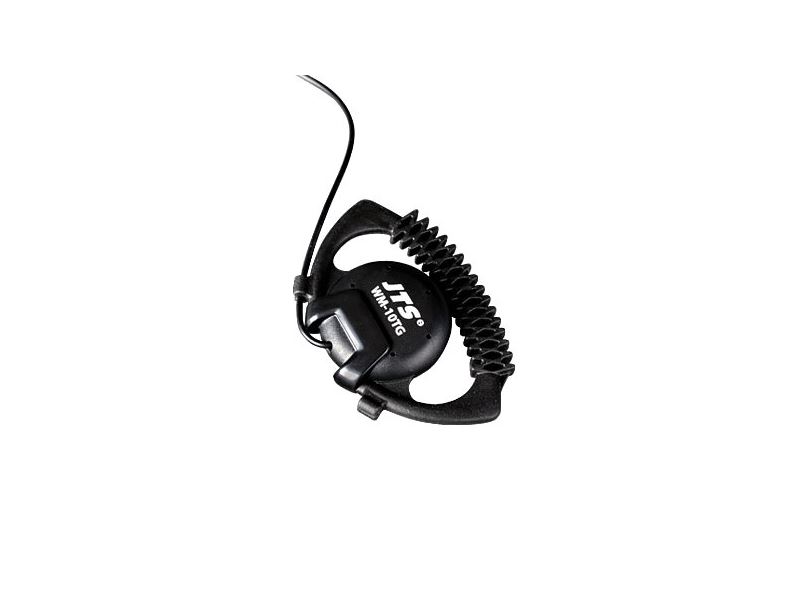

WM-10TG
* Handy feature, broad angle ear set with ergonomic design ensures comfortable wearing.
* Audiophile quality semi closed, dynamic headphone.* Powerful neodymium-ferrous rare earth magnet system.
* Lightweight copper-clad aluminum voice coils.
* The cord is terminated with a gold-plated Ø3.5 dummy stereo phone plug.
* Super thin 21mm dynamic driver with neodymium magnet structure provides crystal clear sound.

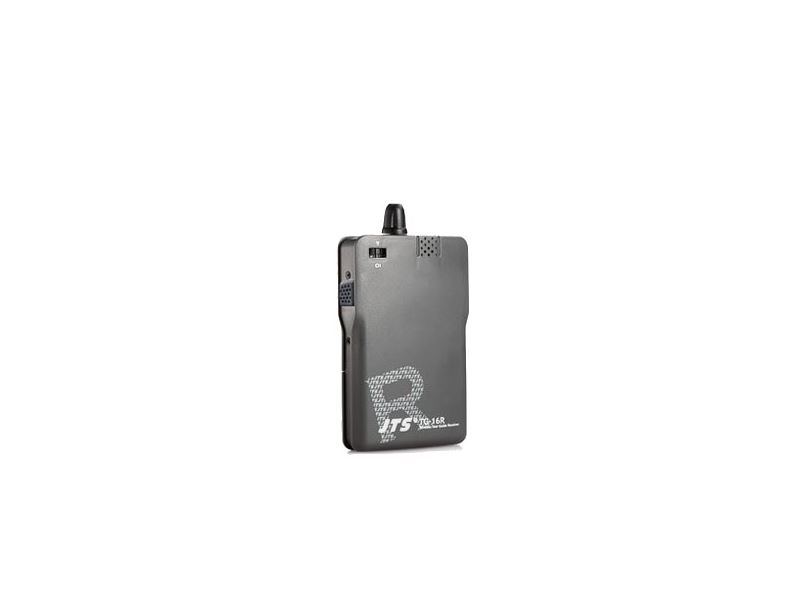

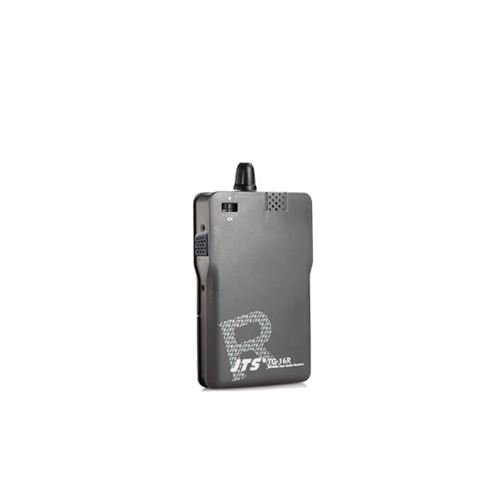

TG-16R
- Maximum Frequency Response (Bandwidth): 18 kHz
- Maximum Frequency Response (Bandwidth): 18000 Hz
- Minimum Frequency Response (Bandwidth): 40 Hz
- Minimum Frequency Response (Bandwidth): 0.04 kHz
- Certifications: FC, CE
- Wireless: Yes
- Current Draw: 0.20 Amps
- DC Voltage: 1.20 Volts
- Depth: 0.79 in
- Height: 3.82 in
- Width: 2.44 in
- Number of Channels: 16
| WM-10TG | |
| Drive Unit | Super thin dynamic driver with neodymium magnet |
| Frequency Response | 0~15,000 Hz |
| Impedance | 32Ω |
| Sensitivity(at 1000Hz) | 126 dB/mW |
| Max. Input power | 0.2W |
| Input Connector | Gold-plated Ø3.5 dummy stereo phone plug |
| Weight | 15.2 grams |
