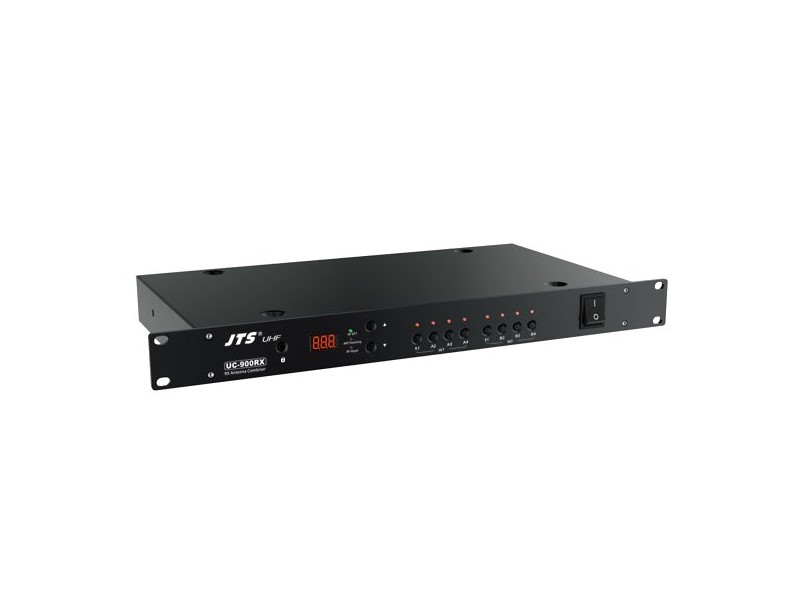

The UC-900RX is designed for receivers. It provides 2 x 4 antenna inputs to minimize RF dead zone on a stage or any venue. It also feature RF input ON/OFF, input attenuation from -31 to 0 dB and input signal ON/OFF control. The UC-900RX makes RF engineers’ job easy.
| UC-900RX | |
| Frequency Range | 470~970 Mhz |
| Full System Gain | 8dB(±3dB) |
| Input Impedance | 50 ohm |
| RF Input Power | 0dBm(Max)@Attenuation=0dB |
| RF Input Attenuation | -31~0dB (Step:1dB) |
| Input/Output Connectors | BNC(F):Input x8 / Output x2 |
| Functions | 1. Antenna Booster Powering ON/OFF Control
2. RF Input Attenuation Control 3. RF Signal ON/OFF Control |
| Antenna Booster Power | 12V/200mA*8 |
| Power Supply | 100~240VAC;MAX2A 50/60Hz |
| Dimensions | 480mm(W)*45mm(H)*260mm(D) |
