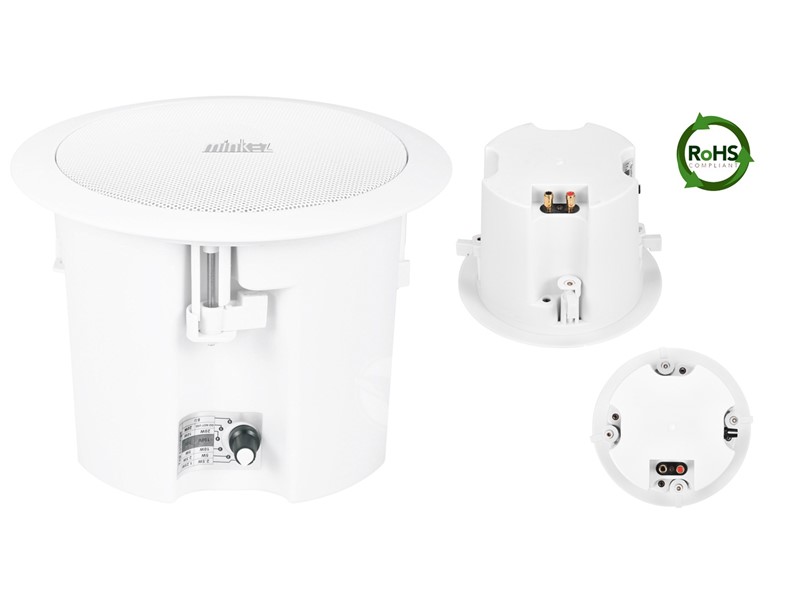

- The MCS-530V is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
- The built-in 5”+1.5” coaxial speaker driver is designed for wide frequency response 100-18kHz, and its various power output from 3.75W, 7.5W, 15W & 30W could meet different room size applications. The power taps are convenient to switch the input from 100V to 70V or 8Ω, thus this speaker supports both high impedance input and low impedance input use. The metal grille, ABS baffle, and ABS back cover are painted in attractive white colour. Its flush mount type makes the easy and secure installation.
- It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
- (1) Built-in 100v/70v transformer
-
- (2) In-ceiling type loudspeaker
-
- (3) 5” +1.5” coaxial speaker unit
-
- (4) Power output 3.75W, 7.5W, 15W & 30W @100V
-
- (5) Built-in crossover for hi-fi use
| Brand | Minkez |
| Model | MCS-530V |
| Power Taps @ 100V | 3.75 W, 7.5 W, 15 W, 30 W |
| Power Taps @ 70V | 1.9 W, 3.75 W, 7.5 W, 15 W, 30 W |
| Transformer Impedance | Black: Com; Red: 2.7 K Ohm / 1.3 K Ohm / 670 Ohm / 330 Ohm / 165 Ohm |
| Input | 70 V / 100 V / 8 Ohm |
| SPL (1W / 1M) | 89 dB |
| Maximum SPL (Rated W / 1M) | 106 dB |
| Frequency Response (- 10 dB) | 100 – 18 K Hz |
| Finish | Baffle: ABS, White; Grille: Steel, White |
| Speaker Driver | 5″ x 1; 1.5″ x 1 |
| Cutout Size | 210 mm |
| Mounting | Flush-mount dog ears |
| Dimensions | 240 x 155 mm |
| Weight | 2.1 kg |
