- With new digital design

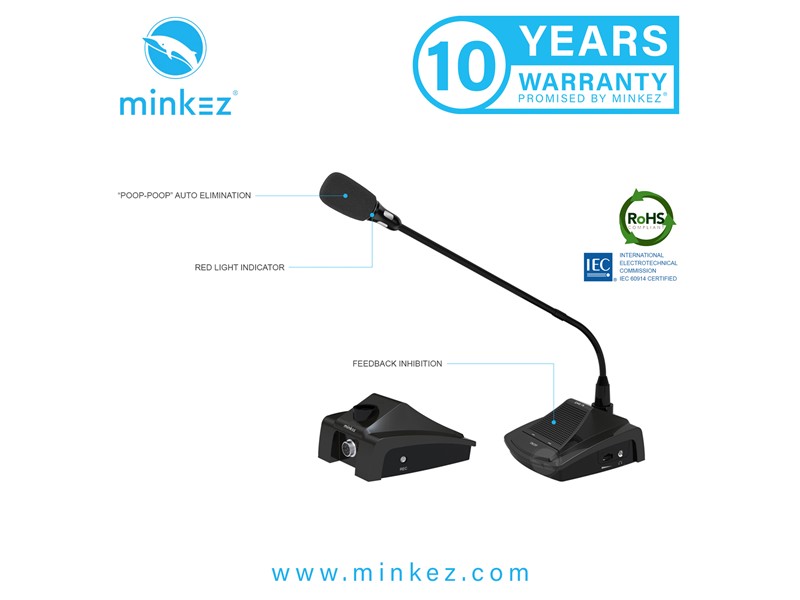

- With ring-shaped speech indicator light that can show the status of speech.
- The specially designed microphone shield can eliminate the “poop-poop” low-frequency sound even without using the windproof cotton cover.
- The chairman is unrestricted by the microphone modes and the number of speakers.
- The chairman unit has full-control priority and can be placed in any position of the loop. The units adopt a hand-in-hand cascade connection mode, convenient for installation and maintenance.
- The reliable condenser microphone pole and professional large heart-shaped condenser microphone core make the unit a high sensitivity and intelligibility of the speech.
- The microphone has high and adjustable sensitivity.
- The power of the units is supplied by the system host at 24V safe voltage.
- The units are connected by a T-shaped 8-core cable.
- With 2 groups of 3.5mm stereo sound output socket, can be used for record and earphone connection.
- Built-in hi-fi speaker and volume control; with feedback inhibition function
- With discussion / automatic video-tracking function.
| Brand | Minkez |
| Model | CMD-18 |
| Microphone Type | Heart-Shaped Projection Electrets |
| Frequency Response | 80 Hz – 16K Hz |
| SNR | 1 K Ohm |
| Dynamic Range | – 46 dB V / Pa |
| Crosstalk | 100 dB (THD > 3 %) |
| THD | > 80 dB |
| Power Supply | > 70 dB |
| Audio Input | > 80 dB |
| Audio Output | < 0.1 % |
| Output Load | 2 W |
| Static Consumption | 8 Ohm – 32 Ohm |
| Output Consumption | Maximum 40 mW |
| Connector | 3.5 mm Mono Jack |
| Standards | IEC60914 |
| Working Temperature | – 10 C to 60C |
| Working Humidity | 20% – 80% Relative Humidity (Without Condensation) |
| Colour | Black |
| Dimensions | 200 x 430 x 80 mm |
| Weight | 0.86 kg |
