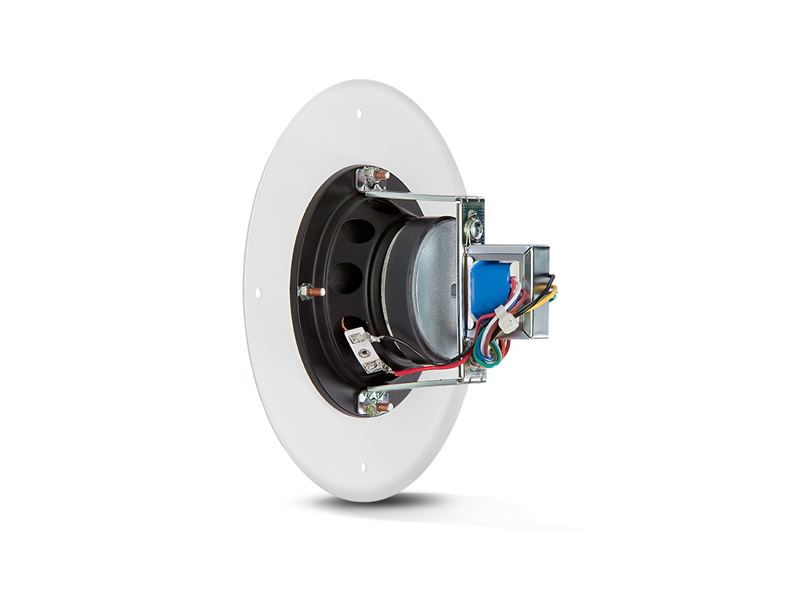

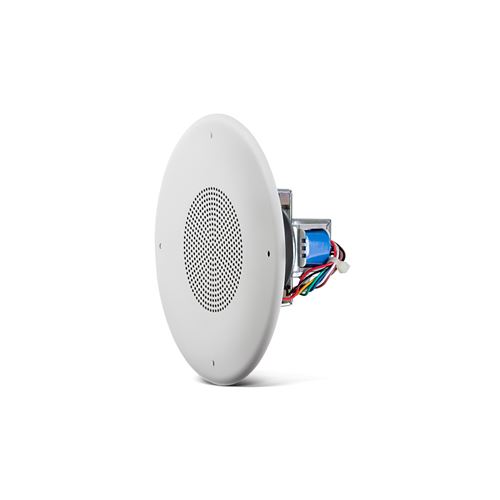

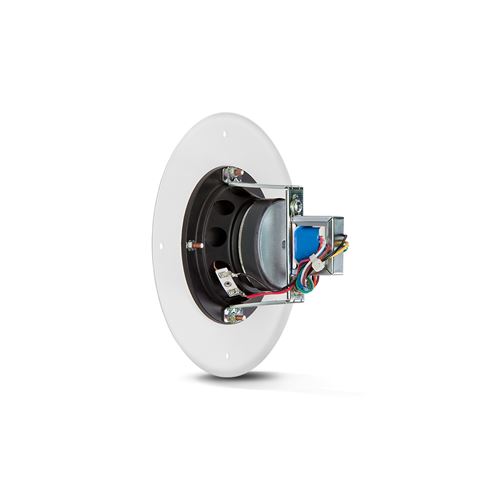

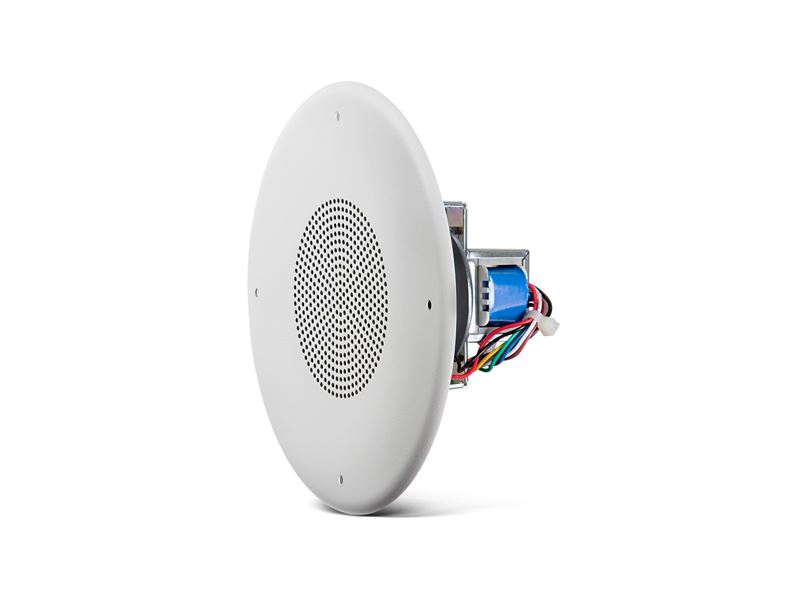

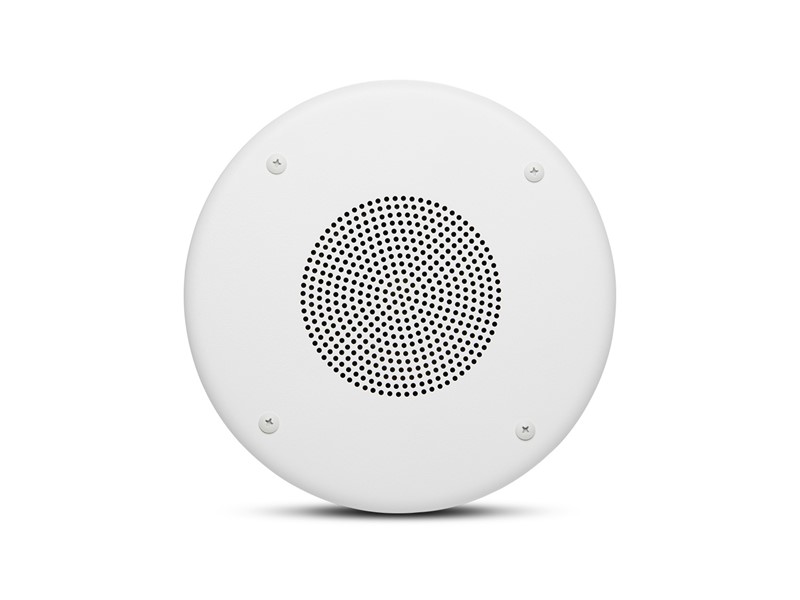

JBL Commercial Series 15 Watts RMS 4" Ceiling Speaker

CSS8004

JBL Professional

Whatsapp for enquiry Email for enquiry






100 mm (4 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.


Features

  • High 90 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Very wide 175° coverage

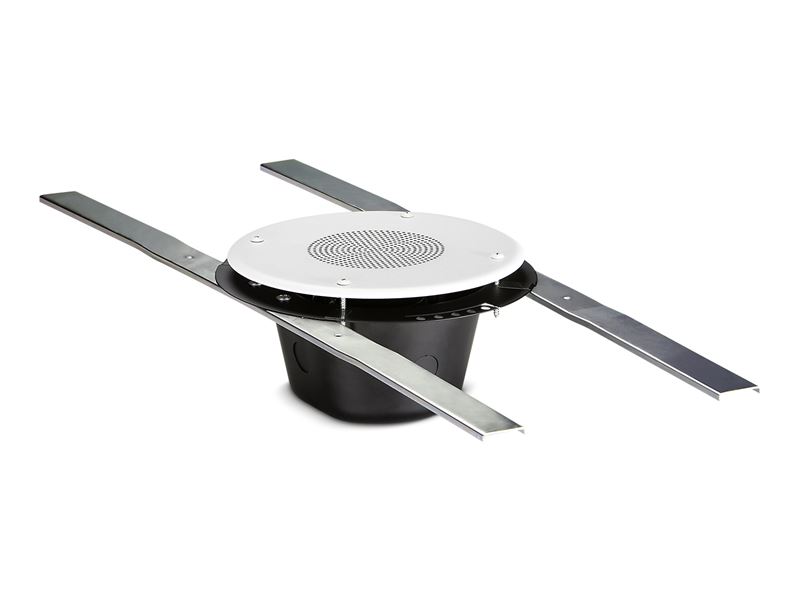

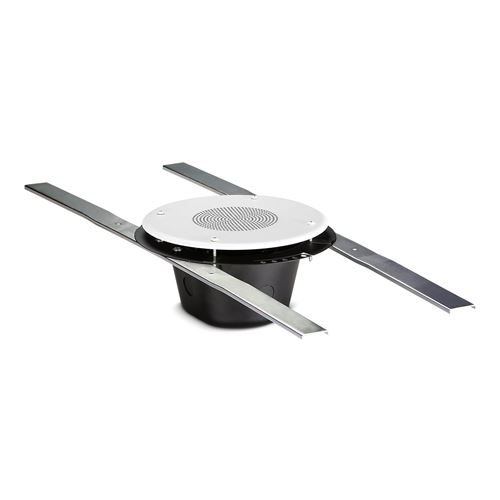

  • Fits CSS-BB4 backcan


    Drivers 100 mm (4 in)
    Sensitivity 90 dB (2k - 6k Hz)
    Frequency Range (-10 dB) Driver/Grille Assembly 85 Hz – 18 kHz
    Installed in CSS-BB backcan 130 Hz – 18 kHz
    Coverage Angle 175° conical
    Driver Continuous Power Handling 15 Watts
    Transformer Taps 5W, 2.5W, 1.3W
    Transformer Taps 5W, 2.5W, 1.3W, 0.7W
    Transformer Taps 5W, 2.5W, 1.3W, 0.7W
    Transformer Insertion Loss 1.5 dB Maximum
    Transformer Connection Bare wire
    Motor Mass 200 g (7 oz)
    Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
    Matching CSS Backcan CSS-BB4
    Other Compatible Backcans N/A
    Bolt Mounting Circle to Backcan 4 points on 165 mm(6.5 in) diameter
    Cutout DiameterOpen-back 125 mm (5.0 in)
    In CSS-BB backcan 170 mm (6.7 in)
    Depth (behind grille) 94 mm (3.7 in)
    Grille Diameter 198 mm (7.8 in)
    Net Weight (each) 0.90 kg (1.0 lb)
    Shipping Weight (ea) 1.26 kg (2.8 lb)
    Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
    Power Rating See transformer taps
    Transformer Taps 100V Taps - 5W, 2.5W, 1.3W
    70V Taps - 5W, 2.5W, 1.3W, 0.7W
    25V Taps - 5W, 2.5W, 1.3W, 0.7W
    Maximum SPL (1m) 97 dB (top 25V/70V/100V tap)
    Input Connectors Bare wire
    Backcan formed steel (accessory)
    Baffle/Rim Metal
    Ceiling Cutout Size 125 mm (5.0 in)
    Plenum Usage Yes, with accessory backcan
    Color White
