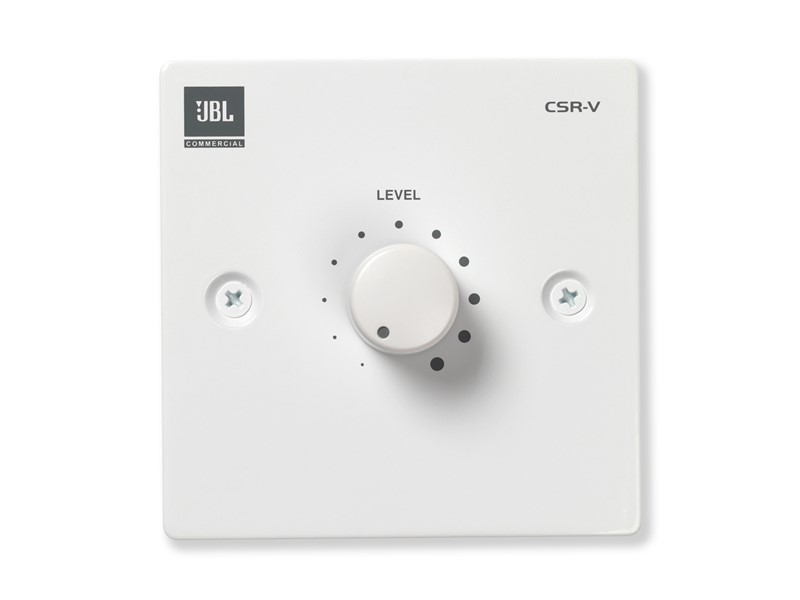

The JBL Commercial® CSR series remote controls, including CSR-V, CSR-2SV, and CSR-3SV, can use analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors up to 1000 feet (305 m) length, the CSR series remote controls allow you to remotely select the source and/or control the volume on the CSM mixer. Using CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer. Using CSR-2SV or CSR-3SV remote control with your CSM-21 or CSM-32 zone mixer, you can remotely control the source on the mixer and the volume of the source.
Compatibility Between CSR Remote Controls and Commercial Series Electronics | ||||||||||||
Remote Control | Mixer | Mixer Amplifier | Amplifier | |||||||||
CSM-21 | CSM-32 | CSM 14 | CSM 28 | CSMA 180/1120 | CSMA 240/280/2120 | VMA 160/1120/1240 | VMA 260/2120 | CSA 140Z/180Z/1120Z | CSA 240Z/280Z/2120Z | CSA 1300Z/2300Z | CSA-2120 | |
CSR-V |
|
|
|
|
|
|
|
|
|
|
|
|
CSR-2SV |
|
|
||||||||||
CSR-3SV |
|
|||||||||||
*when using two input sources | ||||||||||||
**one per output channel |
