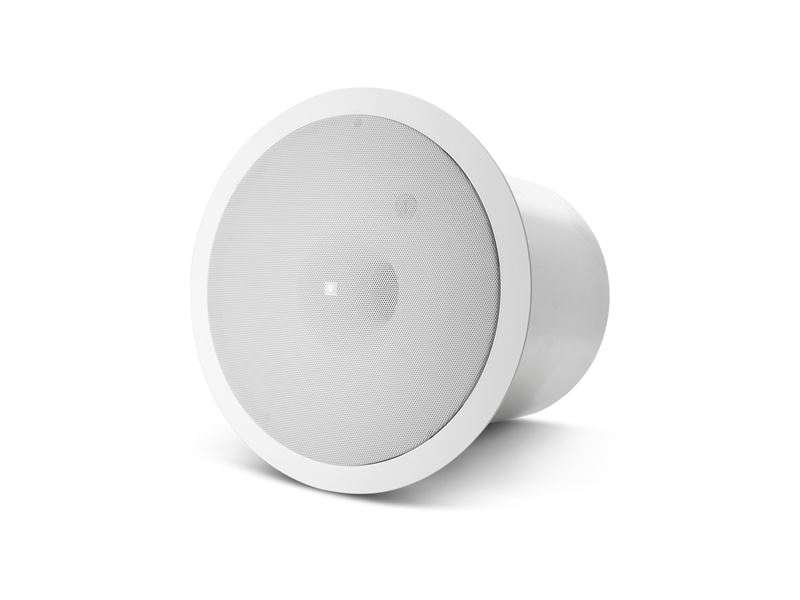

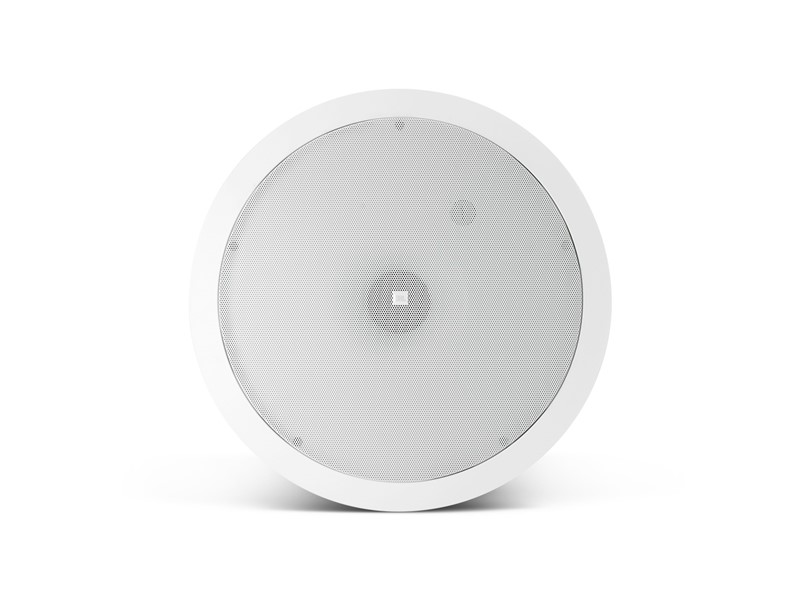

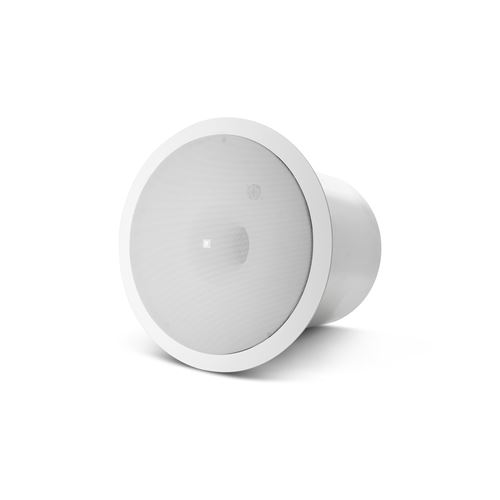

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
- Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
| Frequency Range | 42 Hz - 200 Hz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): |
| 200 Watts Continuous Program Power | |
| 100 Watts Continuous Pink Noise (400W peak), 100 hrs | |
| Sensitivity | 95 dB SPL in ceiling near corner, 89 dB in center of ceiling |
| Coverage Angle | 180° conical |
| Maximum SPL (1m) | 109 dB (low-impedance, 115 dB peak, center of ceiling) |
| 115 dB (low-impedance, 121 dB peak near corner) | |
| Impedance | 8 ohms |
| Input Connectors | Removable locking connector with screw-down terminals. |
| Drivers | 200 mm (8.0 in) subwoofer |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 305 mm (12.0 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
| Enclosure Material | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Overload Protection | Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST) |
| Outside Dimensions (H x Dia) | 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) | 5.5 kg (12 lb) |
| Shipping Weight (pair) | Control 19CS: T12.7 kg (28 lb) |
