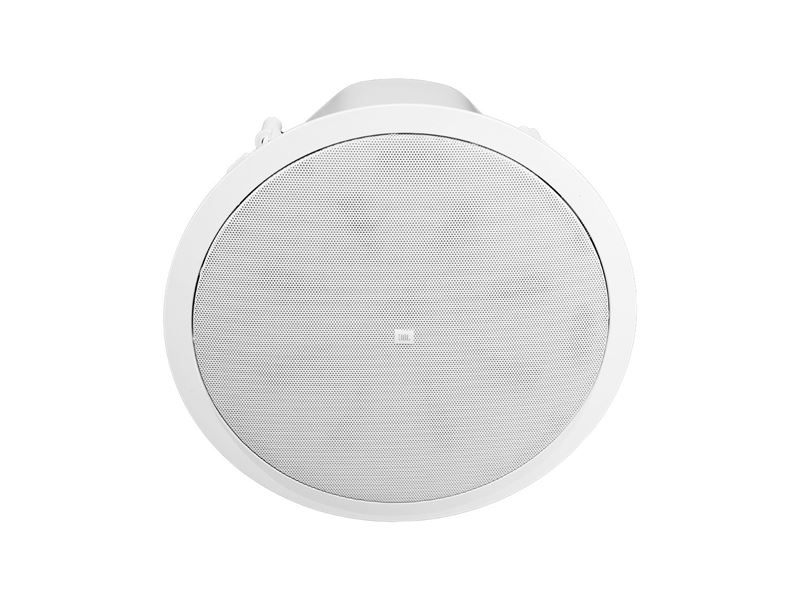

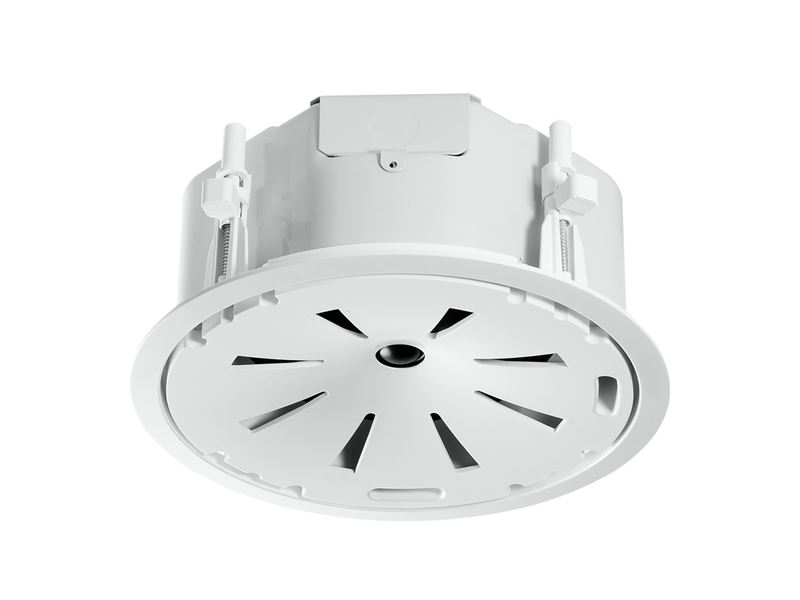

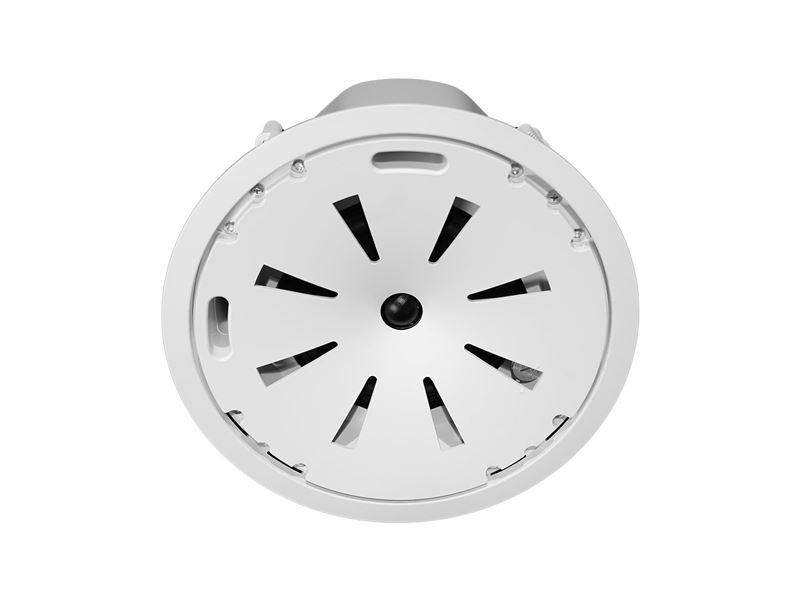

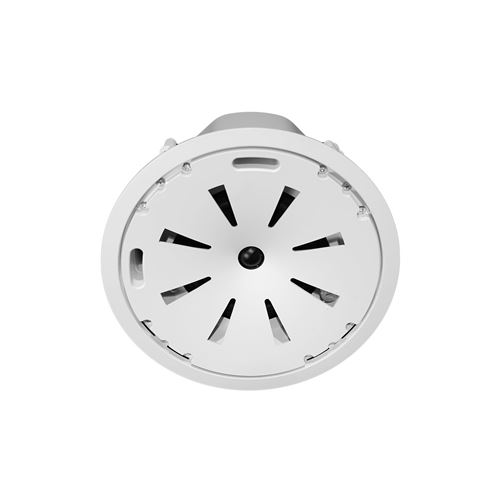

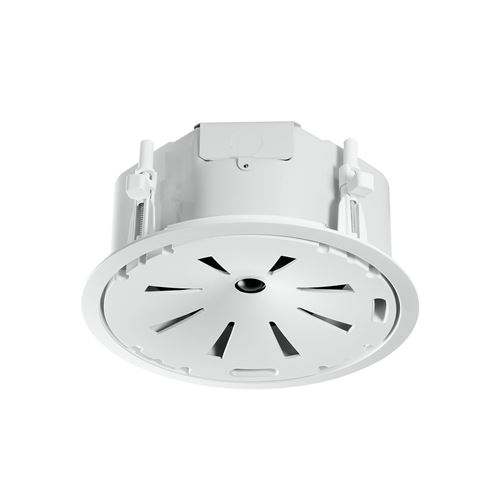

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.
Features- Shallow Backcan Version of 47C/T for locations with limited clearance
- Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
- Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Elegant design fits any décor
| Frequency Range | 68 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): |
| 150 Watts Continuous Program Power | |
| 75 Watts Continuous Pink Noise (300W peak), hrs | |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) |
| HF Driver: 25 mm (1 in) | |

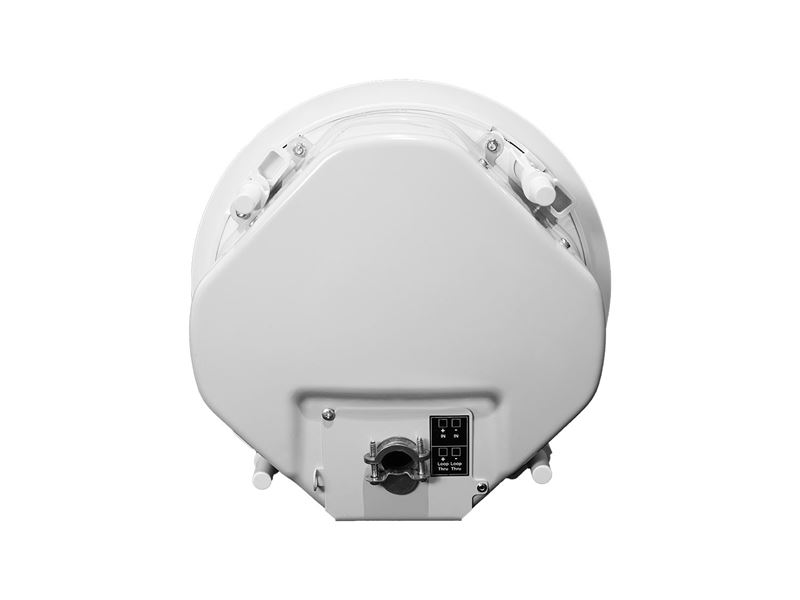

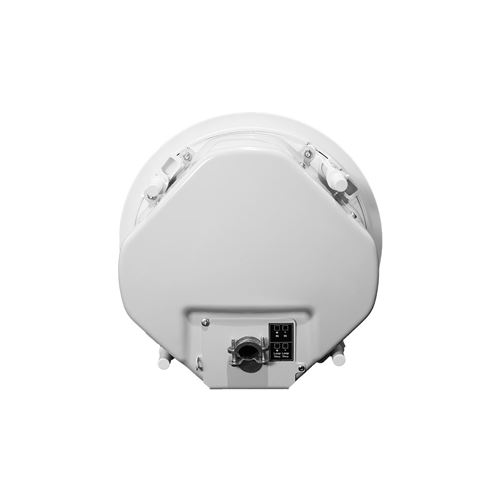

| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |

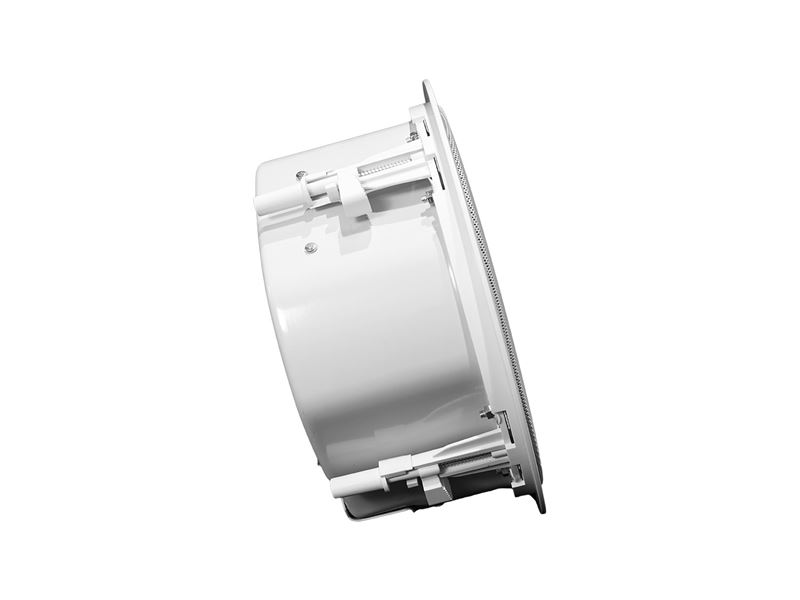

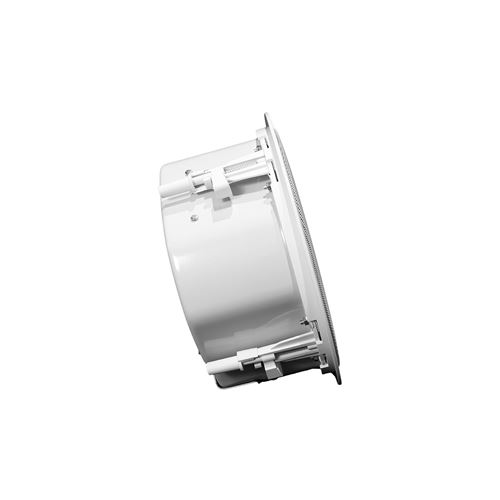

| Dimensions (Diameter x Depth) | 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in) |
| Maximum SPL (1m) | 110 dB (low-impedance, 116 dB peak) |
| 109 dB (top 70V/100V tap) | |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 282 mm Diameter (11.1 in) (cardboard cutout template included) |
| Optional Accessories | MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
