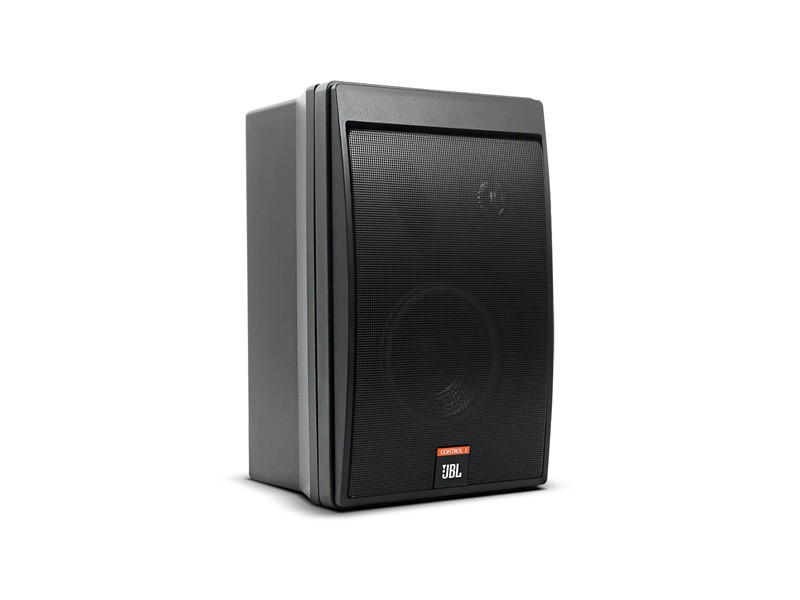

The Control 5™ is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications.
Features
- Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
- High power handling (175 W pink noise) with integral protection circuit network.
- Molded enclosure with shielded magnet structure.
- Components: •165 mm (6.5 in) low frequency loudspeaker. •25 mm (1 in) pure titanium dome tweeter.
| Frequency Response (±3 dB) | 75 Hz to 20 kHz |
| Power Capacity | 175 W |
| Sensitivity | 89 dB SPL, 1 W, 1 m (3.3 ft) |
| Directivity Factor (Q) | 2.8 |
| Directivity Index (DI) | 4.5 |
| Impedance | 4 ohms |
| Crossover Frequency | 3 kHz |
| Polarity | Positive Voltage to + terminal causes outward low frequency cone motion |
| Enclosure | Polypropylene structural foam |
| Colors | Black or white |
| Dimensions (H x W x D) | (H) 387 mm x (W) 251 mm x (D) 229 mm (15.25 in x 9.875 in x 9 in) |
| Net Weight (each) | 4.5 kg (10 lbs.) |
| Shipping Weight (pair) | 11 kg (24 lbs.) |
| Note | Molded of dense polypropylene Accessory attachment points on rear of the enclosure are 1⁄4 x 20 threaded brass bushings |
| Maximum SPL (1m) | 111 dB continuous, 117 dB peak |
| Drivers | LF Driver: 165 mm (6.5 in) |
| HF Driver: 25 mm (1 in) | |
| Input Connectors | Spring-loaded terminals |
| Grille | Zinc-plated steel |
| Mounting Hardware | Mounting points -- no bracket included. |
| LF Driver | 6.5in (165mm) |
| Amplifier Power Rating | 175 W |
