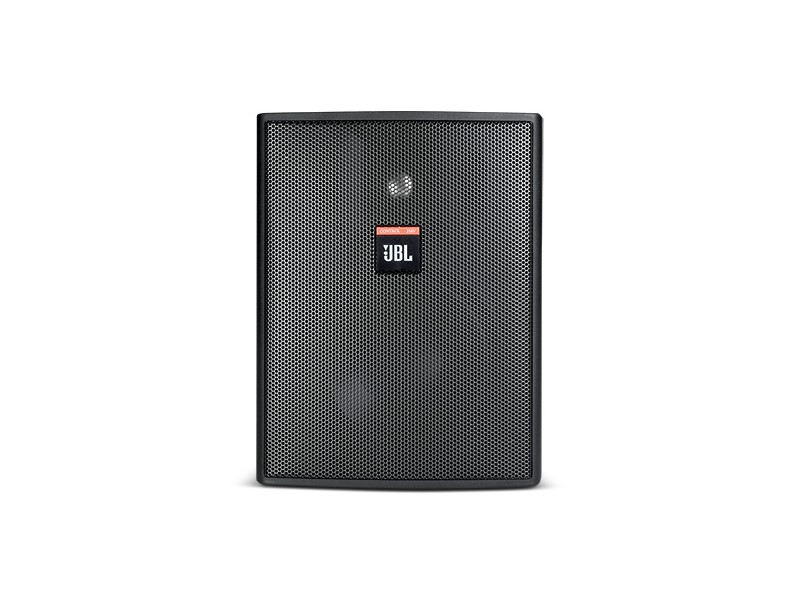

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.
Features
- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Stainless steel grill for harsh environments.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuard™ overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall® mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 100° x 100° high frequency horn.
| Frequency Range | 70 Hz - 23 kHz (-10 dB) |
| Power Capacity | 200 W Continuous Program Power; 100 W Continuous Pink Noise |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W |
| Sensitivity | 87 dB SPL, 1 W @ 1 m (3.3 ft) |
| Midrange (±1.5 dB, typical) | 130 Hz - 14 kHz |
| Coverage Angle | 100° x 100° |
| Maximum SPL (1m) | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Directivity Factor (Q) | 4.9 dB, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
| Impedance | 8 ohms |
| Minimum Impedance | 6.7 ohms at 230 Hz |
| Crossover Network | Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response |
| Drivers | LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| HF: 20 mm (.75 in) titanium coated PEI | |
| Enclosure | High Impact polystyrene |
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating |
| Input Connectors | Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG) |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black or white (-WH) |
| Rotation | Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight (each) | 4.0 kg (9 lb) |
| Shipping Weight (ea) | 9.0 kg (20 lb) per pair |
| Included Accessories | 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench |
| Optional Accessories | MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter. |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included. |
