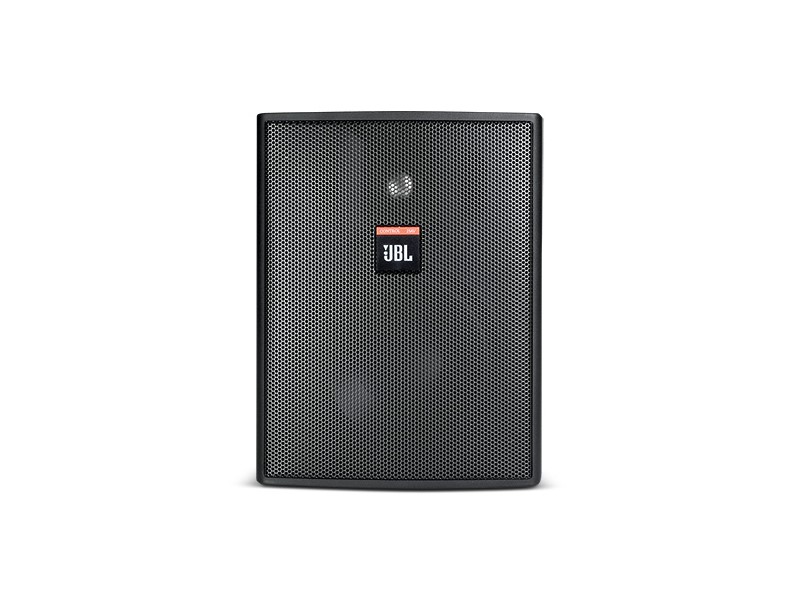

The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. This loudspeaker is EN 54-24 Compliant for life safety applications.
Features
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
- EN 54-24 Compliant for Life Safety Applications
- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Aluminum Grille with Polyester Powder Coating for enduring reliability.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuard™ overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall® mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 105° x 85° high frequency horn.
| Frequency Range (-10dB) | 90 Hz - 20 kHz |
| Power Rating | 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting) |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Sensitivity | 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap) |
| Coverage Angle | 110° x 85° (1kHz to 16kHz) |
| Directivity Factor (Q) | 4.8 (500 Hz to 4kHz) |
| Directivity Index (DI) | 6.5dB (500 Hz to 4kHz) |
| Maximum SPL (1m) | 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 89 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured |
| Drivers | 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| HF: 20mm (.75 in) titanium coated PEI | |
| Input Connectors | Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) |
| Enclosure | ABS, (materials rated UL94-5VA) |
| Grille | Aluminum with polyester powder coating |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating |
| Safety Agency | UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight (each) | 3.8 kg (8.4 lbs) ea |
| Shipping Weight | 8.6 kg (19 lbs) pair |
| Included Accessories | 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench |
| Optional Accessories | MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook. |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included. |
