JBL Professional | CONTROL 50S/T





JBL Control 50 Series 150 Watts Continuous Pink Noise 8" Compact Surface-Mount Sufwoofer with Transformer (Black)

CONTROL 50S/T

JBL Professional

Whatsapp for enquiry Email for enquiry

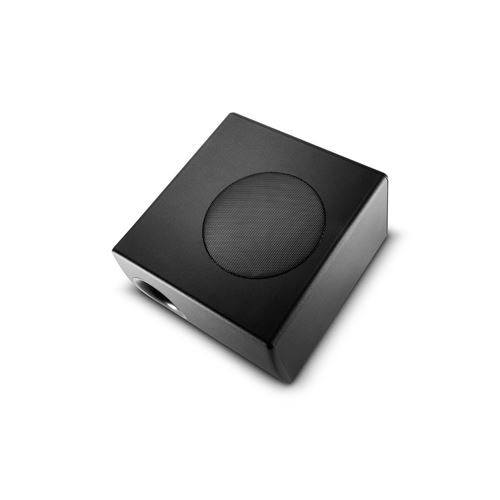

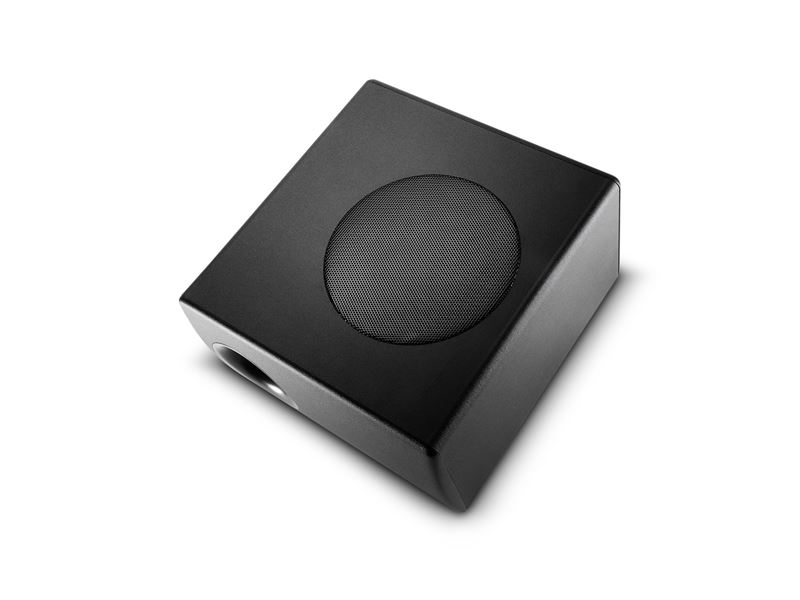

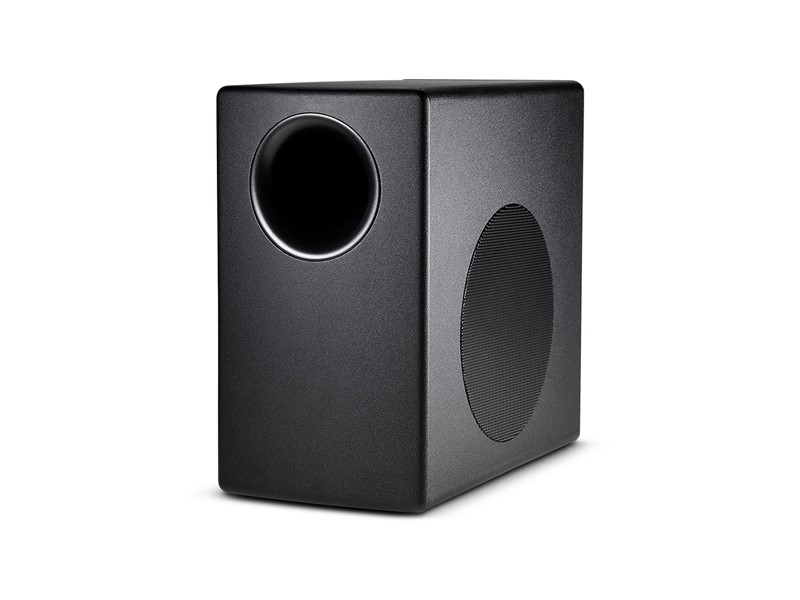

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.


Features
  • Full bandwidth 32 Hz – 20 kHz high fidelity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Versatility for either two or four satellite speakers per system
  • Available in black or white


    Frequency Range (-10dB) 32 Hz – 200 Hz
    Frequency Response (±3 dB) 50 Hz – 150 Hz
    Power Capacity 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
    Sensitivity 95 dB (near corner), 89 dB (center of wall)
    Maximum SPL (1m) 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
    Impedance 8 ohms (in bypass/thru mode)
    Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
    Drivers 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
    Input Connectors Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
    Enclosure Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
    Dimensions (H x W x D) Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
    Mounting Hardware 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
    Net Weight (each) 9.0 kg (20 lbs)
    Shipping Weight 10.2 kg (23 lbs)
    Included Accessories Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
    Grille Zinc-plated steel
