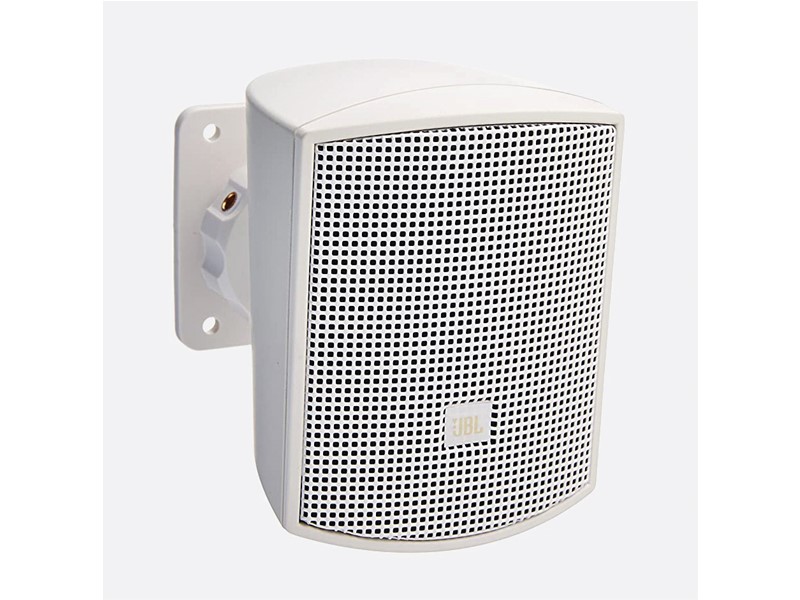

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Features
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
| Frequency Range (-10dB) | 140 Hz – 20 kHz |
| Frequency Response (±3 dB) | 180 Hz – 17 kHz |
| Power Rating | 50 Watts Continuous Program Power (2 hrs) |
| 25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs) | |
| Sensitivity | 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m) |
| Coverage Angle | 150° x 150° (omnidirectional) |
| Maximum SPL (1m) | 94 dB average, 100 dB peak |
| Impedance | 16 ohms |
| Drivers | 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension. |
| Input Connectors | Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2) |
| Enclosure | High impact polystyrene, painted zinc-plated metal grille. |
| Dimensions (H x W x D) | Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in) |
| Net Weight (each) | 0.7 kg (1.5 lbs) |
| Shipping Weight | 0.8 kg (1.8 lbs) |
| Included Accessories | Wall bracket (both speaker and wall parts), 2-pin locking connector. |
| Grille | Zinc-plated steel |
| Mounting Hardware | Included wall swivel ball bracket |
| Optional Accessories | Wall-mount ball-type bracket |
