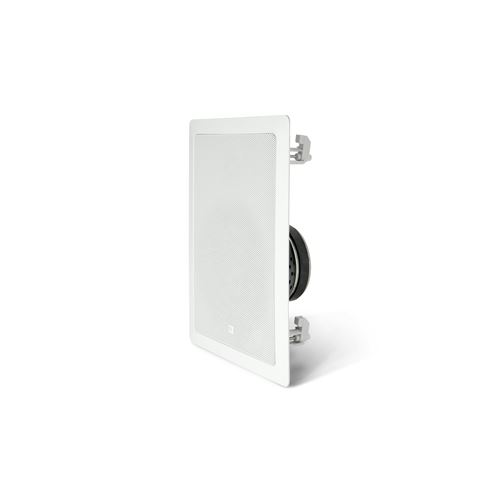

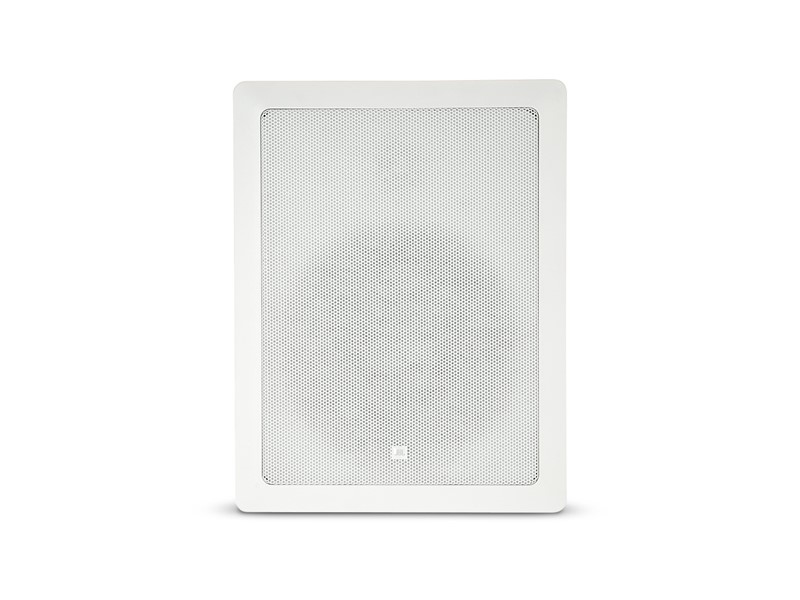

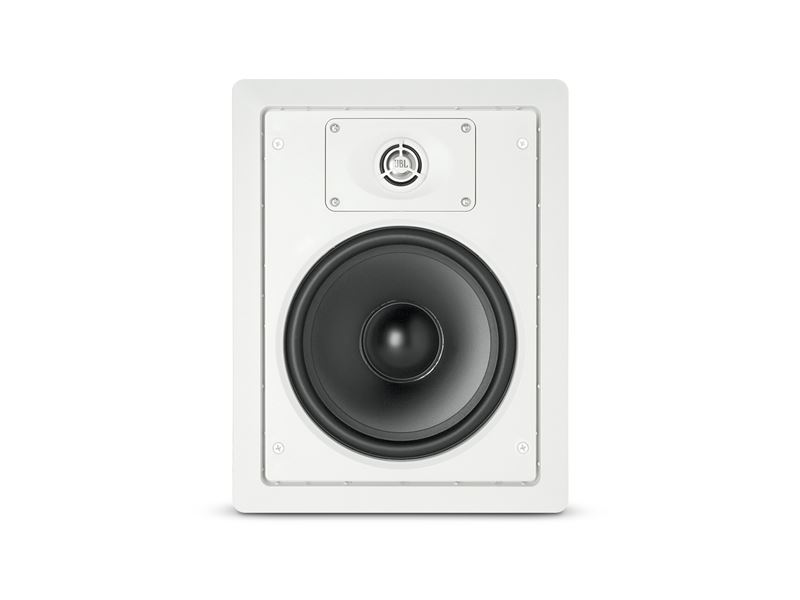

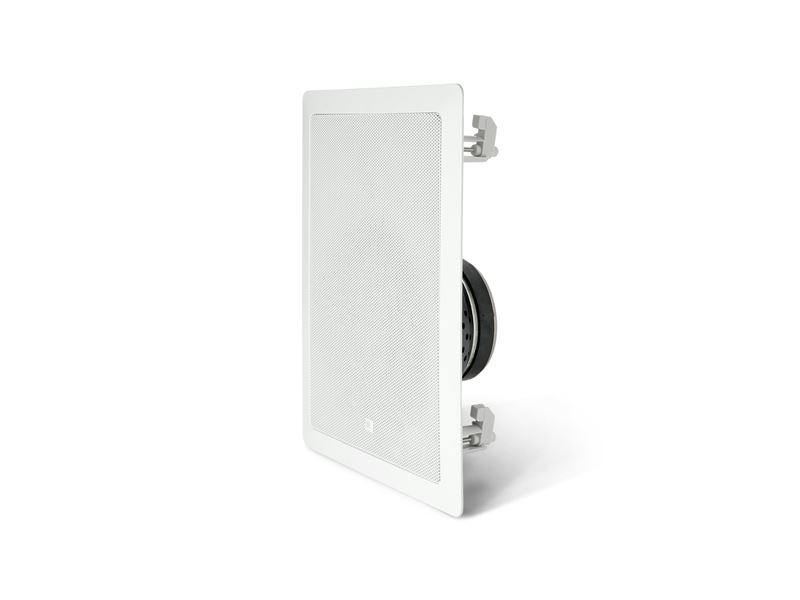

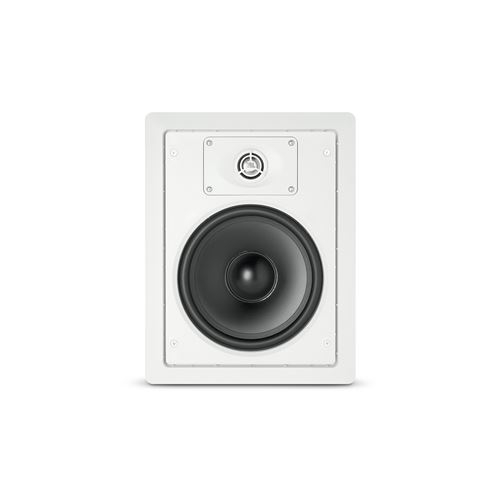

The Control 128W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
Features
- Components:
200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter. - High-slope crossover for natural midrange sound.
- Extended bandwidth performance of 30 Hz – 20 kHz.
- 60 W continuous (120 W program, 240 W peak)
Power handling (128 W).
| Active or Passive | Passive |
| LF Driver | 8" / 20 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround |
| HF Driver | 1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability |
| Frequency Range | 30 Hz to 20 kHz (-10 dB) |
| Power Capacity | Peak: 240 W |
| Continuous Program: 120 W | |
| Continuous Pink Noise: 60 W | |
| Sensitivity | 90 dB SPL (1 W, 1 m) |
| Impedance | 8 Ohms |
| Transformer Taps | Not applicable |
| Crossover | Low-Pass Filter to Woofer: 2nd Order (12 dB/Octave) |
| High-Pass Filter to Tweeter: 2nd Order (12 dB/Octave) | |
| Input | Screw-Down Euroblock Connector (14 AWG Maximum Wire Size) |
| Shielded | No |
| Air Gap | Optimum Air Cavity Behind Speaker: 1.4 to 2.8 ft³ / 40 to 80 L |
| Cutout Dimensions (H x W) | 11.9 x 8.9" / 30.0 x 22.5 cm |
| Maximum Wall Thickness | 1.3" / 3.2 cm |
| Dimensions | 13.1 x 10.1 x 4.3" / 33.4 x 25.7 x 11.0 cm |
| 4" / 10.2 cm Front of Wall to Back of Speaker | |
| Weight | 5.5 lb / 2.6 kg |
