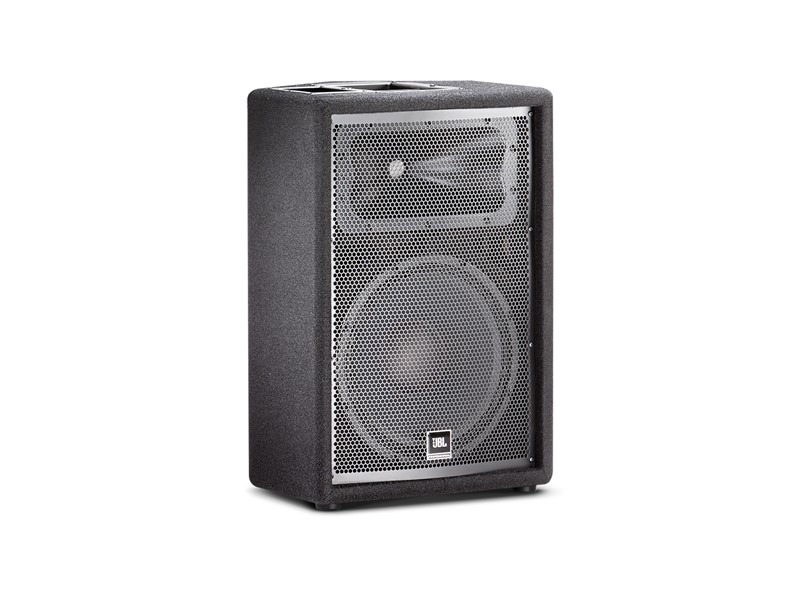

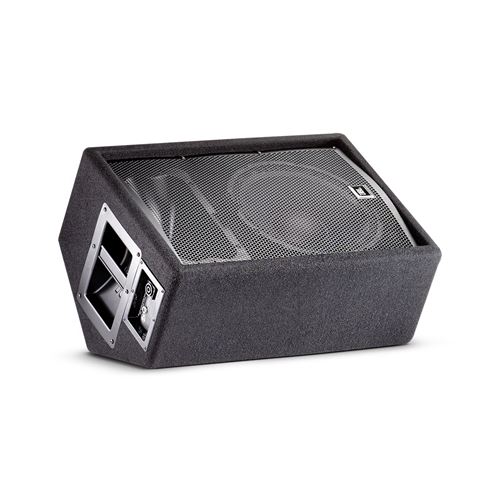

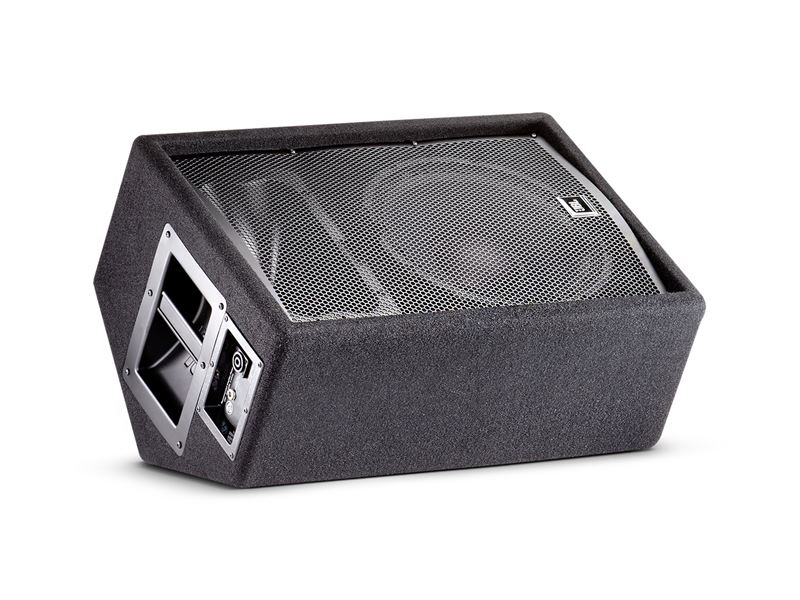

The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
Features
- JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.

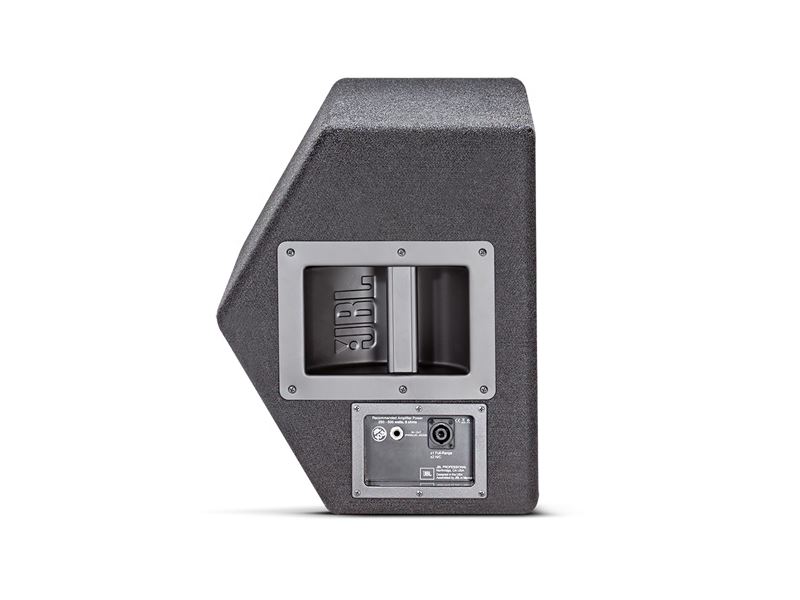

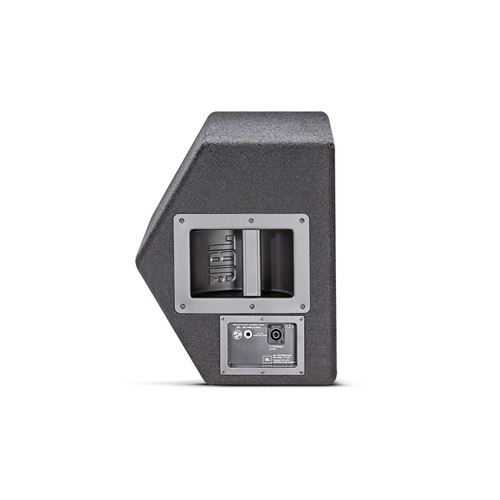

- Non-resonant, all-steel handles are used.
- Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
| Power Rating | 250 W / 1000 W |
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
| Frequency Response (±3 dB) | 80 Hz - 18 kHz |
| Sensitivity (@1m) | 98 dB SPL (1w/1m) |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
| Maximum SPL (1m) | 128 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.1 kHz |
| Dimensions (H x W x D) | 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in) |
| Weight | 19.5 kg (43 lb) |
| HF Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| LF Driver | JBL M112-8 |
| Inputs | Neutrik® Speakon® NL-4 (x1); .25 inTS phone jack (x1); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
