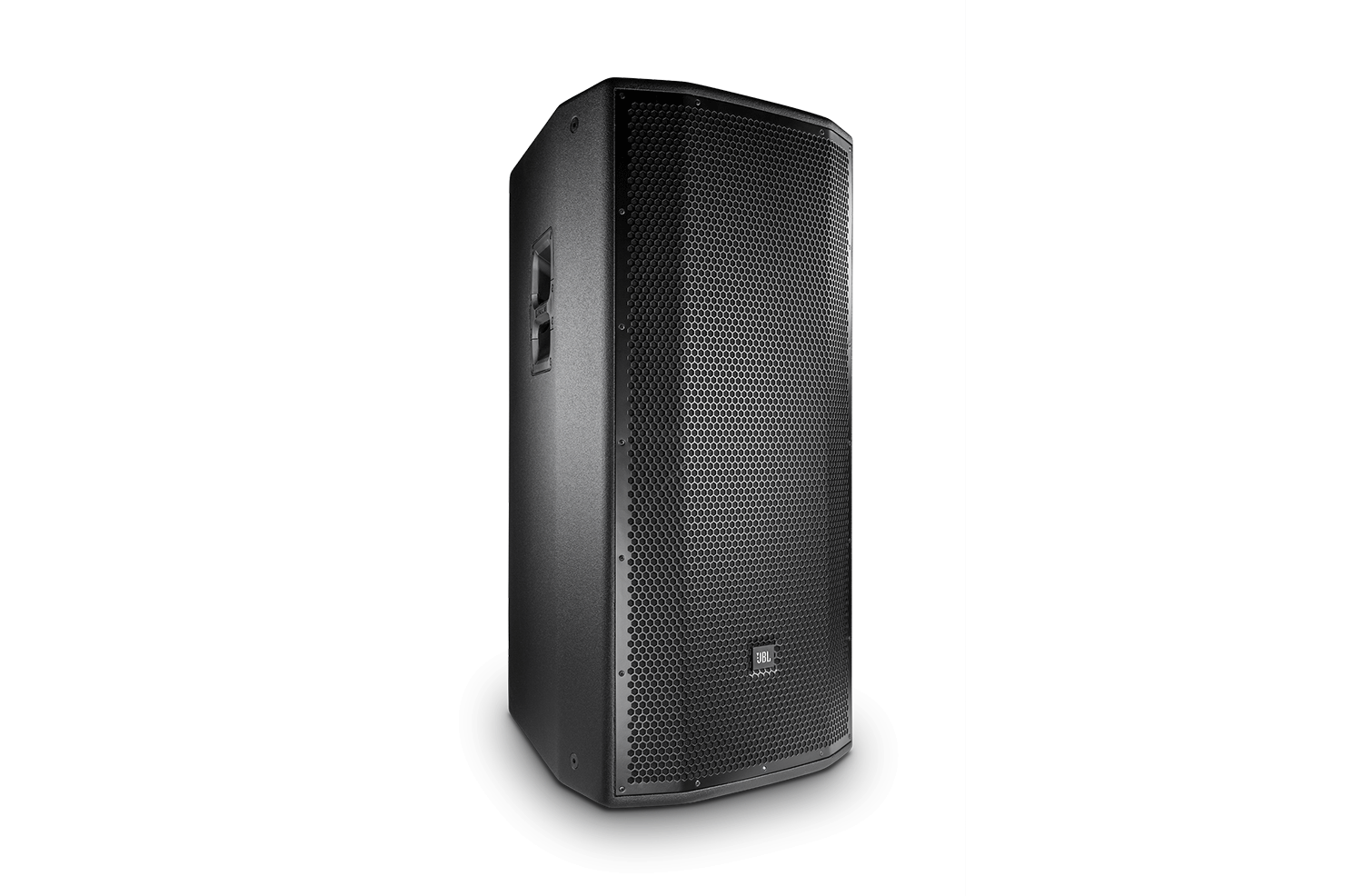

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor.
Features
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue

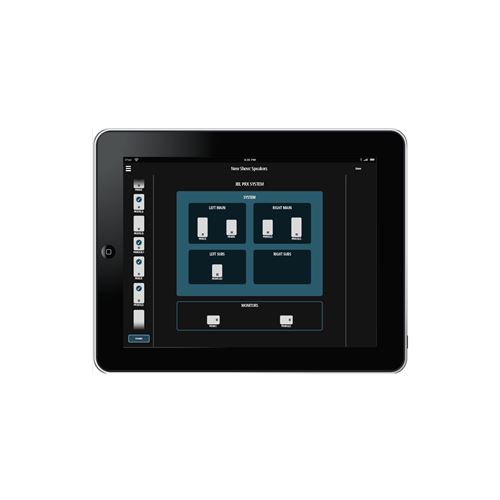

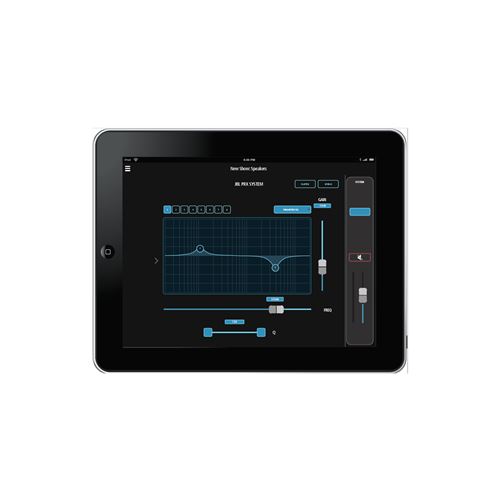

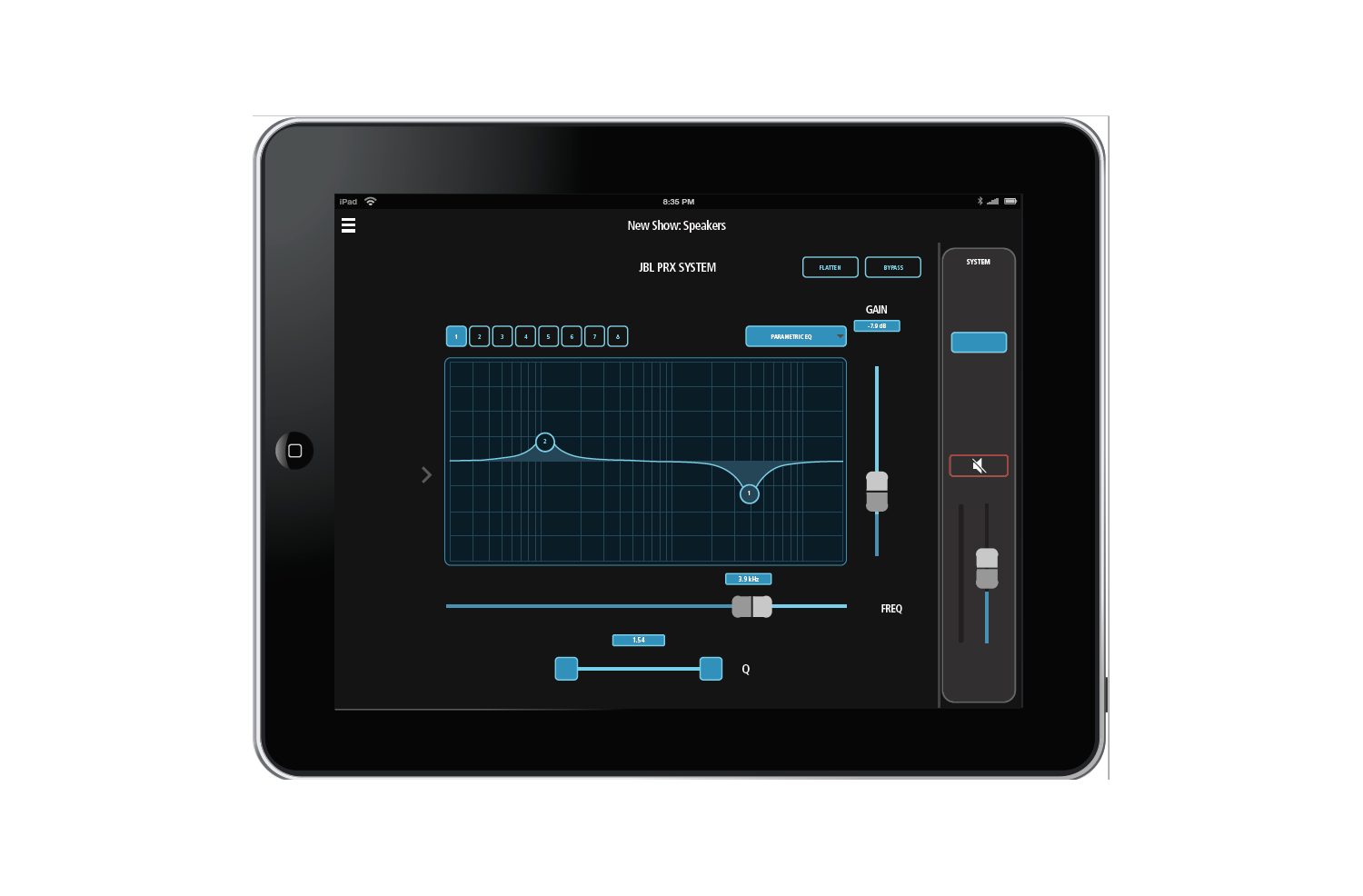

- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive® transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Integrated 12 x M10 Suspension Points
- Universal power supply for worldwide compatibility
- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
- Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
Applications
- This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

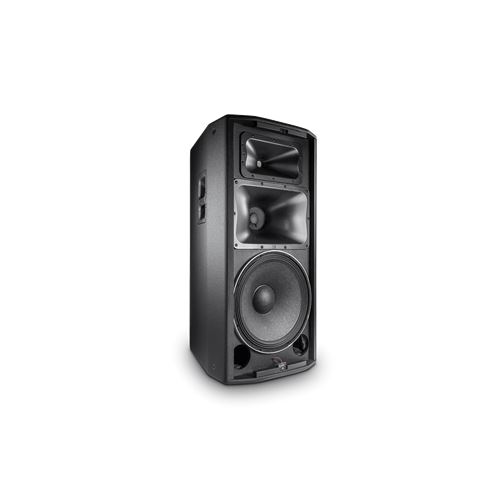

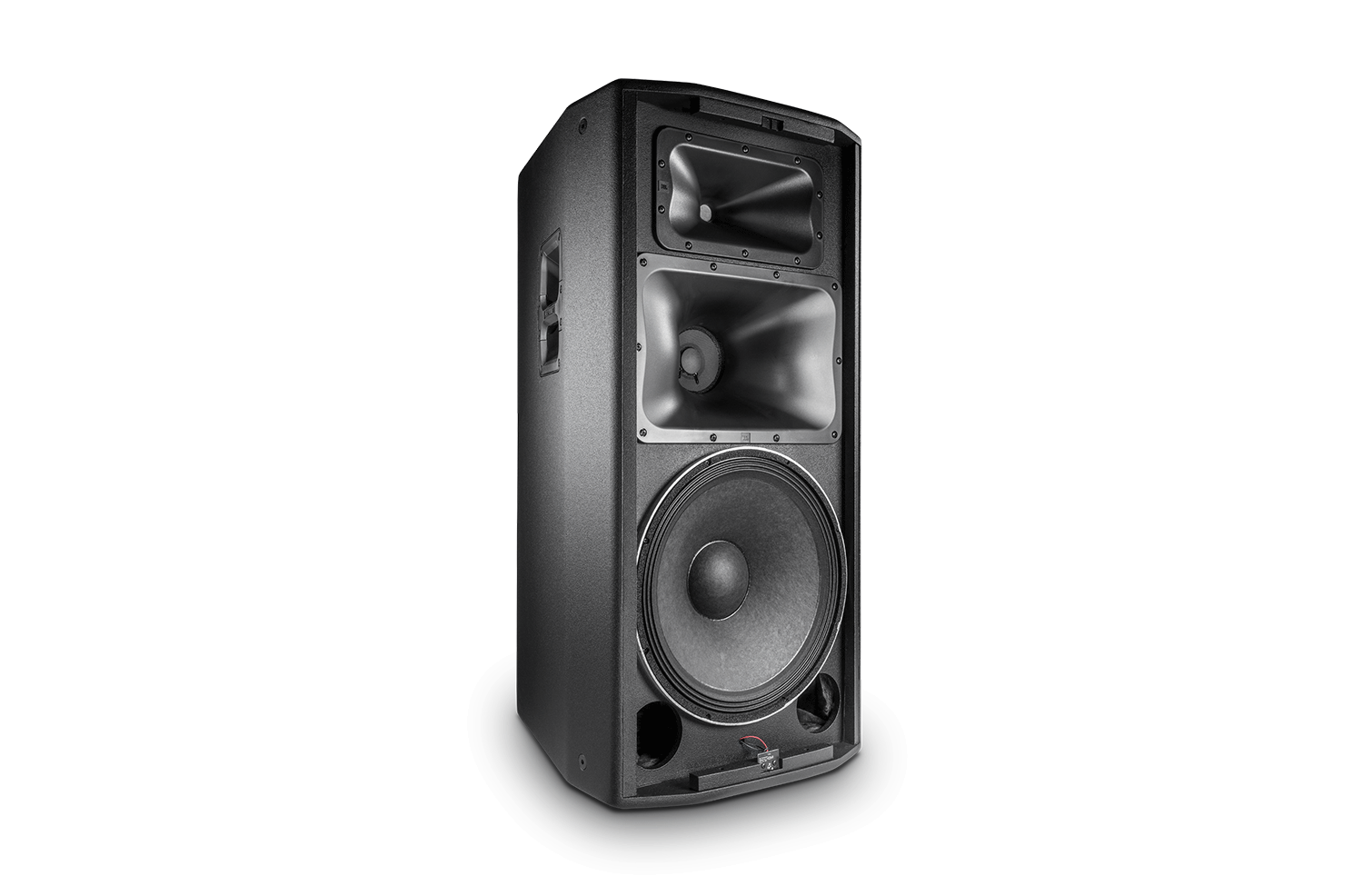

- The PRX835 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
- All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. The PRX835 feautres a standard 35mm pole cup that will work with most speaker poles and tripods. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. Each.

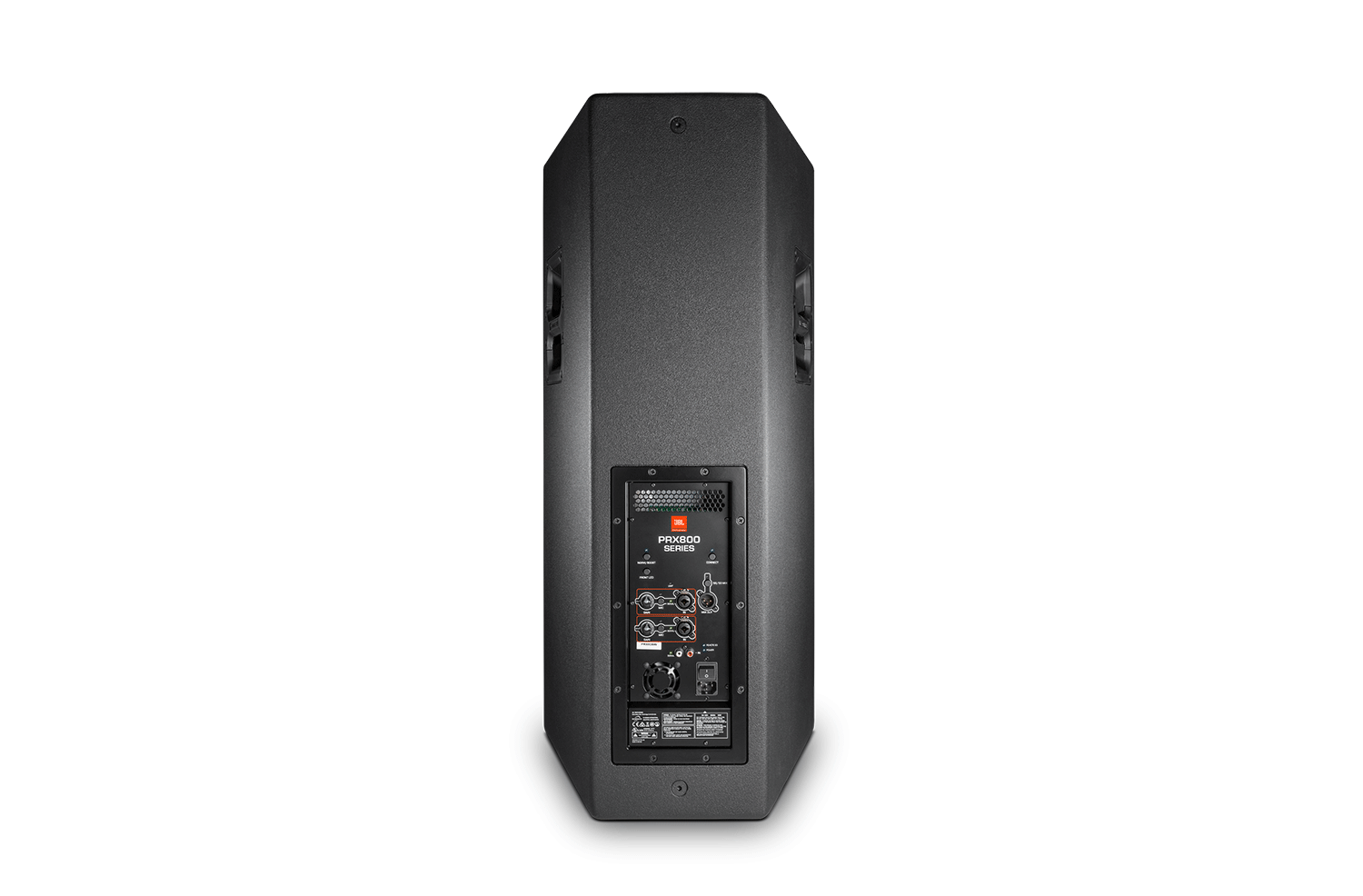

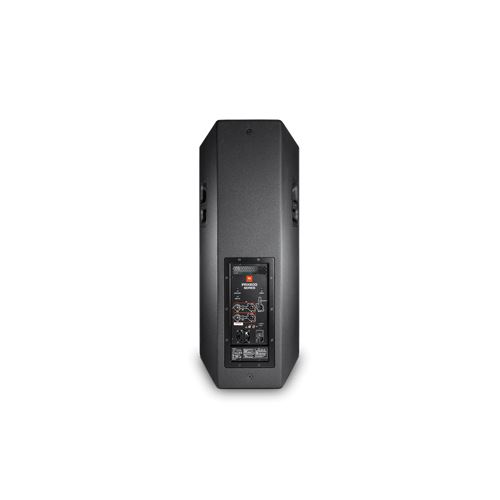

- The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.
| System Type | Self Powered 15”, three-way, bass-reflex |
| Maximum SPL Output | 138 dB peak |
| Frequency Range (-10dB) | Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz |
| Frequency Response (±3 dB) | Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz |
| Inputs | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
| Input Impedance | 20K Ohms (balanced), 10K Ohms (unbalanced) |
| Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio. |
| EQ | User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application. |
| Dynamic Control (Input) | dbx Type IV™ limiter circuit |
| Crossover Frequency | 580 Hz, 2.1 kHz |
| Design | Highly efficient Class-D amplifier |
| Power Rating | 1500W (750W x 2) |
| AC power input | 100V - 240V ~ 50/60 Hz |
| LF Driver | 1 x JBL 275G 380 mm (15 in) woofer |
| MF Driver | 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer |
| HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver |
| Coverage Pattern | 90° x 50° nominal |
| Directivity Index (DI) | 10.5 dB |
| Directivity Factor (Q) | 11.2 |
| Enclosure | Trapezoidal, 18 mm, Duraflex coated plywood |
| Suspension / Mounting | 12 M10 |
| Transport | 2 x integrated handles with injection molded backing cup |
| Finish | Obsidian DuraFlex™ finish |
| Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
| Dimensions (H x W x D) | 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in) |
| Net Weight | 32.38 kg (71.4 lb) |
| Gross Weight | 38.6 kg (85.0 lb) |
| Mic Inputs | 2 |
| Phantom Power | No |
| Effects | 25 parametric EQ's and speaker delay |
| Outputs | 1 x XLR (mix out) |
