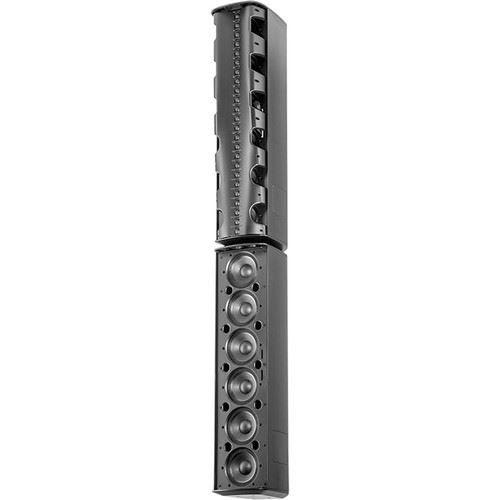

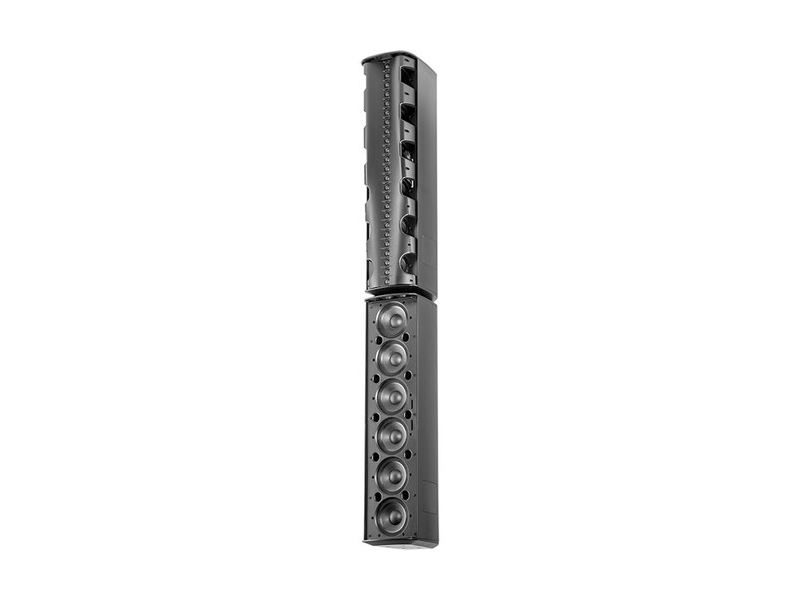

The black CBT 1000E Extension Loudspeaker from JBL features six 6.5" low-frequency drivers and a purpose-designed crossover network for use in the CBT 1000 + 1000E system. The drivers feature neodymium magnet motors with 2" diameter voice coils providing maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 0.62" long coil provides linear drive and high power handling of 1500W in a compact driver.

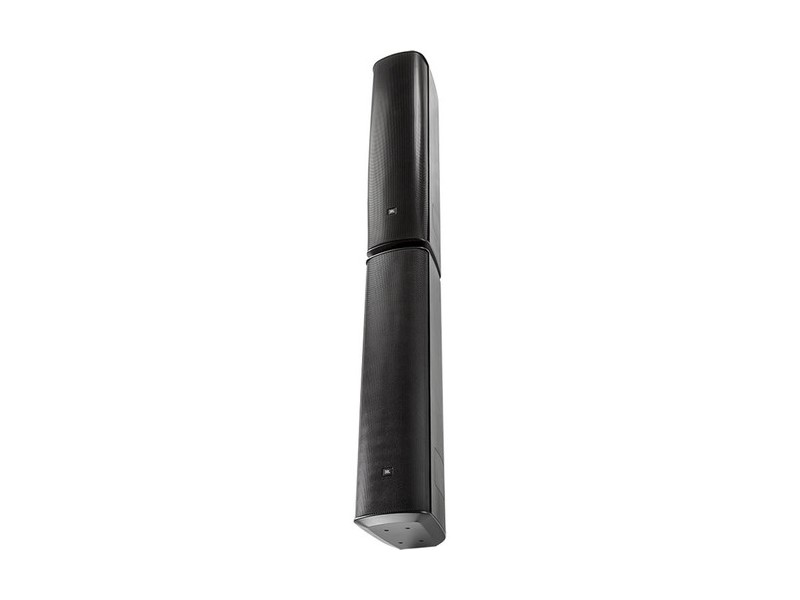

Each driver features damped blended surrounds and coated sealed paper cones. They are coated with diaphragm materials to provide moisture, UV, and salt resistance for outdoor capability. This extension speaker comes in a tough fiberglass reinforced ABS cabinet. Its thick heavy-duty aluminum grille allows for rust-free installation outdoors. A coupler plate is included for combining this extension speaker with the CBT 1000 array speaker (not included).
| Active or Passive | Passive |
| Frequency Response | 38 Hz to 650 kHz at -10 dB |
| Power Capacity | 1500 W (6000 W peak), 2 hours 1000 W (4000 W peak), 100 hours These values conform to IEC standard, full bandwidth pink noise with 6 dB crest factor |
| Maximum Sound Pressure Level (SPL) | 124 dB full space, 130 dB half-space (65 to 300 Hz) 2 to 6 kHz, calculated based on power rating and measured sensitivity, exclusive of power compression |
| Nominal Sensitivity | 2.83 V at 3.3' (1 m), average 2 to 6 kHz: 92 dB full space 98 dB half-space (65 to 300 Hz) |
| Impedance | Nominal: 8 Ohms |
| Crossover | Not Specified by the Manufacturer |
| Low Frequency Driver | 6 x 6.5" (165 mm) driver |
| Maximum Input Voltage | 100 V RMS (2 hours) 200 V Peak (when powered separately, not in parallel with CBT 1000) |
| Enclosure Material | Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille |

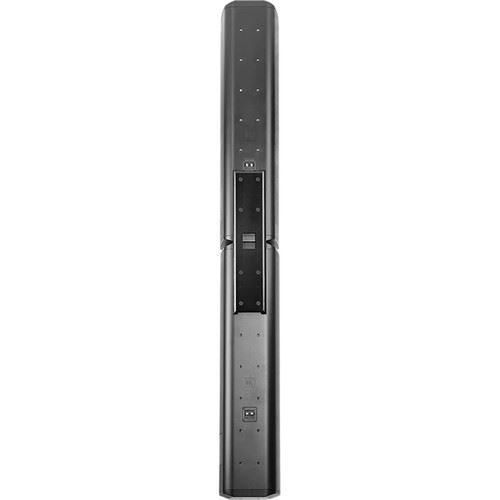

| Inserts | Mounting Holes: 14 x M8 insert on back panel (20mm deep) for use with swivel pan/tilt bracket(s) (not included) Conform to the industry standard rectangular 5 x 2.75" (127 x 70 mm) pattern for OmniMount and other compatible third-party brackets (not included) 4 x M8 insert on top 4 x M8 insert on bottom of cabinet end-caps |
| Input Connections | Not Specified by the Manufacturer |
| Outdoor Use | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature and UV, ASTM G85 for acid-air/salt-spray (200 hours) |
| Finish | Black (RAL9004) |
| Dimensions | 9.9 x 40.2 x 11.6" (25 x 102 x 29 cm) |
| Weight | 44 lb (20 kg) |
