JBL SRX900 Series (LF) 400 Watts RMS + (HF) 200 Watts RMS Dual 10" Powered Line Array Speaker

SRX910LA

JBL Professional

Whatsapp for enquiry Email for enquiry






The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

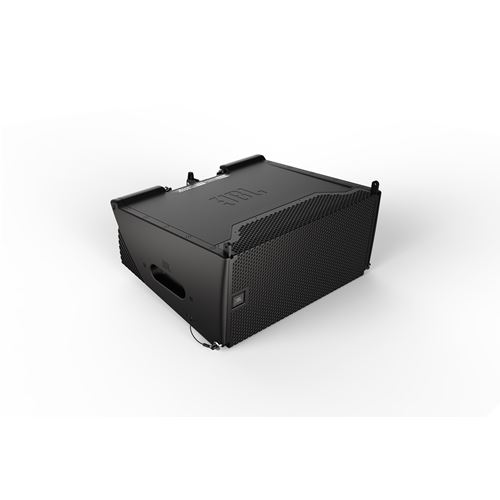

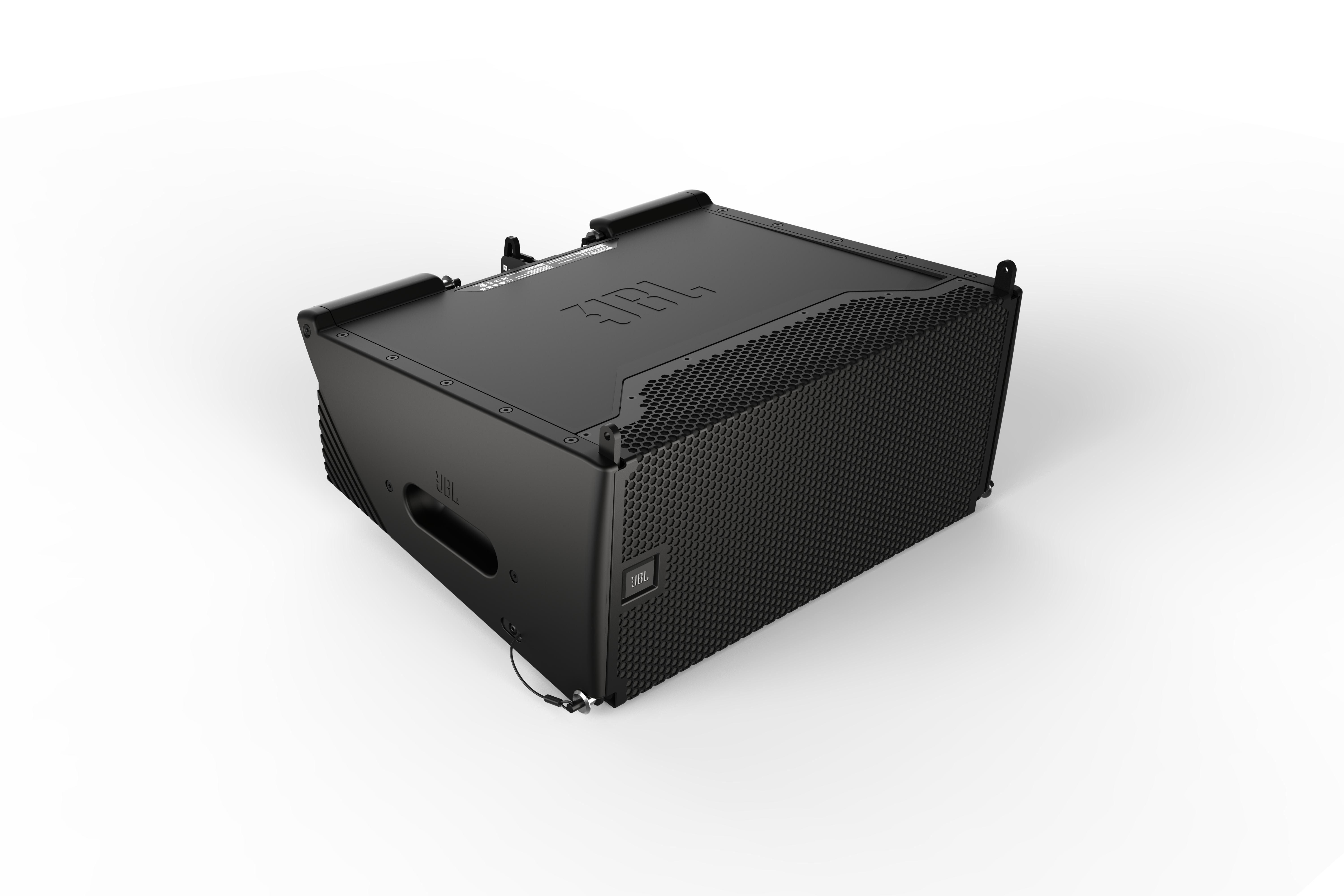

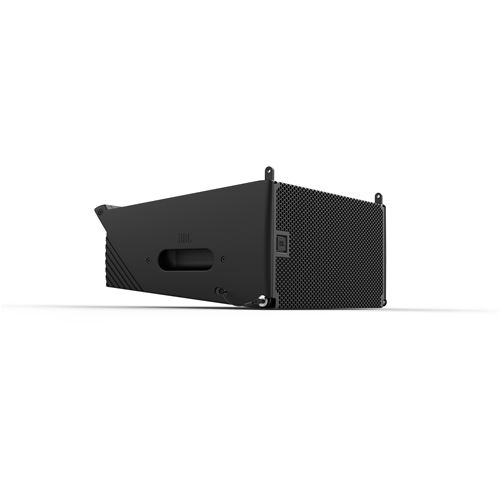

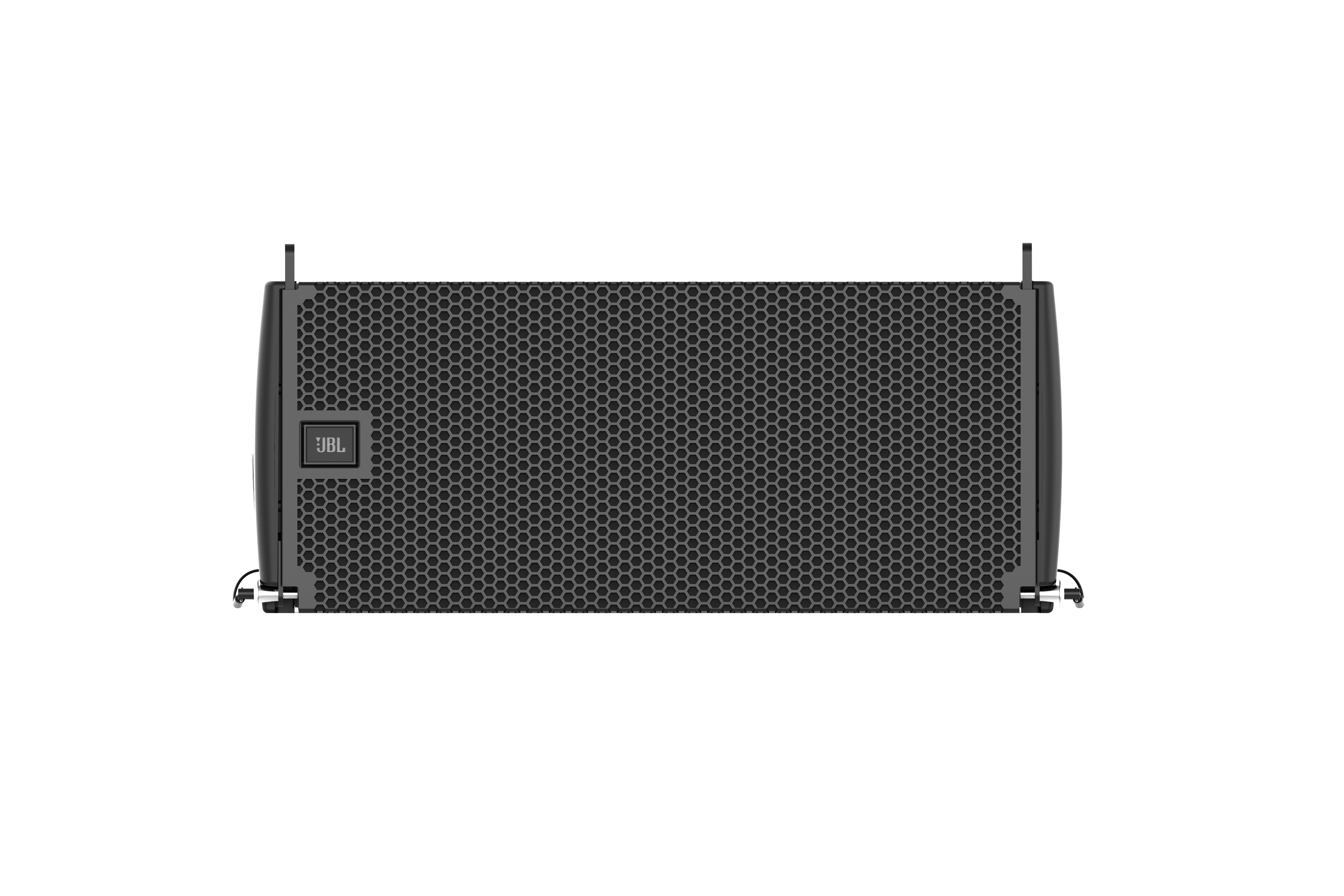

The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.

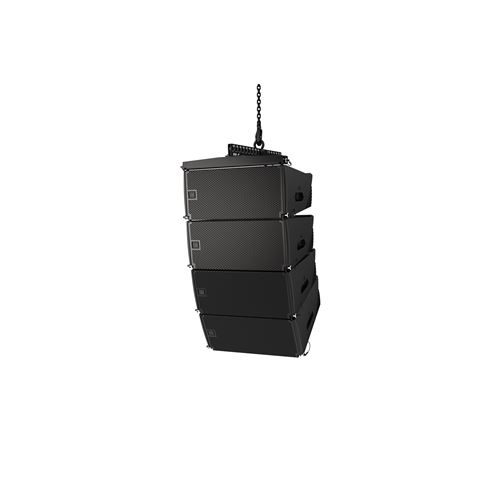

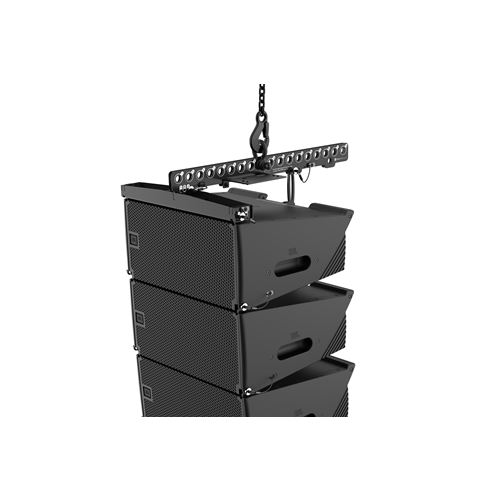

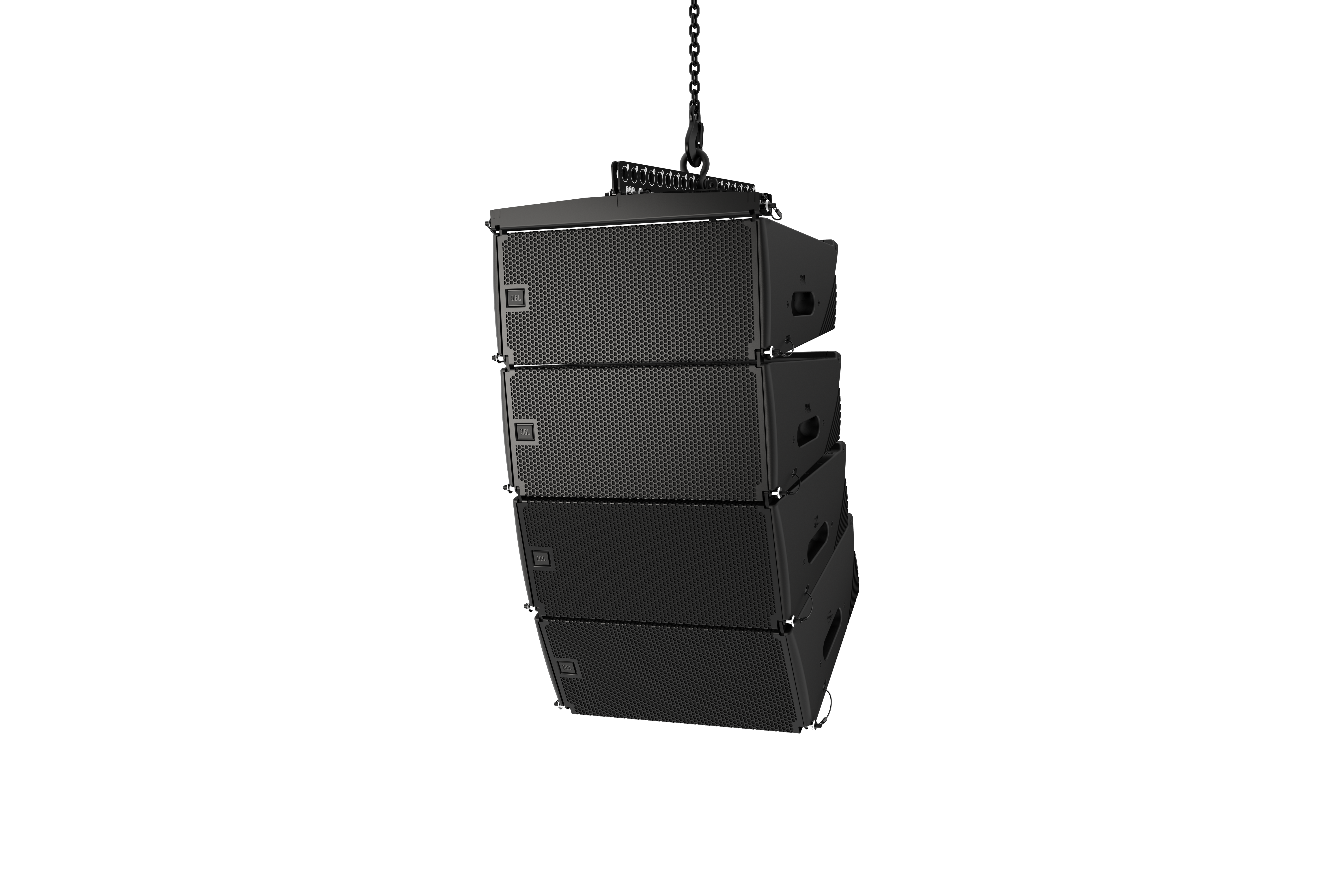

An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.


Features

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

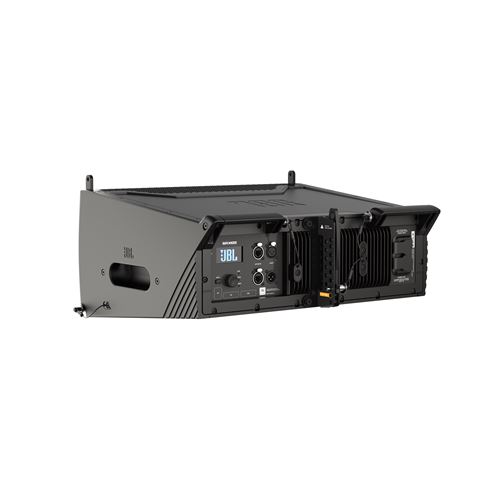

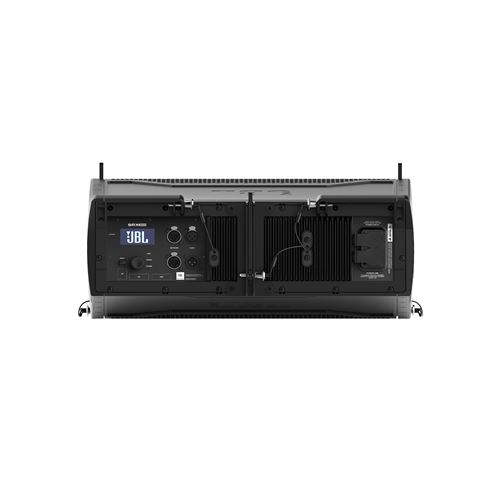

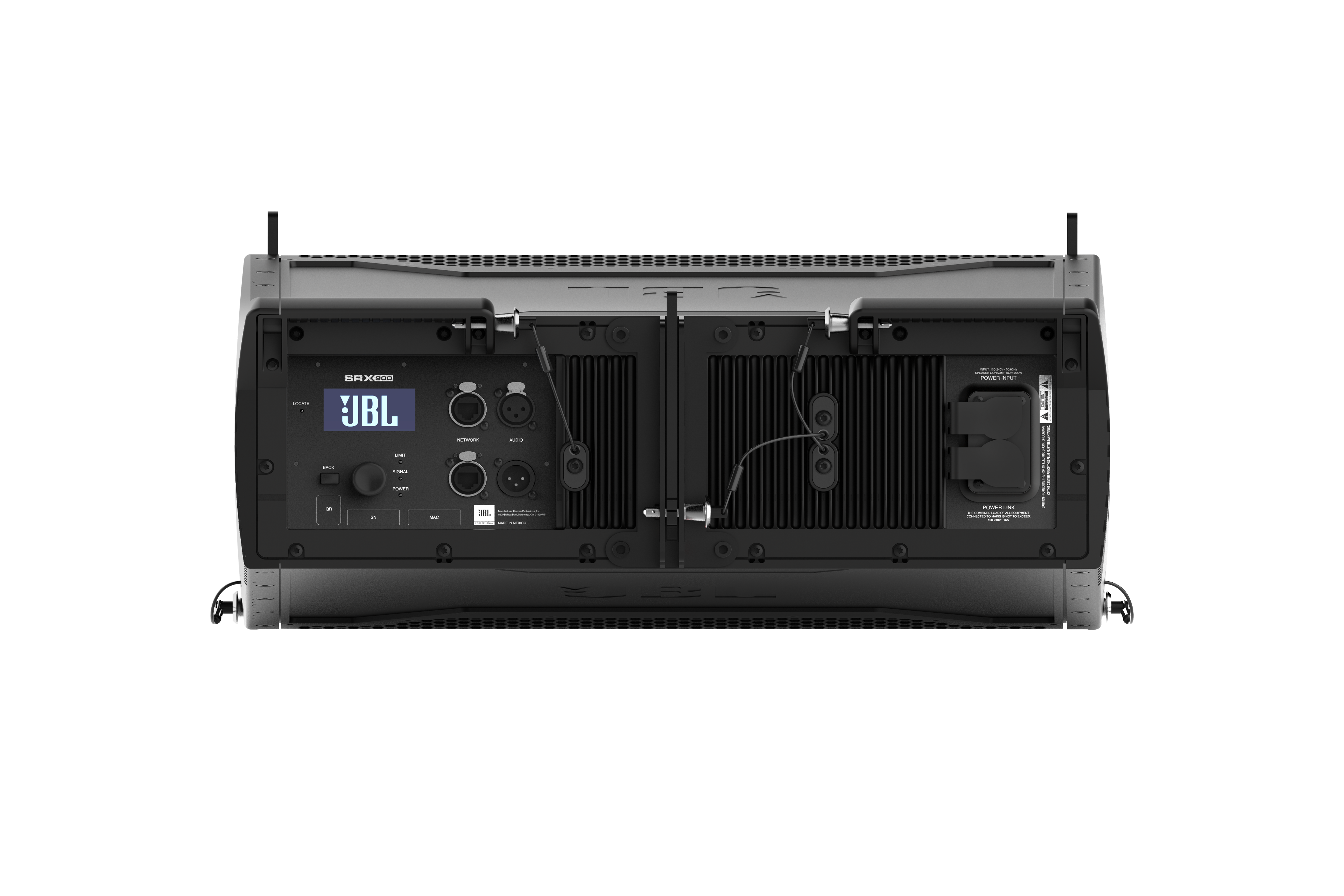

  • Rear-panel LCD provides complete access to control features
  • Reinforced composite loudspeaker enclosures

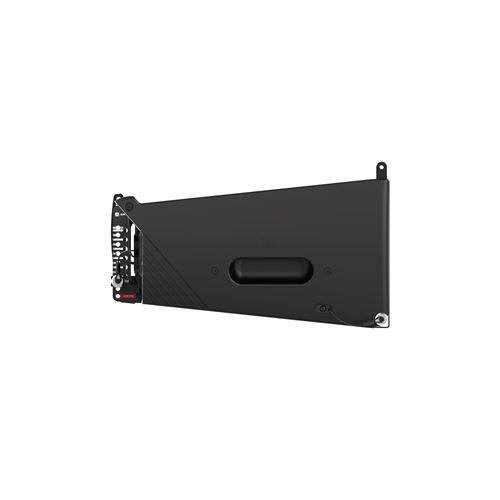

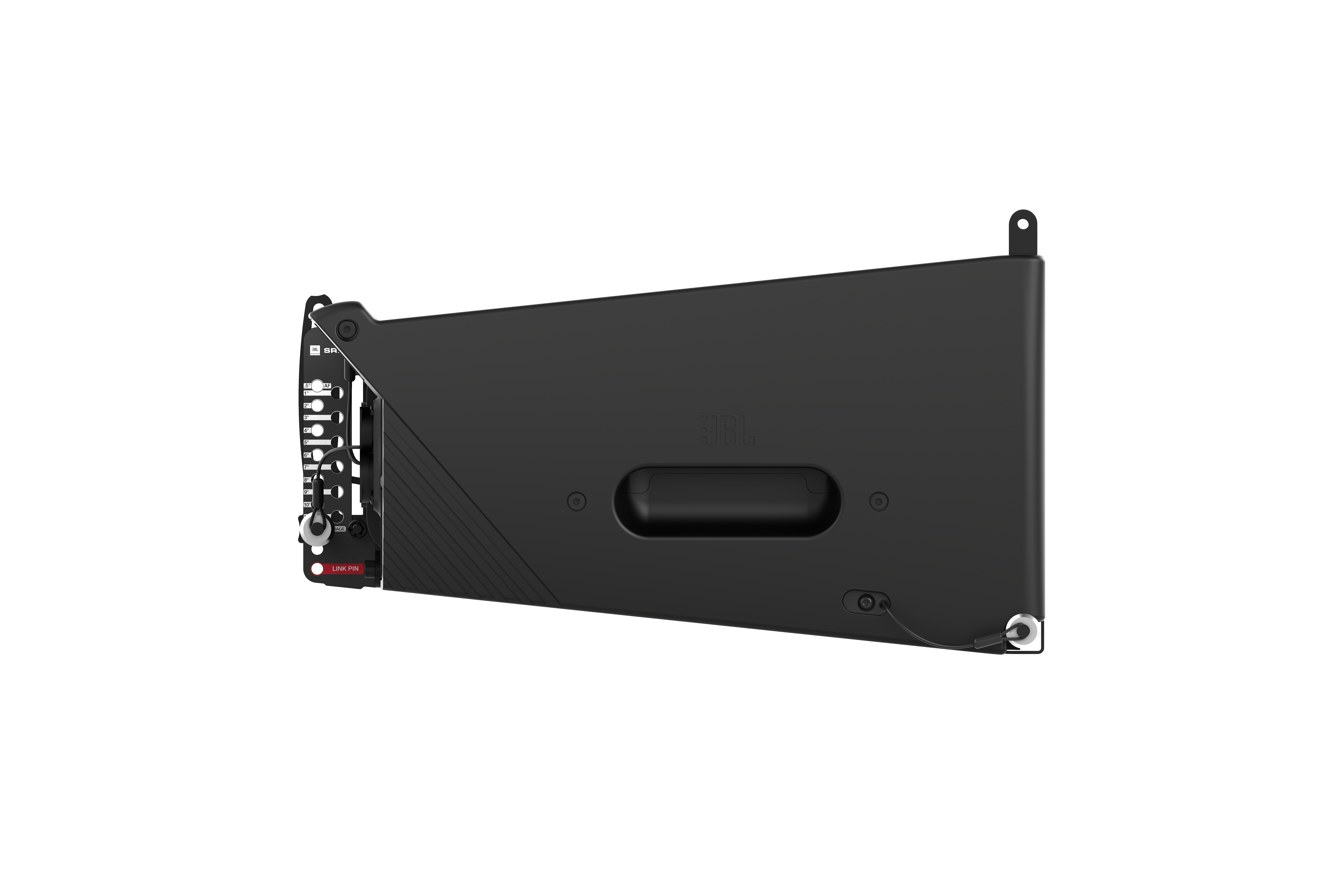

  • Innovative three-point rigging system


Frequency Range (-10dB) 53 Hz-19 kHz (array preset)
Coverage Pattern 105 degrees nominal (400 Hz-16 kHz)
Maximum SPL 135 dB
System Type Line Array, two-way active
Amplifier Design Class-D
Continuous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
HF Driver (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
Enclosure Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds

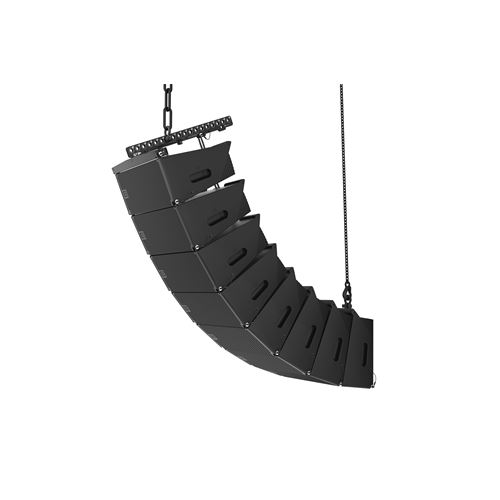

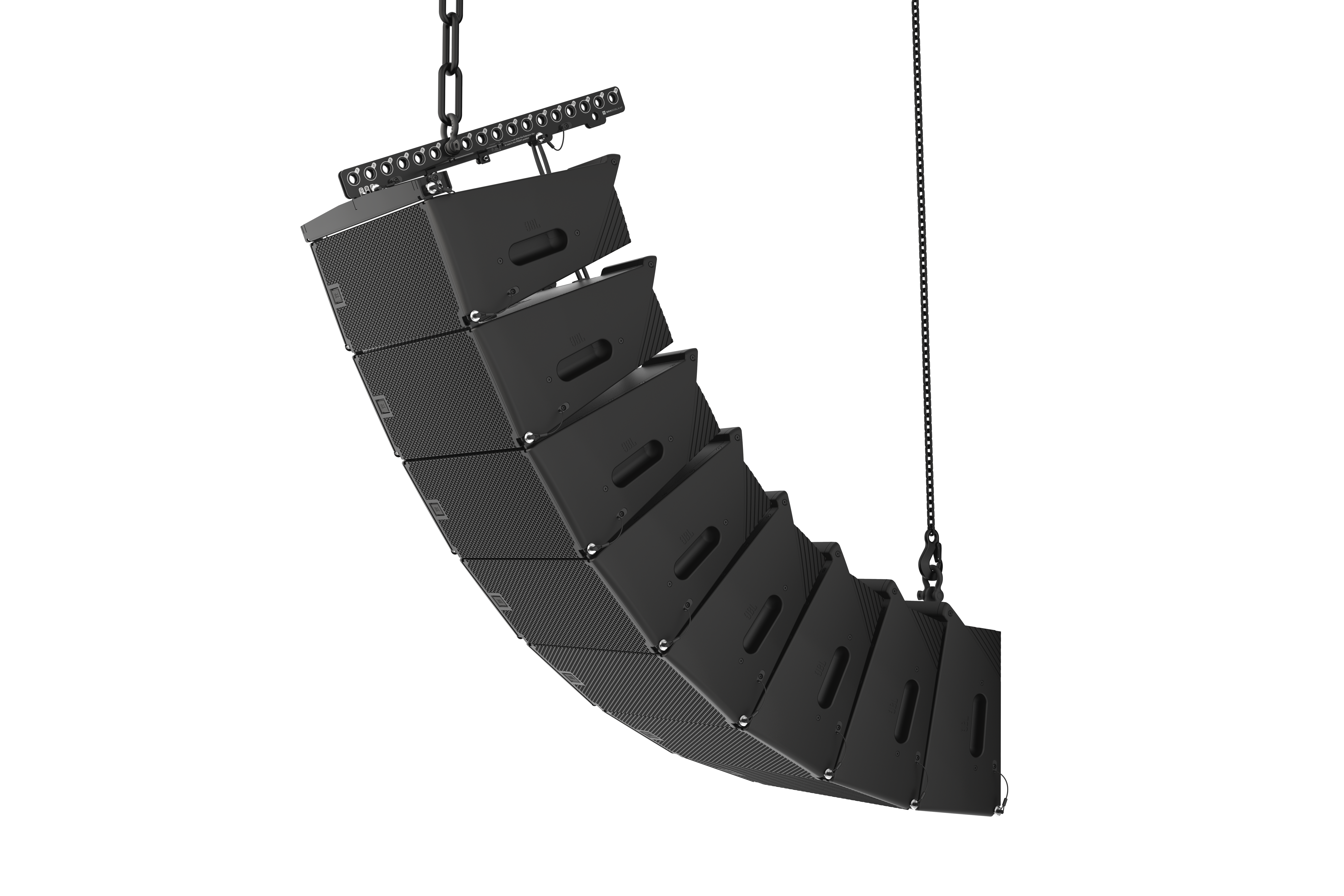

Inter-Enclosure Angles 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Dimensions (H x W x D) 305 mm x 716 mm x 519 mm
(12.0 in x 28.2 in x 20.5 in)
Net Weight (each) 26.7 kg (59 lbs)
