The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

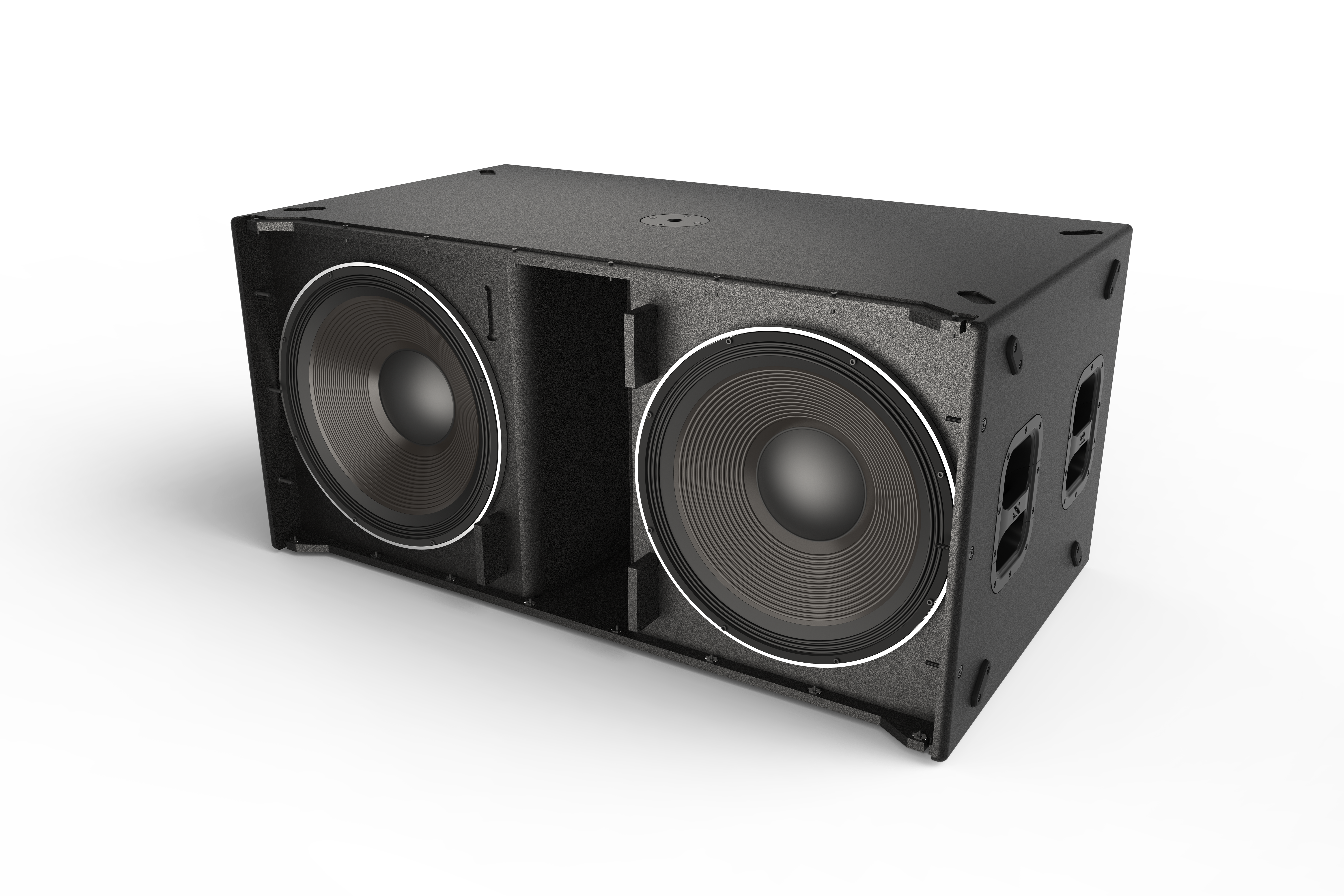

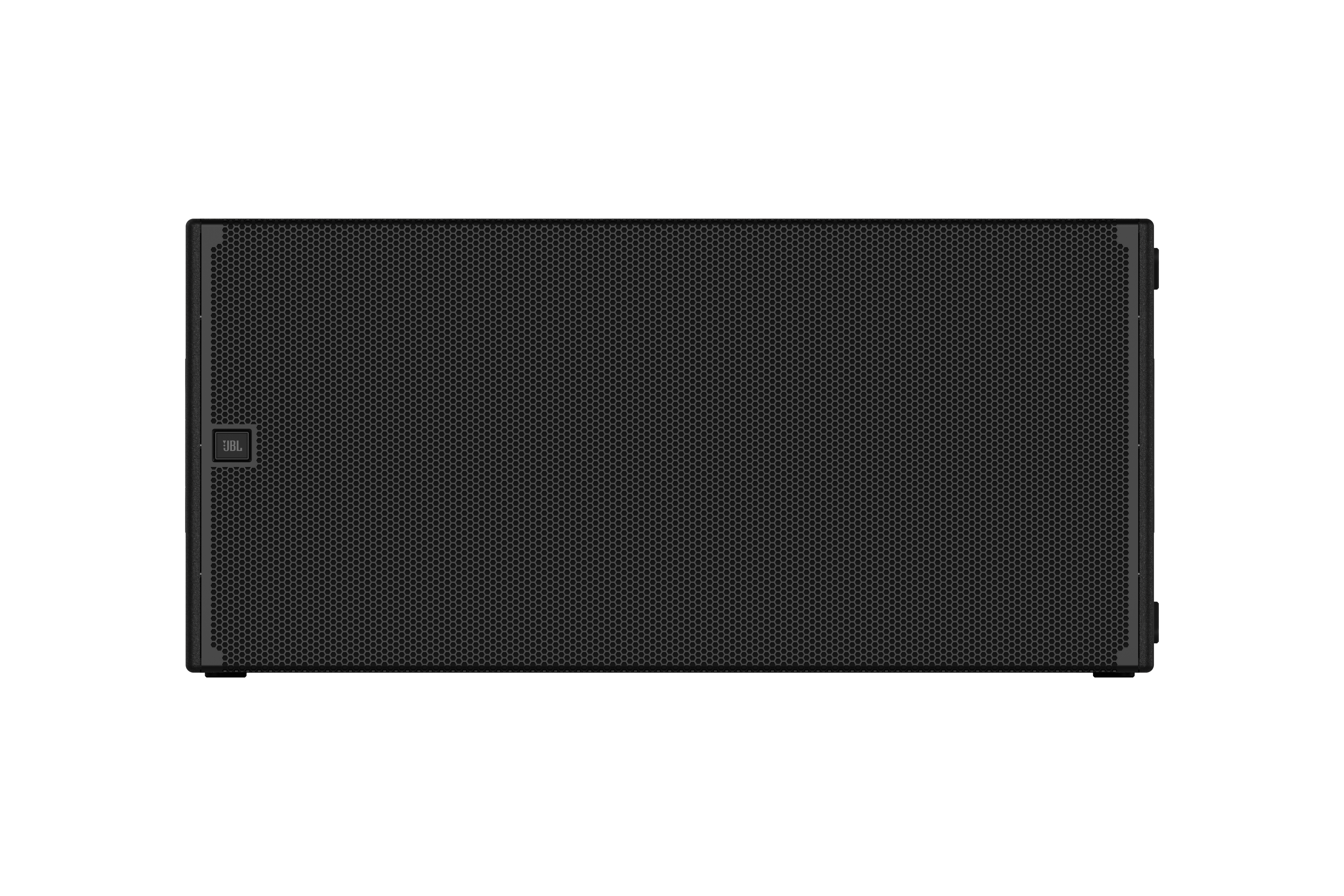

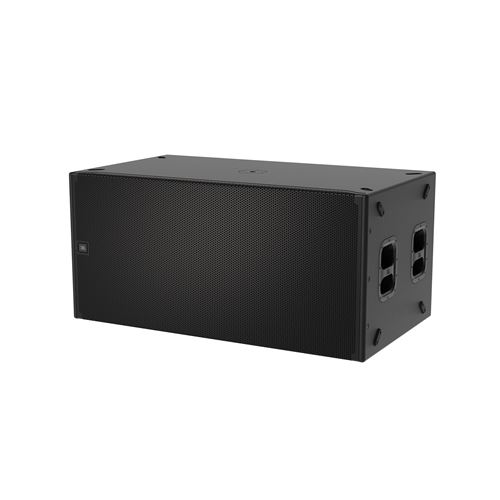

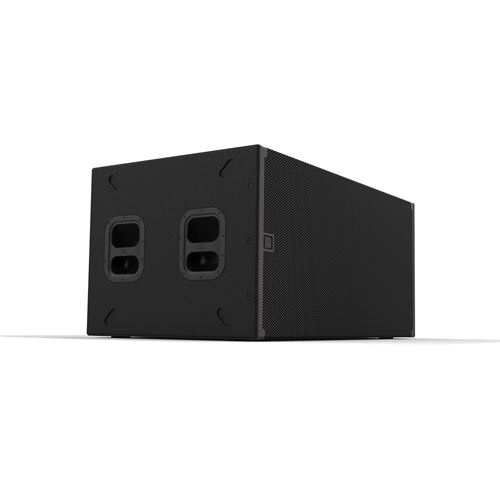

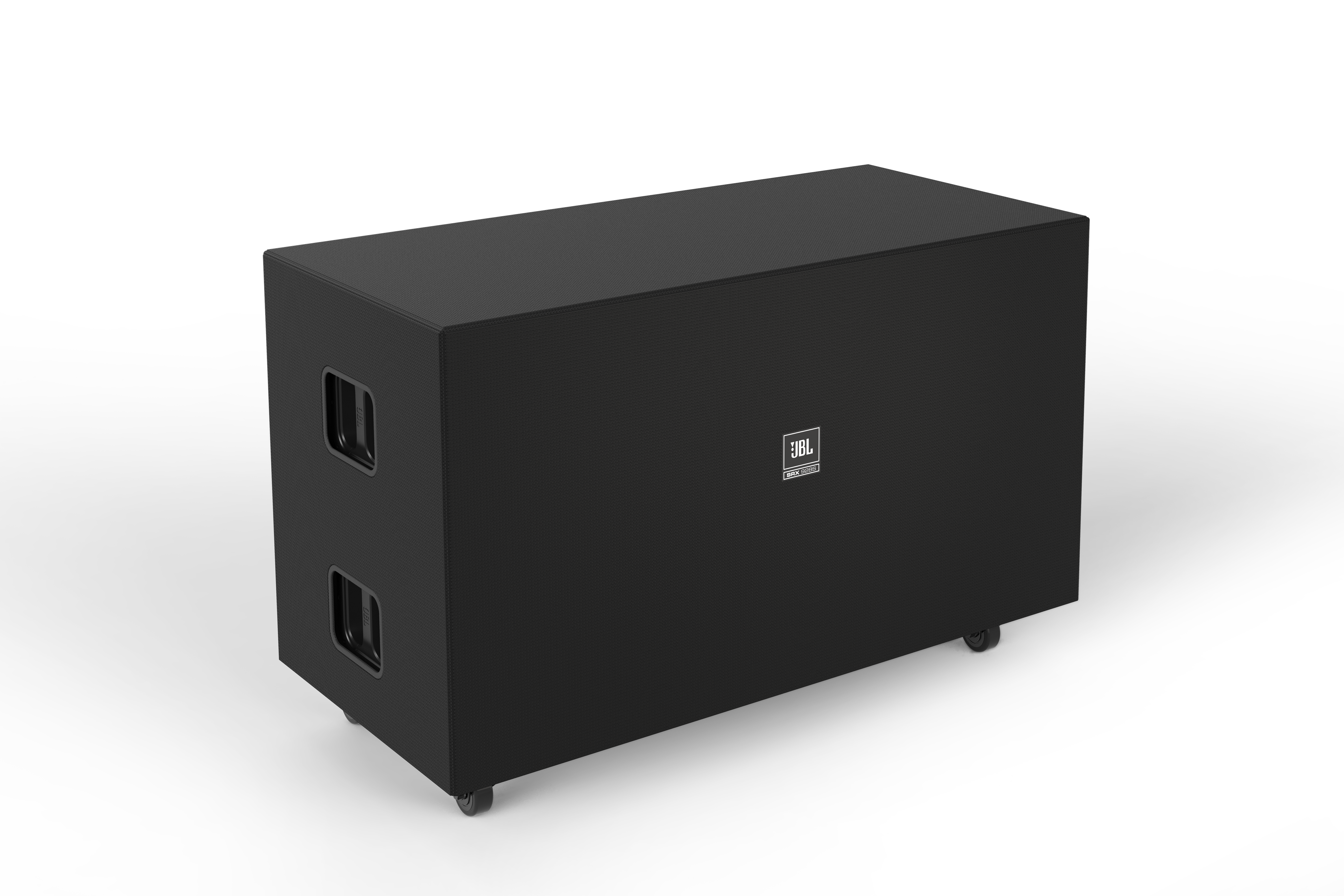

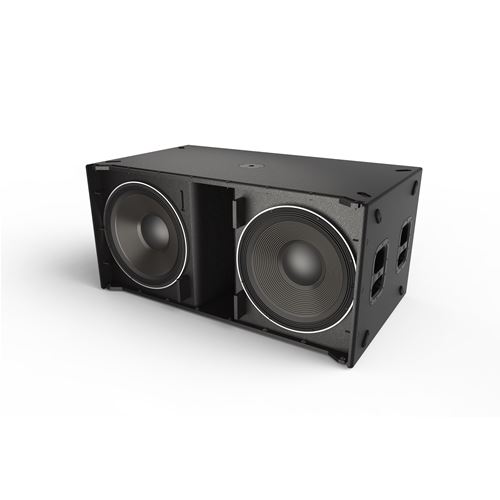

The SRX928S is a dual 18-inch active subwoofer designed to complement SRX900 full-range sound reinforcement systems. The sub¬woofer houses two JBL 2279-1 18-inch woofers, featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.
Built-in DSP and amplification offer a plug and play experience, while providing consistency and optimum performance anywhere in the world. The SRX928S incorporates a large central low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.
Features
- High-performance, high-density system solution in a truck-pack friendly format
- High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
- Built-in, passively cooled Class D amplification with a universal power supply
- Dual Ethernet ports with Neutrik etherCON connectors
- Supports HARMAN HControl Ethernet
- User-controllable DSP
- LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

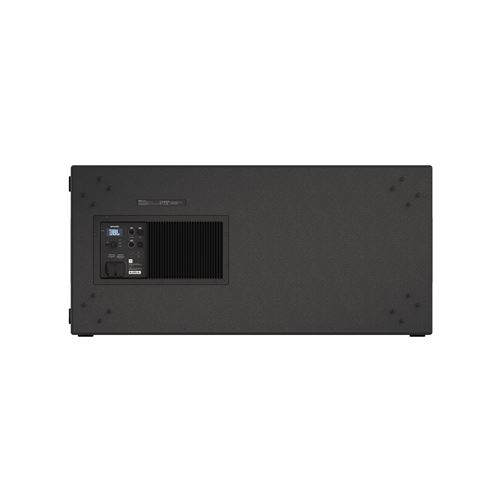

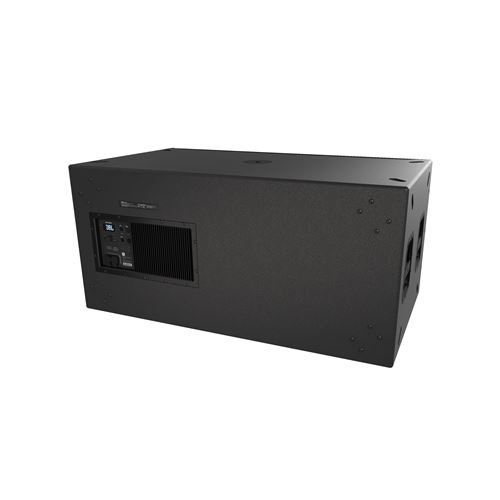

- Rear-panel LCD provides complete access to control features
- Reinforced 18mm plywood enclosures
Frequency Range (-10dB) | 31 Hz-100 Hz (Preset: 80 Hz) |
Coverage Pattern | Omnidirectional or Cardioid |
Maximum SPL | 140 dB (Preset: 80 Hz) |
System Type | Active Subwoofer |
Amplifier Design | Class-D |
Continuous Power Rating | 1,100 Watts |
LF Driver | (2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive® |
Enclosure | 18 mm plywood, Black DuraFlex finish, four integral recessed handles |
Dimensions (H x W x D) | 565 mm x 1,205 mm x 681 mm |
(22.2 in x 47.4 in x 26.8 in) | |
Net Weight (each) | 70.3 kg (155 lbs) |
