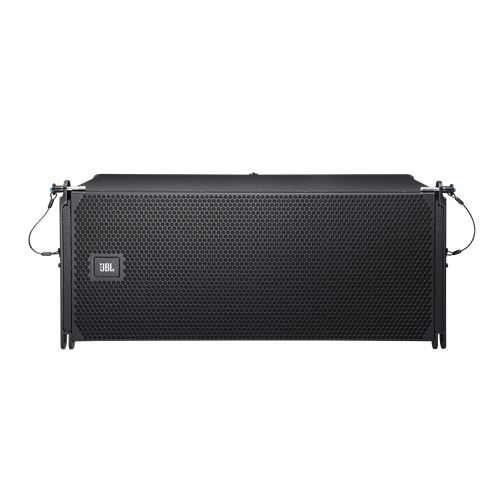

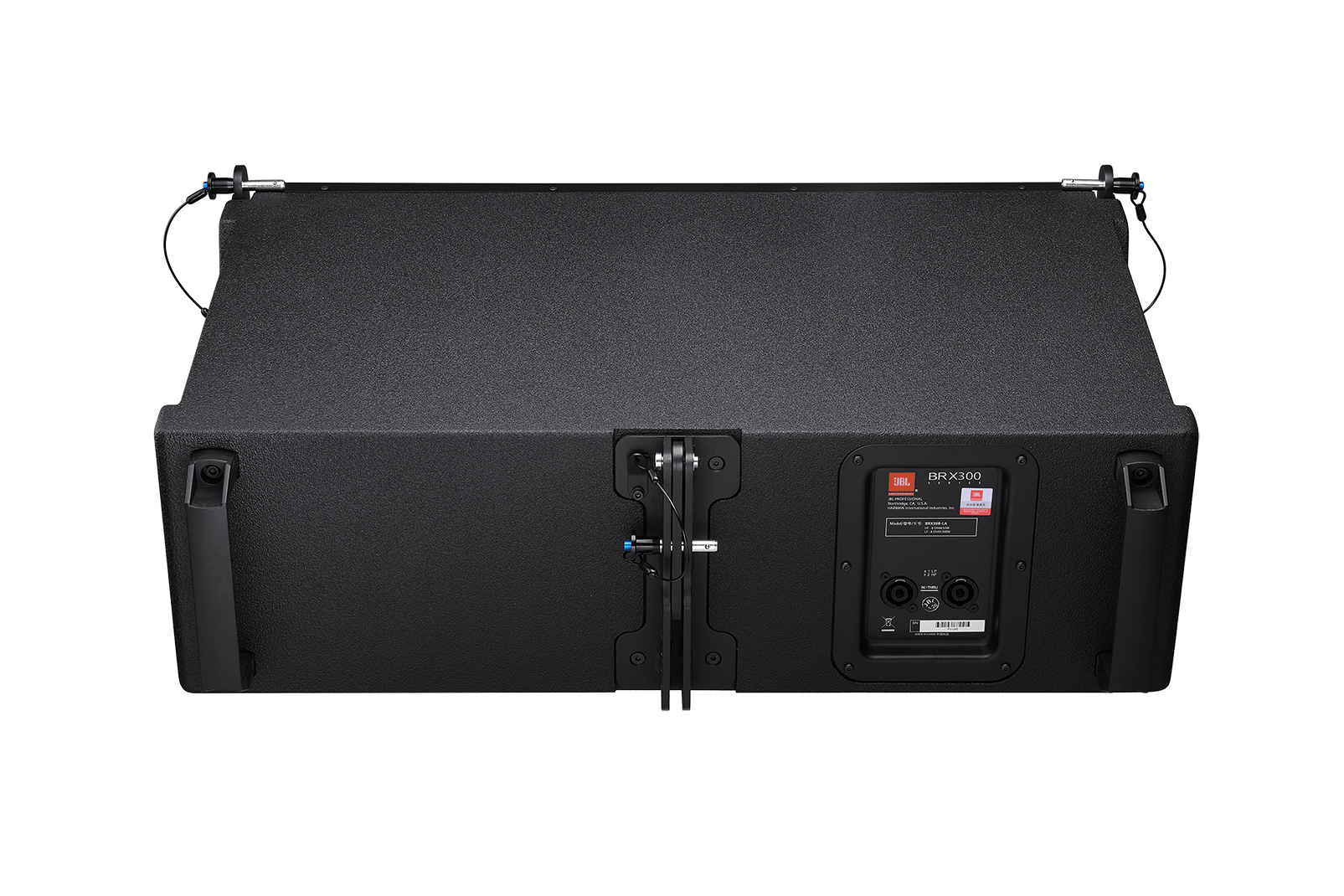

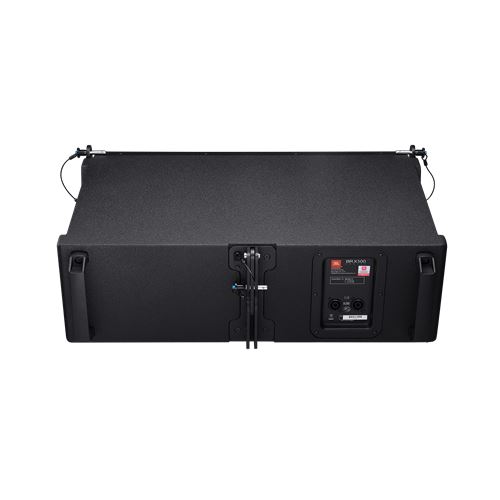

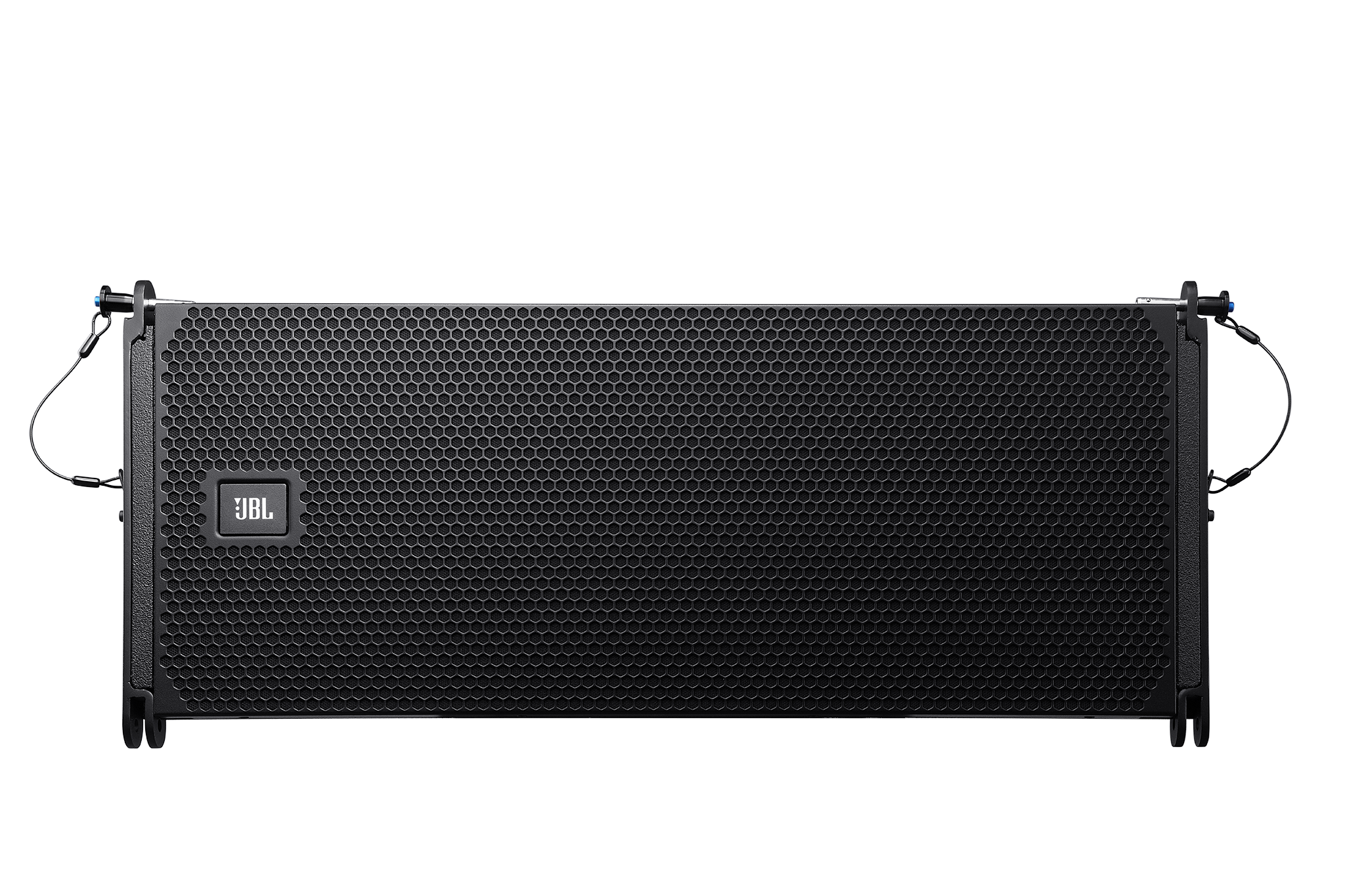

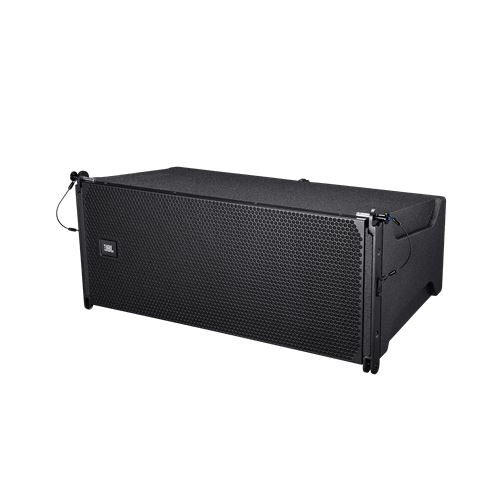

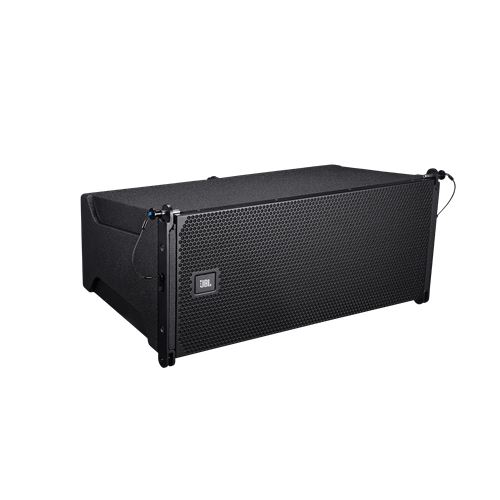

JBL BRX300 Series Dual 8" Modular Portable Line Array Loudspeaker

BRX308-LA

JBL Professional

Whatsapp for enquiry Email for enquiry






The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of soundreinforcement scenarios. The modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use. For decades, the world’s top entertainment venues and touring productions have relied on the superior power and clarity of JBL Professional line array technology; now it’s easier than ever to bring that legendary sonic performance to small and mid-size productions

Features

  • Dual 8-inch LF drivers and 3-inch titanium compression driver
  • Frequency range: 80 Hz–20 kHz (-10 dB)
  • 110° horizontal x 12° (variable) vertical dispersion
  • 136 dB maximum SPL

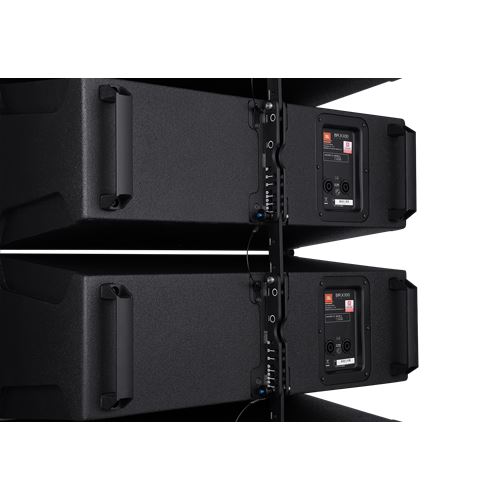

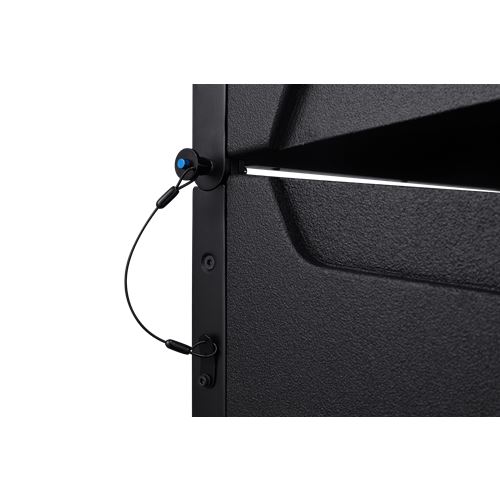

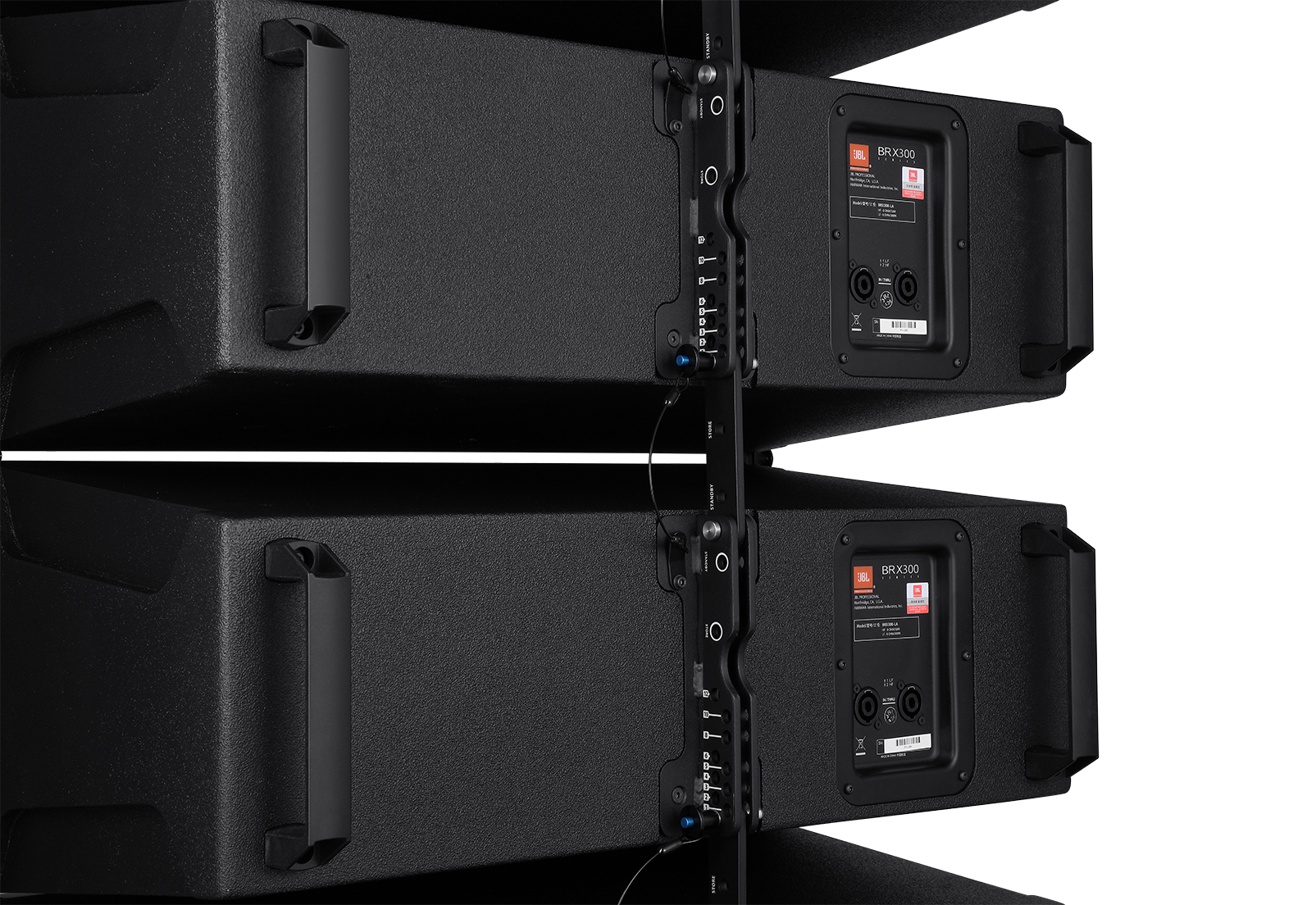

  • Variable interbox angles

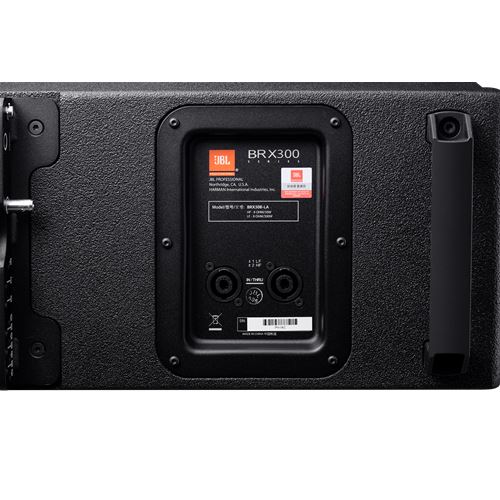

  • I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use
  • Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)
  • Weight: 20.5 kg (45.2 pounds)


* System Type: Modular, portable line array

* Frequency Range (-10 dB): 80 Hz–20 kHz
* Max Peak SPL (2 PI): 136 dB
* Nominal Directivity (H x V): 110° x 12° (variable)
* Transducers: LF: 2 x 8”
               HF: 1 x 3” titanium compression
* Compliance: CE
* Material: Plywood
* Colour / ¬Finish: Matte black, Duraflex
* Connectors: Two 4-pole NL4 connectors wired in parallel for IN/THRU use
