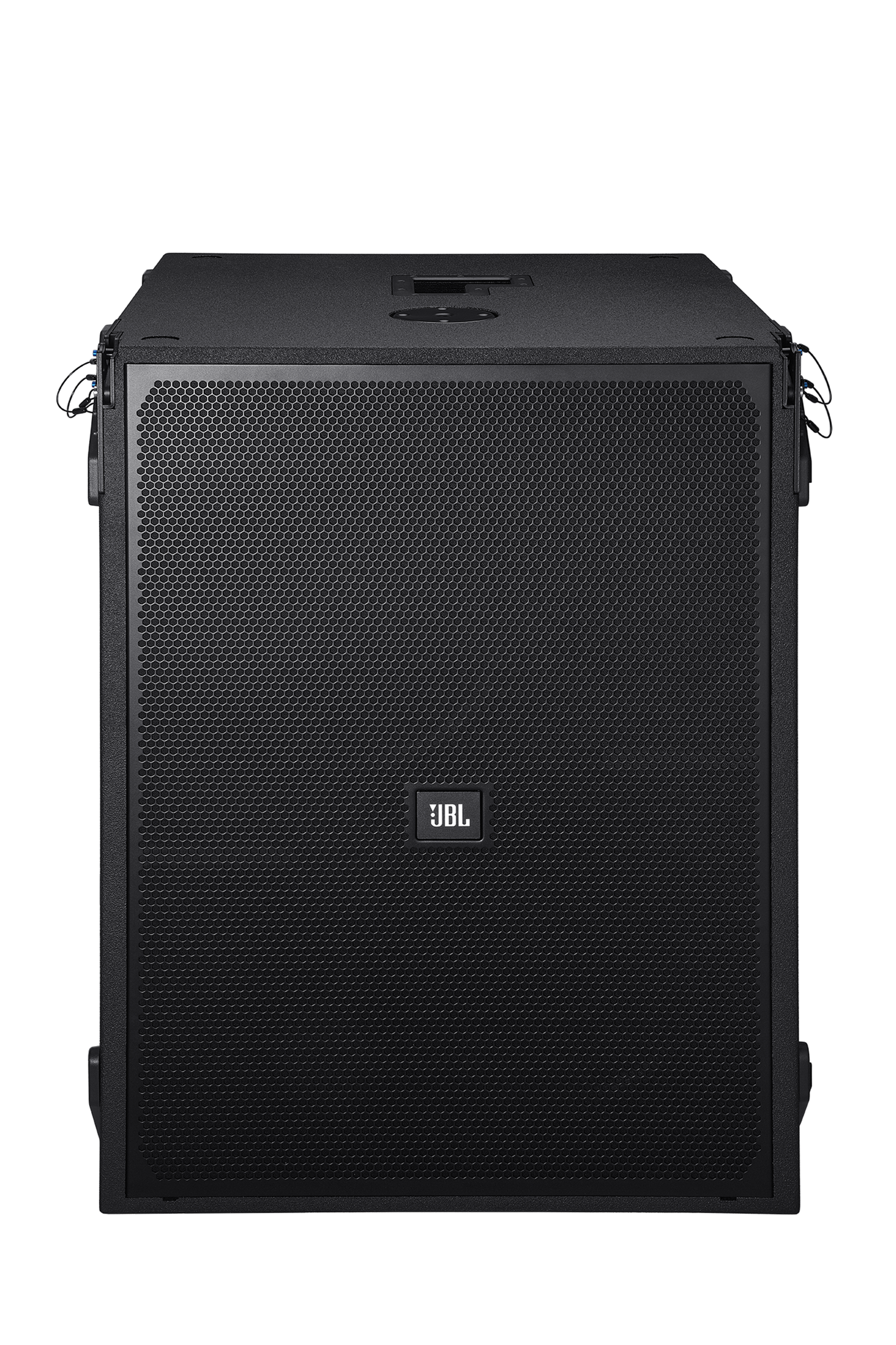

JBL BRX300 Series Dual 15" Modular Portable Line Array Subwoofer with 6-Channel Amplifier

BRX325SP

JBL Professional

Whatsapp for enquiry Email for enquiry






The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of soundreinforcement scenarios. The modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use. For decades, the world’s top entertainment venues and touring productions have relied on the superior power and clarity of JBL Professional line array technology; now it’s easier than ever to bring that legendary sonic performance to small and mid-size productions.


Features

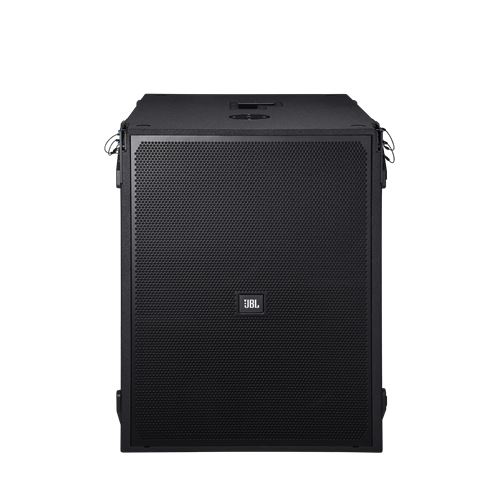

  • Dual 15-inch woofers
  • Frequency range: 32 Hz–250 Hz (-10 dB)
  • 136 dB maximum SPL
  • Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry
  • Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class
  • Powers up to four BRX308-LA Line Array Elements

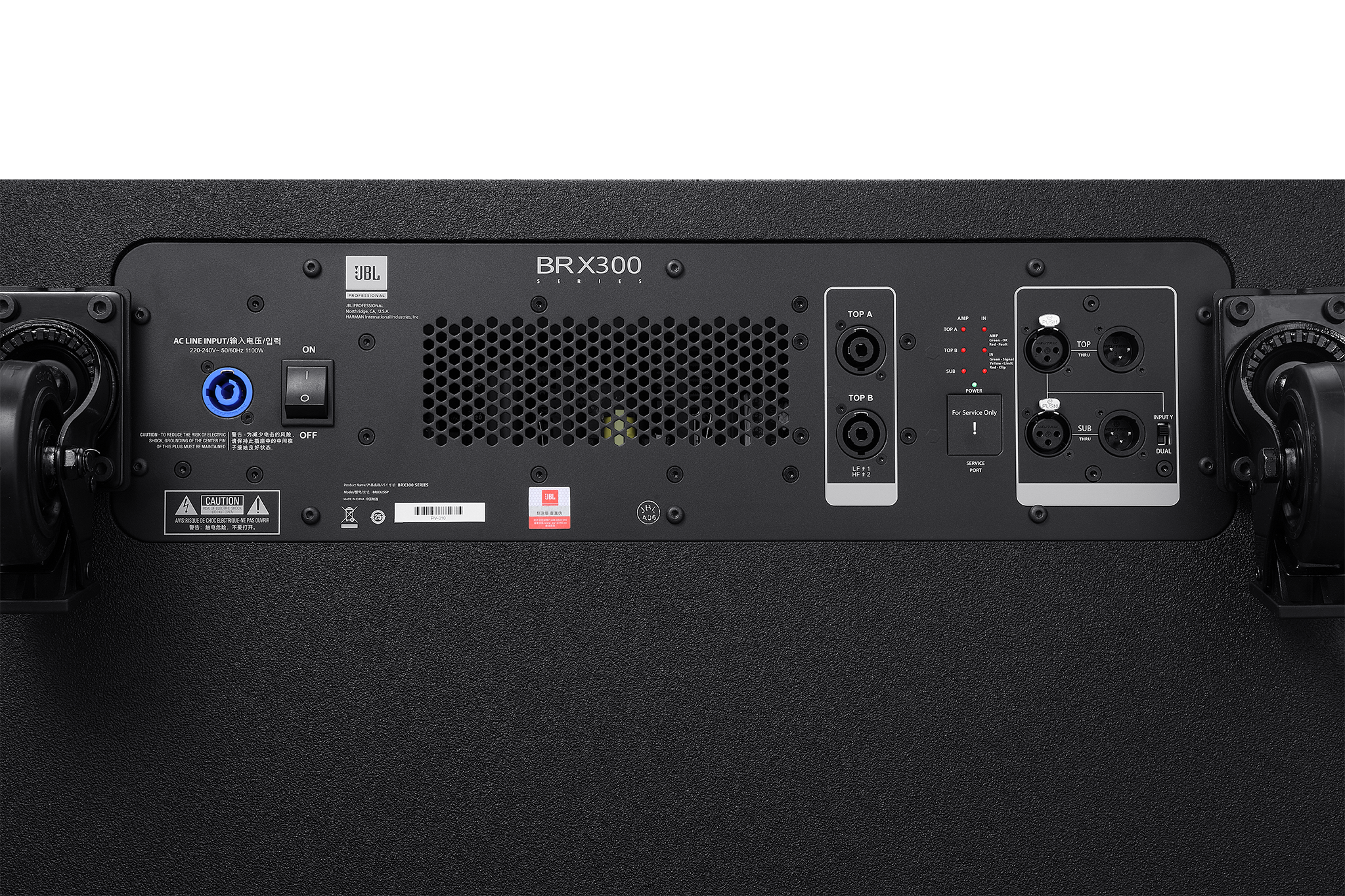

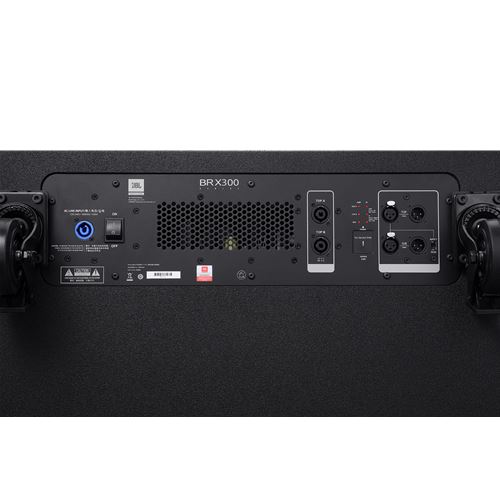

  • Input: two balanced XLR-F wired in parallel to XLR-M for THRU outputs
  • Output: two 4-pole NL4 connectors for powering up to four tops
  • Power input: 20A powerCON/230 VAC only
  • Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses

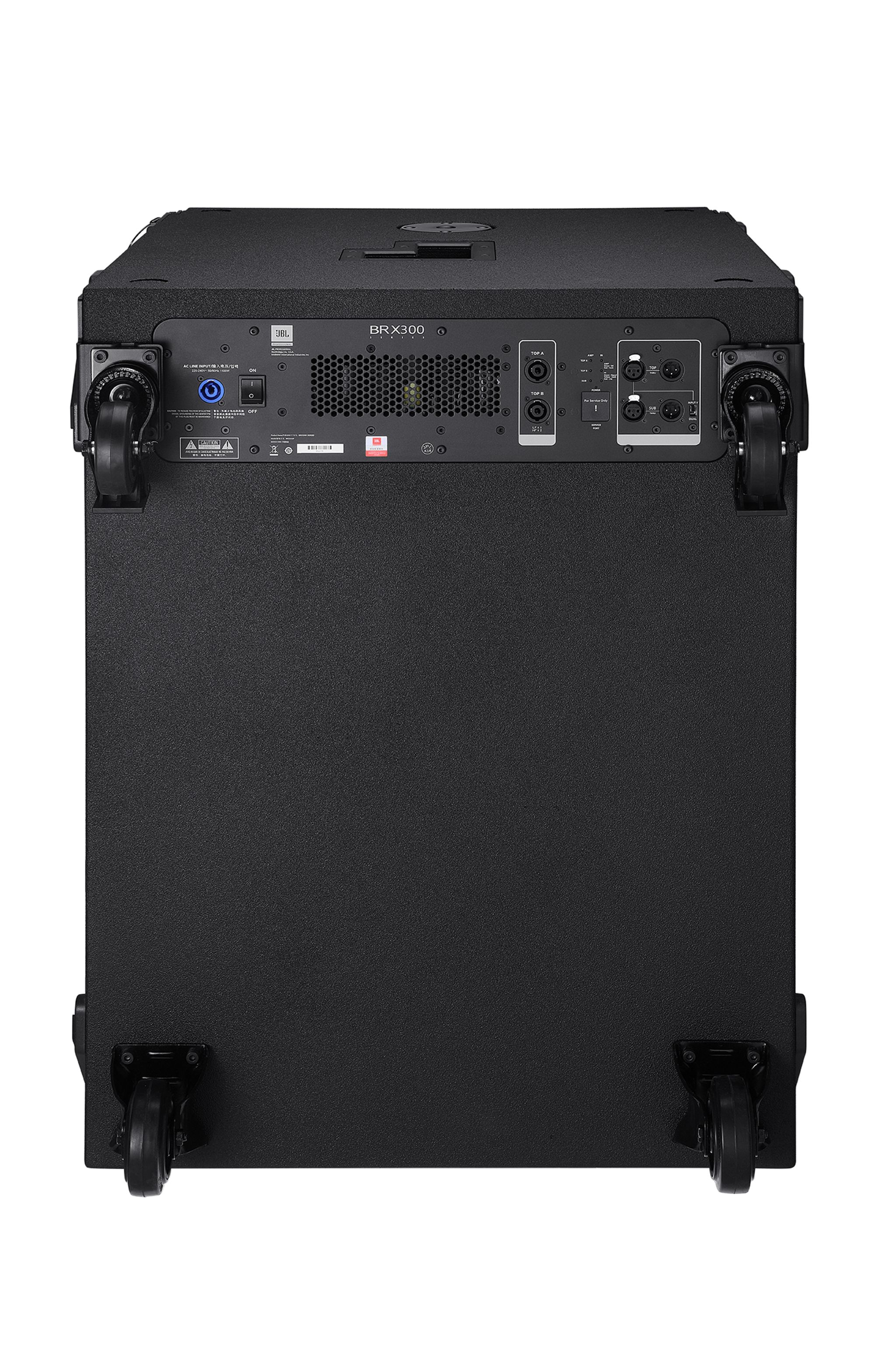

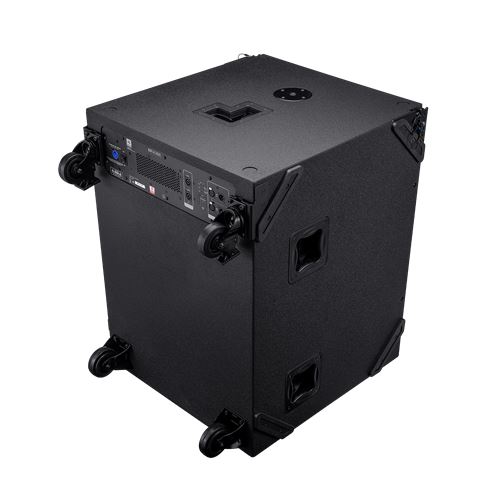

  • Casters provide ease of transport
  • Dimensions: 680 x 890 x 693 mm (26.7 x 35 x 27.3 inches) without caster wheels
  • Weight: 86 kg (190 pounds)
  • Power cable options for China, India and APAC regions


* System Type: Modular, portable line array subwoofer

* Frequency Range (-10 dB): 32 Hz–250 Hz
* Amp Input Modes: Dual, Input Y
* Input: Two balanced XLR-F wired in parallel to XLR-M for THRU outputs
* Output: Two 4-pole NL4 connectors for powering up to four tops
* Crossover: Internal DSP incl. FIR processing
* System Power: 6 channels @ 1000 watts each
* Transducers: 2 x 15”
* Compliance: CE
* Material: Plywood
* Colour / ¬Finish: Matte black, Durable
* Power Input: 20A power CON/230 VAC only
