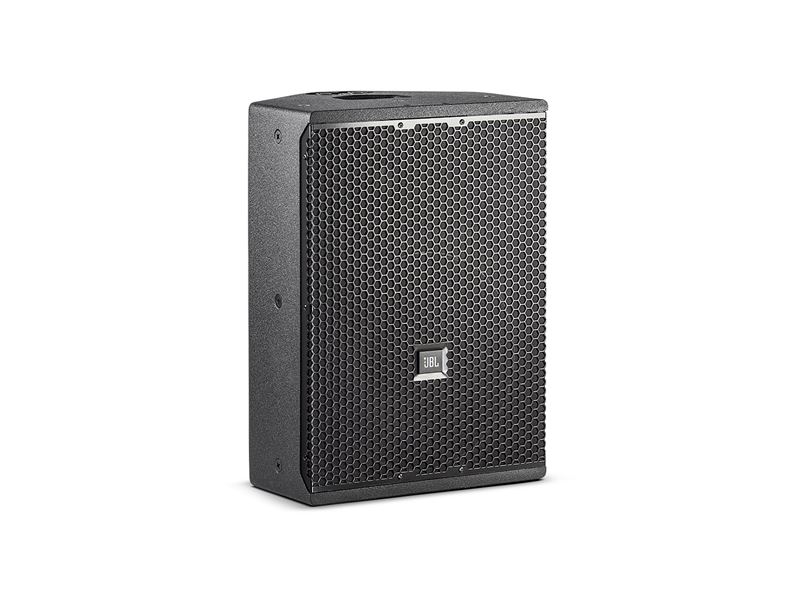

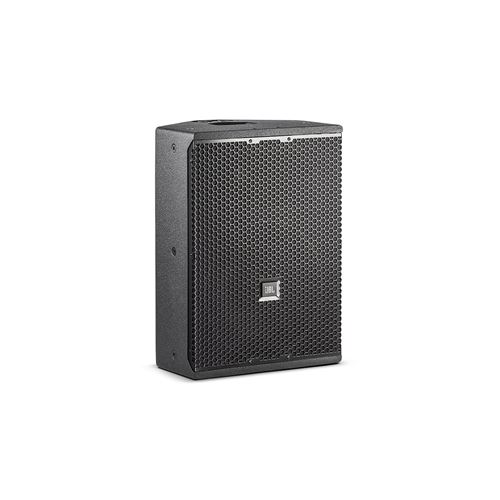

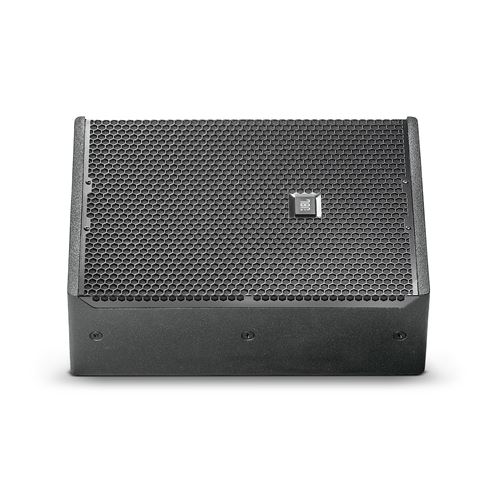

12" Bi-Amplified 2-Way System
The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Features
- D2430K D2 Dual Diaphragm Dual Driver
- Progressive Transition Waveguide (90° x 50°)
- Bi-Amplified 2-Way System
- BSS Audio OmniDriveHD V5 Processing
- For use with Crown ITechHD and Crown VRack
- JBL HiQnet Performance Manager Control™
| System Type | 2-Way Premium Multi-Purpose Loudspeaker with 12” Differential Drive® Woofer and D2 Dual Driver |
| Components | 1 x 2262H 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Coverage Pattern | 90 x 50 degrees |
| Frequency Range (-10dB) | 51 Hz - 21.5 kHz (short throw mode, free field) 44 Hz - 21.5 kHz (monitor mode, half-space) |
| Frequency Response (±3 dB) | 69 Hz – 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space) |
| Sensitivity | 96 dB LF, 108 dB HF |
| Nominal Section Impedances | 8 ohms LF, 20 ohms HF |
| Transducer Power Rating (AES 2 hour) | 1000W LF, 200W HF cont 4000W LF, 800W HF peak |
| Dimensions (H x W x D) | 548.6mm x 396.2mm x 304.8mm (21.6in x 15.6in x 12in) |
| Net Weight (each) | 19.1 kg (42 lbs) |
| Maximum Peak Output *2 | 132 dB (Preset: VTX F12 80) |
| Nominal Impedance | LF = 8 ohms |
| HF = 20 ohms | |

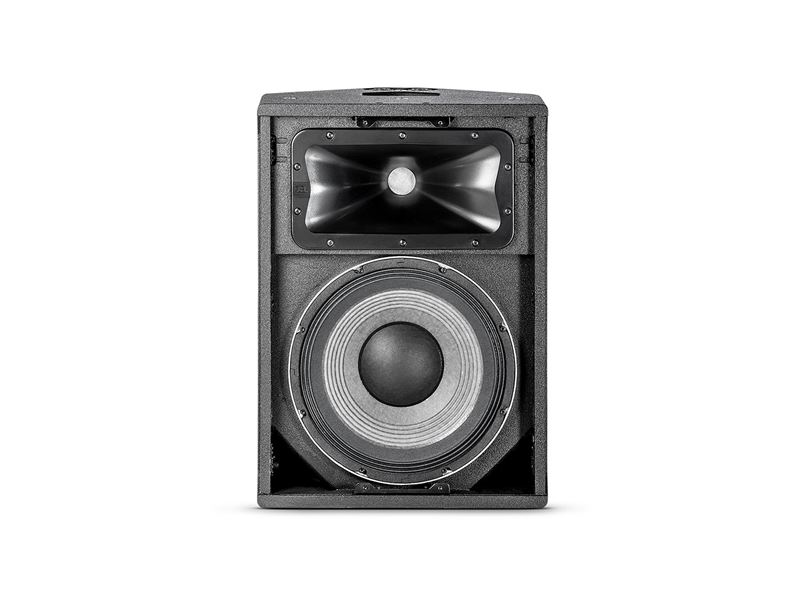

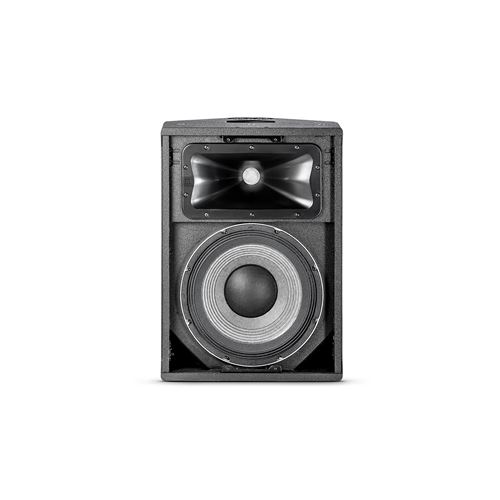

| LF Driver | 1 x 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |

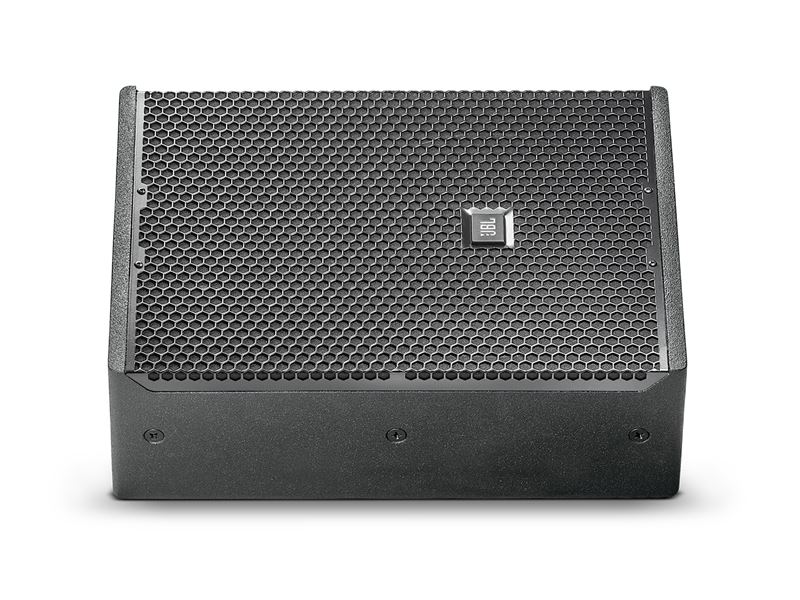

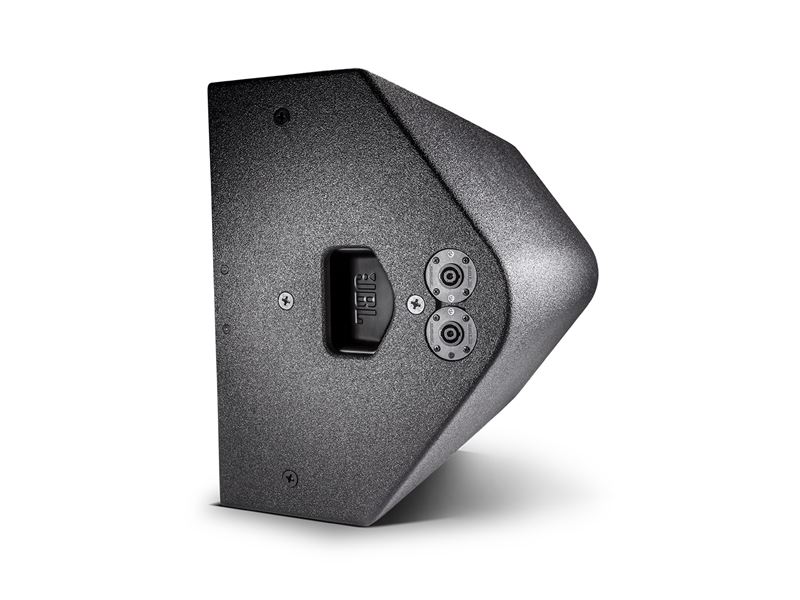

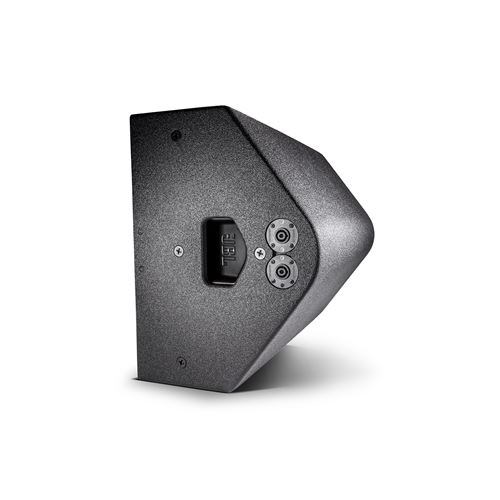

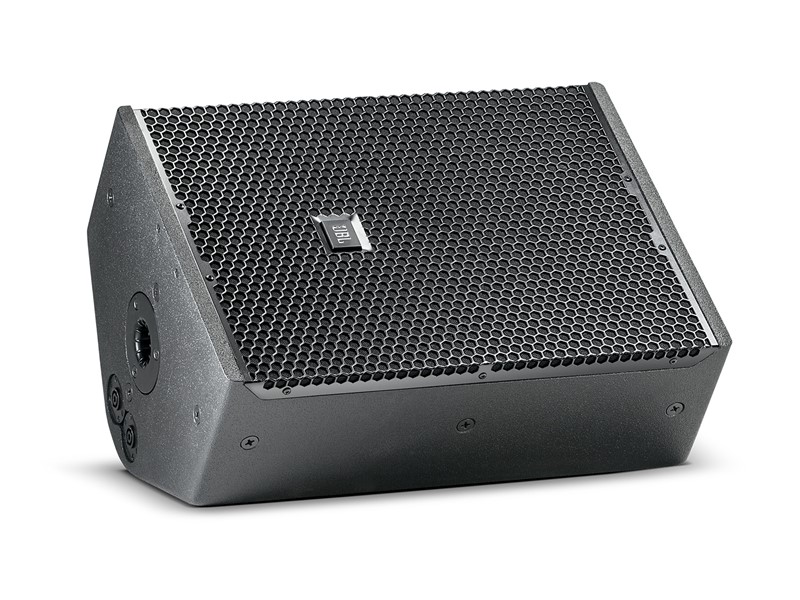

| Enclosure | Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle |
| Suspension / Mounting | Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available |
