| Frequency Range (-10dB) |
39 Hz - 18 kHz |
| Coverage Pattern (-6dB) |
/64: 60° Horizontal x 40°Vertical/95:
90° Horizontal x 50°Vertical |
| System Input Power Rating |
LF: 2 x 800 W Continuous (IEC / 100
hour)MF: 270 W Continuous (IEC / 100 hour)HF: 100 W Continuous (IEC / 100
hour) |
| Maximum Peak Output *2 |
/64: 143dB (Preset: F35/64 FR)/95:
143dB (Preset: -F35/95 FR) |
| System Processing |
Crown Audio I-Tech HD SeriesCrown
Audio I-Tech 4x3500HD |
| System Impedance |
LF = 2 x 8 ohms |
| MF = 8
ohms |
| HF = 8
ohms |
| LF Driver |
2 x 2265H, 254 mm (15 in) diameter,
dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ |
| MF Driver |
1 x 2169H, 203 mm (8 in) dia., 76mm (3
in) Dual Voice Coil, Neodymium Differential Drive®, Direct Cooled™ |
| HF Driver |
1 x D2430H, D2 dual diaphragm, dual
76mm (3 in) diameter voice coil |
| Enclosure |
18 mm, 11-ply Finnish birch plywood;
black DuraFlex™ finish; integral recessed handles |

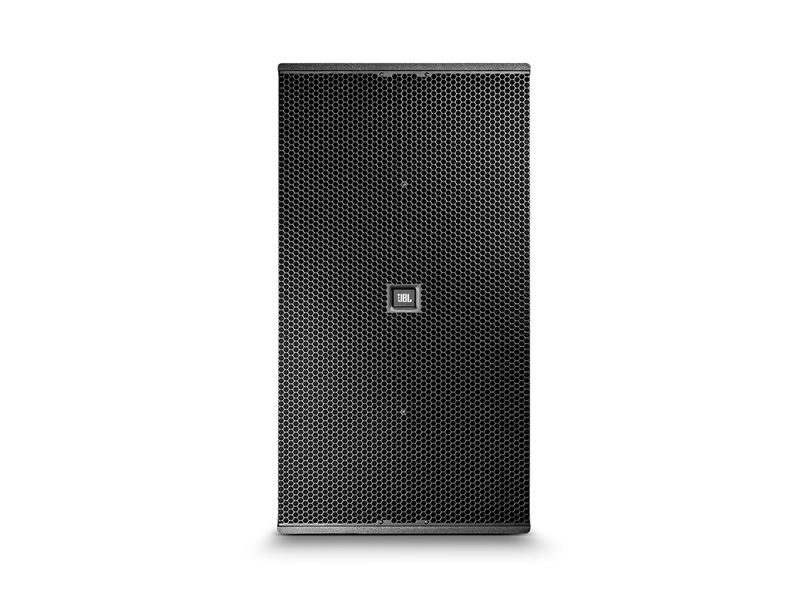

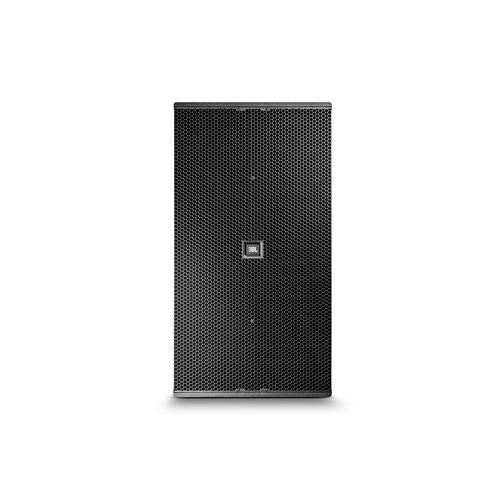

| Grille |
Powder Coated 14 gauge hex-perforated
steel with acoustically-transparent black cloth backing |

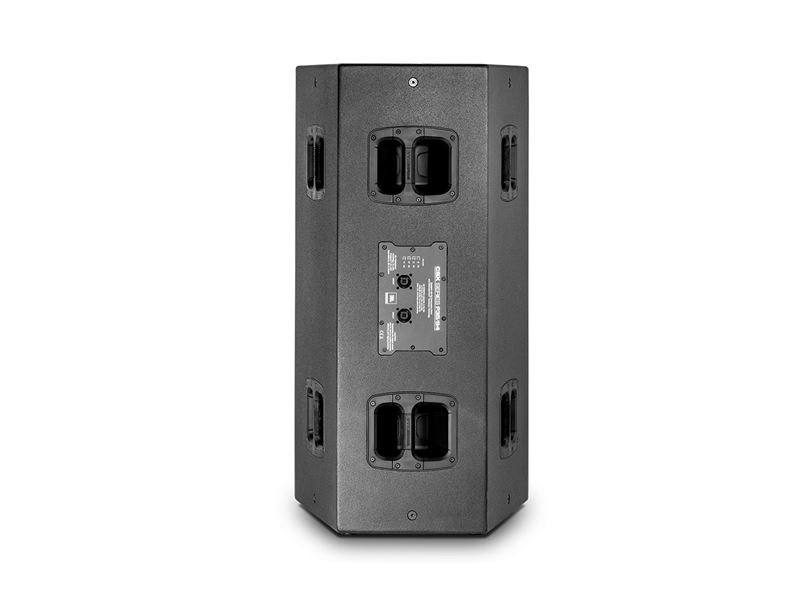

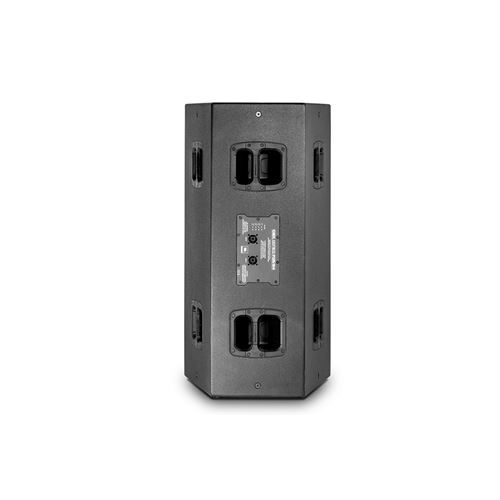

| Input Connectors |
Neutrik® Speakon® NL-8 (2x): LF1: 1± |
LF2: 2± | MF: 3± | HF: 4± |
| Dimensions (H x W x D) |
1051.5mm x 568.9mm x 528.3mm (41.4in x
22.4in x 20.8in) |
| Net Weight (each) |
52.6 kg (116 lbs) |
| System Type |

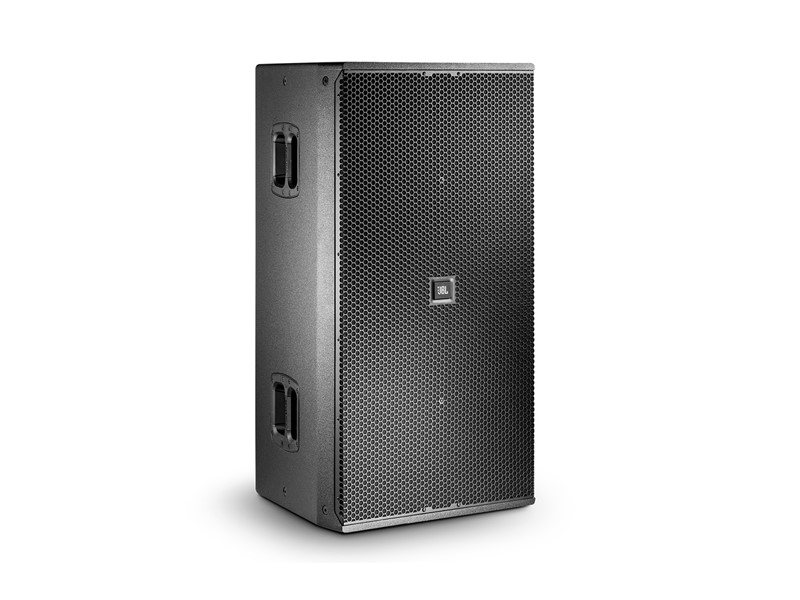

High Performance Dual 15” 3-Way
Loudspeaker with 90 x 50 degree coverage |
| Suspension / Mounting |
Integrated M10 mounting points |
