The VLA-C265 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.
The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

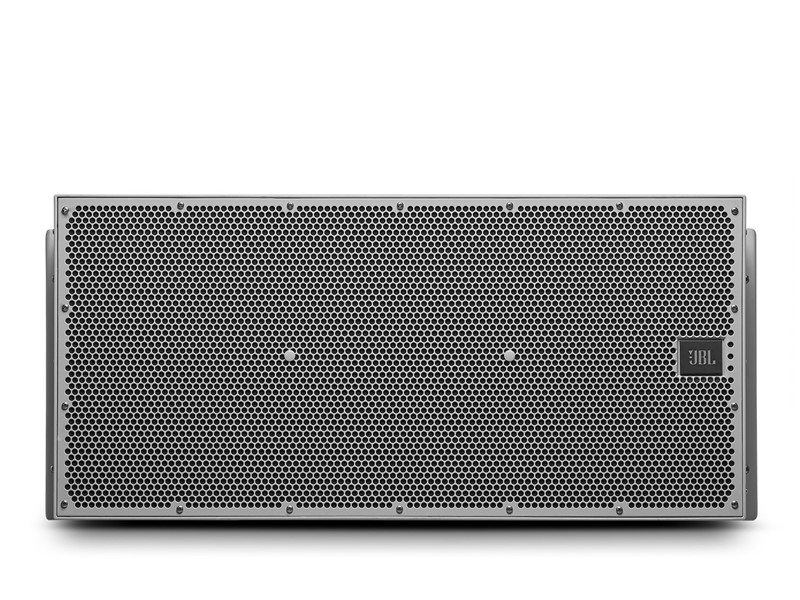

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

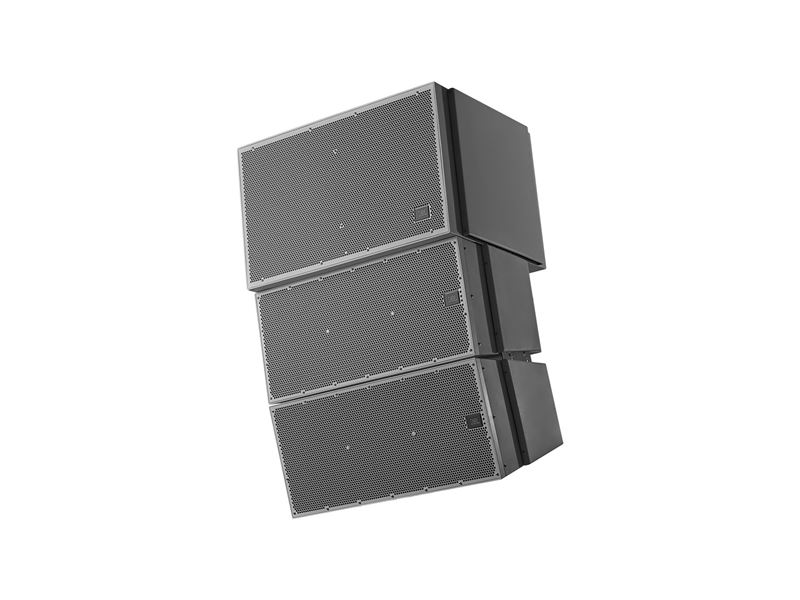

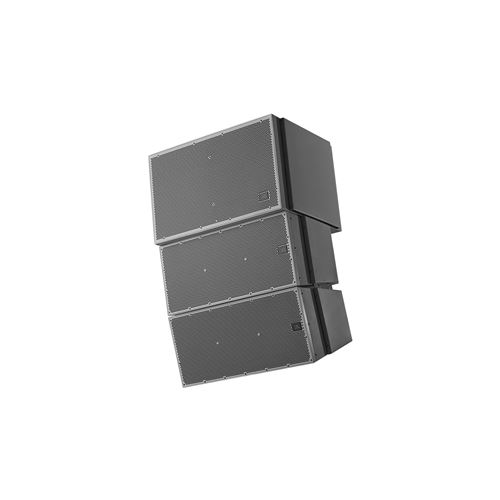

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.
Features- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
- Comprehensive rigging points for creating a line array configuration
- Fiberglass box construction and weatherized components
- Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
- 65° horizontal coverage pattern
| Frequency Range (-10dB) | 85 Hz - 19 kHz |
| Frequency Response (±3 dB) | 108 Hz – 16.5 kHz |
| Full Range | 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs |
| Bi-amp LF | 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs |
| Bi-amp HF | 150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs |
| Full-Range | 80 V Rms (2 hrs), 160 V peak |
| Maximum SPL (1m) | 131 dB Cont. Ave (2 hrs), 137 dB Peak |
| Coverage Pattern (-6 dB) | Horizontal: 65° (+15°/-10°, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration |
| Amplifiers | Crown DCi Family with DSP on-boardRecommended:Crown DCi 2 | 1250NCrown DCi 4 | 1250N/ND/DACrown DCi 2 | 2400NCrown DCi 4 | 2400N |
| LF Driver | 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™ |
| HF Driver | 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit |
| Enclosure Material | Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing. |
| Grille | Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen. |
| Inter-Enclosure Angles | VLA-C265 to VLA-C265: 1.5°, 2.4° 3.8°, 6.0°, 9.5° using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C265 to VLA-C2100 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S) |
| Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water). |
| Terminals | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. |
| Colors | -GR: Gray (similar to Pantone 428C), -BK: Black |
| Dimensions (H x W x D) | 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in) |
| Net Weight (each) | 37.7 kg (83 lbs) |
| Shipping Weight (ea) | 44.0 kg (97 lbs) |
| Included Accessories | 2 pcs. VLA-C265 Bracket Plates |
| 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates | |
| 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via | |
| 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts. | |
| Optional Accessories | VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit |
