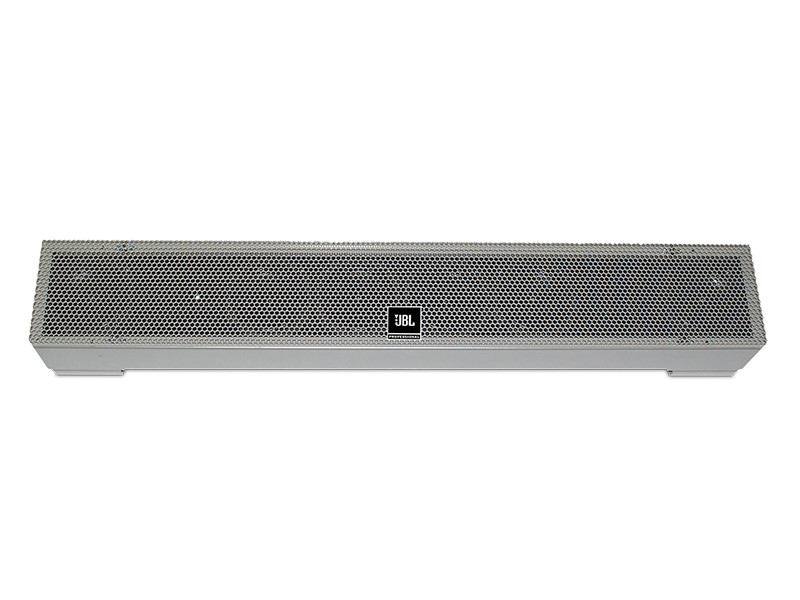

To improve intelligibility, the Model V90, utilises a preset vertical opening angle with a -4º steering angle to accurately cover the listening plane when mounted flat to a vertical surface. This results in a reduction of incoherent reflections from the mounting surface.
An additional advantage of vertical or even recessed mounting is that the Model V90 becomes architecturally unobtrusive.
This loudspeaker is EN 54-24 Compliant for life safety applications.
Applications
- Transport Hubs
- Places of Worship
- Atriums
- Shopping Centers
- Any reverberant space where high quality speech reproduction is required
- EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets
| Frequency Range | 220 - 10k Hz (+/-3 dB) 120 - 12k Hz (-10 dB) |
| Sensitivity (1 W / 4 m) | 80 dBSPL |
| Maximum SPL (100 W / 4 m) | 100 dBSPL |
| Coverage - Horizontal | 130º (-6 dB) |
| Coverage - Vertical | 30º (-6 dB) |
| Coverage - Steering Angle | Vertical -4º |
| Coverage - Typical Throw | 15 m |
| Rated Impedence (100 W tap) | 100 Ω |
| Rated Impedence (50 W tap) | 200 Ω |
| Rated Impedence (25 W tap) | 400 Ω |
| Rated Noise Power | 100 Wrms(100 W tap) |
| Rated Noise Voltage | 100 Vrms |
| Control switches (Tap setting) | 100 W / 50 W / 25 W |
| Control switches (Highpass filter) | HPF active / Flat |
| Control switches (Correction EQ) | EQ active / Flat |
| Pilot tone detection (Indicator) | Green LED on front |
| Pilot tone detection (Frequency range) | 20k - 23k Hz |
| Pilot tone detection (Minimum level) | 6 Vrms |
| Suggested amplifiers | JBL 100 V IndustryAmp series |
| Material | Steel, powder coated |
| Mounting Points | 4 x M5 left and 4 x M5 right |
| Dimensions (H x W x D) | 865 x 134 x 92 mm (34.1” x 5.3” x 3.6”) |
| Standard Colours (Enclosure and grill) | RAL 9007 (grey) or RAL 9010 (white) |
| Standard Colours (Speaker baffle) | RAL 9011 (black) |
| Weight | 10 kg (22 lbs) |
| Impedance | 100 W tap : 100 Ω |
| 50 W tap : 200 Ω | |
| 25 W tap : 400 Ω | |
| Maximum SPL (1m) | 92 dBSPL (100 W tap / HPF flat / EQ flat) |
| 89 dBSPL (100 W tap / HPF active / EQ active) | |
| Drivers | 6 x 4” full range |
| Transformer Taps | 100 W, 50 W, 25 W (100v only) |
| Enclosure | Steel, powder coated |
| Outdoor Capability | EN 54-24 Type B (outdoor) |
| Colors | Enclosure and grill : RAL 9007 (grey), applies to part number 576125 : RAL 9010 (white), applies to part number 577125 : Custom color, applies to part number 577135 |
| Speaker baffle : RAL 9011 (black), applies to all part numbers | |
| Optional Accessories | Multiple optional accessories available. Please see spec sheet or your local dealer for more info. |
