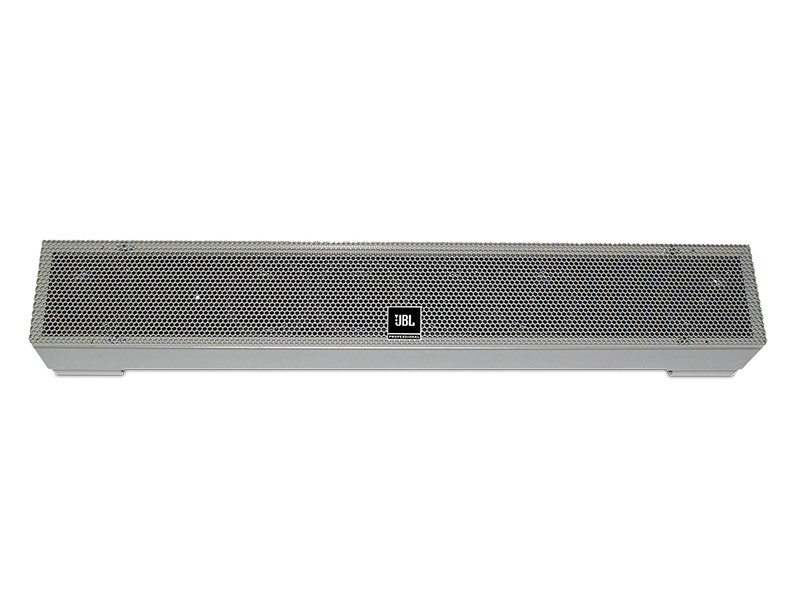

The JBL Intellivox ADC-H90 Mark II is designed for use on platforms and in high ceiling corridors, to minimize spill over a large bandwidth outside the listening area. The precisely defined horizontal dispersion aims the acoustic signal at the listener area, whilst minimizing disturbance outside of this locality.
This dramatically improves the listening comfort in surrounding areas of for instance, open platform railway stations.
The column is designed to be mounted horizontally and can be mechanically aimed according to desired throw.
The Intellivox ADC-H90 Mark II is designed to evenly cover distances up to 10-15 m. It has a fixed vertical dispersion of 130º and a horizontal opening angle of 30º. The focus point for the horizontal beam is at 15m.
This loudspeaker is EN 54-24 Compliant for life safety applications.
Applications
- Railway Station Platforms
- Long, high ceiling corridors
- Terminals
- EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets
| Frequency Range | 260 - 11k Hz (+/-3dB) 150 - 14k Hz (-10 dB) |
| Sensitivity (1 W / 4 m) | 79 dBSPL |
| Maximum SPL (100 W / 4 m) | 99 dBSPL |
| Coverage - Horizontal | 40º (-6 dB) |
| Coverage - Vertical | 130º (-6 dB) |
| Coverage - Steering Angle | Horizontal 0º |
| Coverage - Typical Throw | 15 m |
| Rated Impedence (100 W tap) | 100 Ω |
| Rated Impedence (50 W tap) | 200 Ω |
| Rated Impedence (25 W tap) | 400 Ω |
| Rated Noise Power | 100 Wrms(100 W tap) |
| Rated Noise Voltage | 100 Vrms |
| Control switches (Tap setting) | 100 W / 50 W / 25 W |
| Control switches (Highpass filter) | HPF active / Flat |
| Control switches (Correction EQ) | EQ active / Flat |
| Pilot tone detection (Indicator) | Green LED on front |
| Pilot tone detection (Frequency range) | 20k - 23k Hz |
| Pilot tone detection (Minimum level) | 6 Vrms |
| Suggested amplifiers | JBL 100 V IndustryAmp series |
| Material | Steel, powder coated |
| Mounting Points | 4 x M5 left and 4 x M5 right |
| Dimensions (H x W x D) | 134 x 865 x 92 mm (5.3” x 34.1” x 3.6”) |
| Standard Colours (Enclosure and grill) | RAL 9007 (grey) or RAL 9010 (white) |
| Standard Colours (Speaker baffle) | RAL 9011 (black) |
| Weight | 10 kg (22 lbs) |
| Impedance | 100 W tap : 100 Ω |
| 50 W tap : 200 Ω | |
| 25 W tap : 400 Ω | |
| Drivers | 6 x 4” full range |
| Transformer Taps | 100 W, 50 W, 25 W (100v only) |
| Enclosure | Steel, powder coated |
| Outdoor Capability | EN 54-24 Type B (outdoor) |
| Color | Enclosure and grill : RAL 9007 (grey), applies to part number 576126 : RAL 9010 (white), applies to part number 577126 : Custom color, applies to part number 577136 |
| Speaker baffle : RAL 9011 (black), applies to all part numbers | |
| Optional Accessories | Multiple optional accessories available. Please see spec sheet or your local dealer for more info. |
| Maximum SPL (1m) | 92 dBSPL (100 W tap / HPF flat / EQ flat) |
| 89 dBSPL (100 W tap / HPF active / EQ active) |
