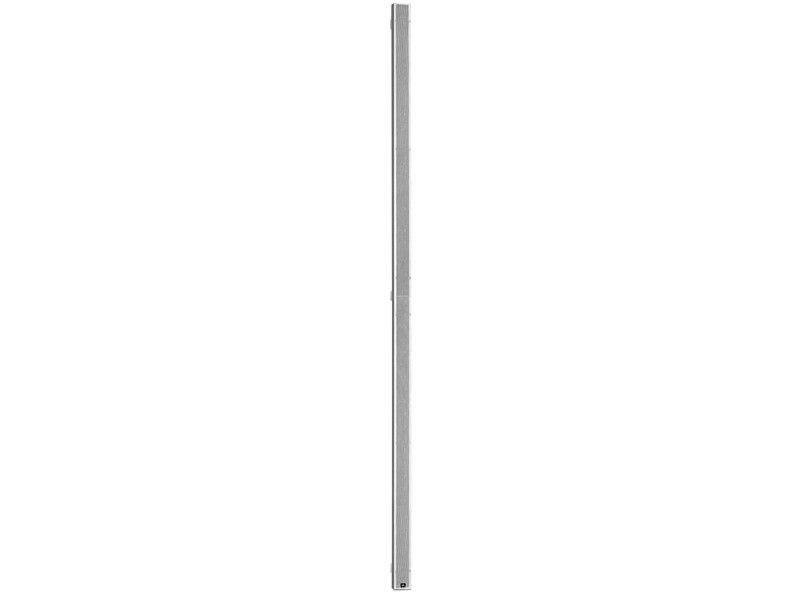

The Intellivox-DC500 is the flagship of the slim line Intellivox DDC range. With an array length in excess of 4 m the Intellivox-DC500 not only offers long throw capability but also greater control at lower frequencies. A single Intellivox-DC500 is capable of covering an area up to 70 m while maintaining an even sound pressure level. The thirty two, custom designed, 4” loudspeakers are driven by a sixteen channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The loudspeakers themselves are arranged in accordance with our patented algorithm.
An extensive set of surveillance functions have been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing and surveillance features. The increased low-mid frequency control offered by the array makes the Intellivox-DC500 suitable for easy and unobtrusive implementation in very large, highly reverberant and architecturally sensitive environments.
Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Wide Horizontal Dispersion
- Vertical Beam Steering
- 32-bit floating point DSP
- Control of Vertical Beam
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
- 8 band parametric EQ
- 8 user definable, password protected presets on board (recallable through third party control devices)
- AVC (Automatic Volume Control) via build-in ambient mic.
- Upgradeable firmware
- Dual Lobe Software
- Network Ready
- Integral Surveillance
- Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3
Applications
- Transport Hubs
- Large Places of Worship
- Lecture Halls and Theatres
- Large Conference Facilities
- Atriums
- Museums
Options
- External Ambient Noise and Temperature Sensor
- Input section with 1 x 0dBV and 1 x 100V
- Input section with 2 x 100V
- Full range of mounting accessories
- Color matching service
