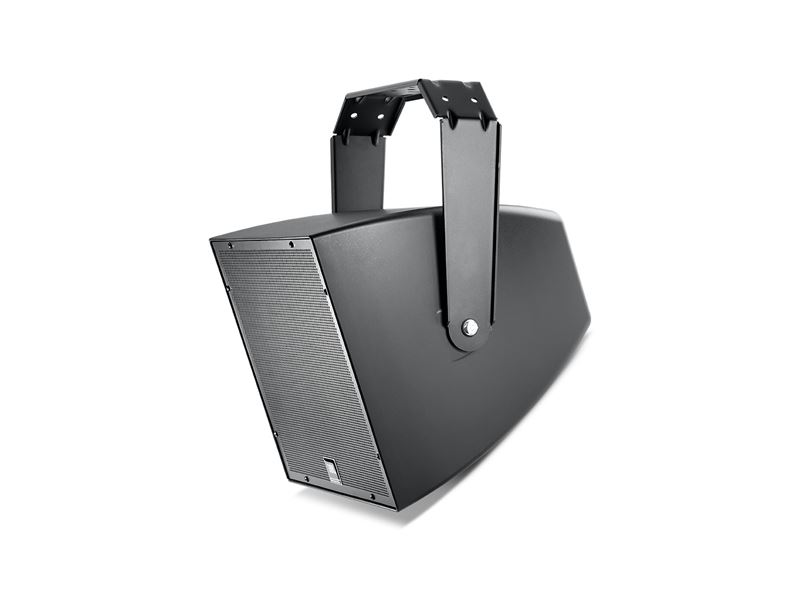

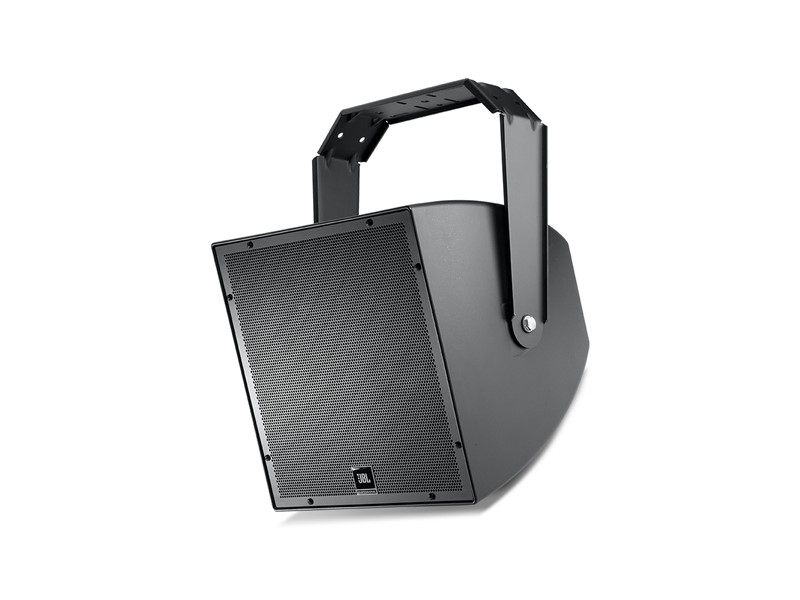

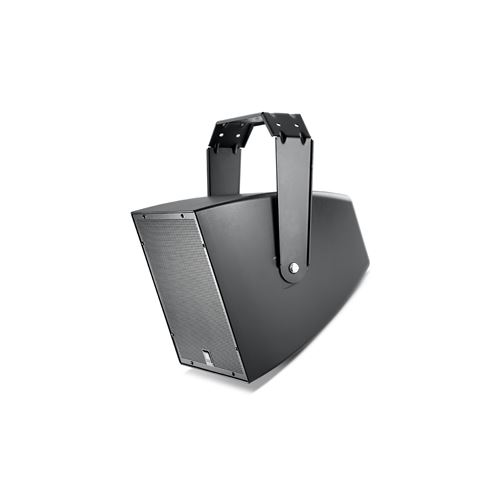

The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Features
- Highly weather-resistant IP56 rating
- Consistent 90° x 90° broadband pattern control
- Components:

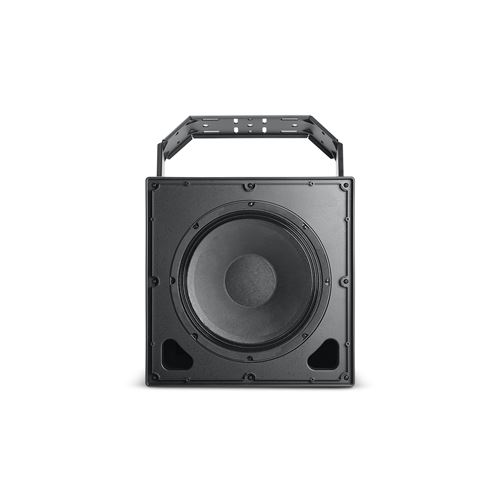

• 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm. - Extraordinary clarity for speech, with extended frequency response for music.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
- High-power passive crossover network.
- 52 Hz – 20 kHz frequency response.
- 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
| Frequency Range (-10dB) | 52 Hz – 20 kHz |
| Frequency Response (±3 dB) | 80 Hz – 20 kHz |
| Coverage Pattern | 90° x 90° |
| Directivity Factor (Q) | 11.1 (1 kHz – 16 kHz) |
| Directivity Index (DI) | 9.7 dB (1 kHz – 16 kHz) |
| System Power Rating | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs |
| Sensitivity (2.83V @ 1m) | 98 dB (Ave. 80 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB) |
| Crossover Network | 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W |
| LF Driver | Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil. |
| HF Driver | 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled. |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment | Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") |
| Environmental | IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs). |
| Dimensions | 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back |
| Colors | Available in gray (similar to Pantone 420C) and black (-BK) |
| Included Accessories | U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel. |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Suspension Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Net Weight (each) | 20.6 kgs. (45.5 lbs.) |
