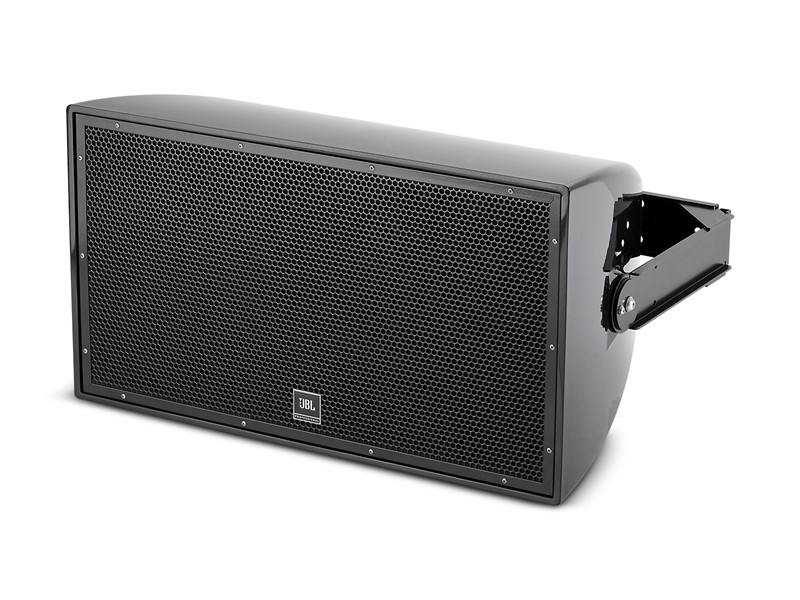

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features
- Weather-Resistant, All Fiberglass Enclosure
- 60° x 60° Coverage
- 2262H Differential Driver® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Frequency Range (-10dB) | 40 Hz – 20 kHz |
| Frequency Response (±3 dB) | 51 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 500 W (2000 W peak) 100 hrs |
| Maximum SPL (1m) | 126 dB SPL (132 dB peak) |
| System Sensitivity (1w @ 1m) | 98 dB |
| Transformer Taps | 70V: 400 W, 200 W, 100W100V: 400W, 200W |
| LF Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LFD Sensitivity (1W @ 1m, within operational band) | 96 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal HF Driver Impedance | 8 ohms |
| HFD Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (black available) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental | IP56 per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in) |
| Net Weight (each) | 25.2 kg (55.5 lb) |
