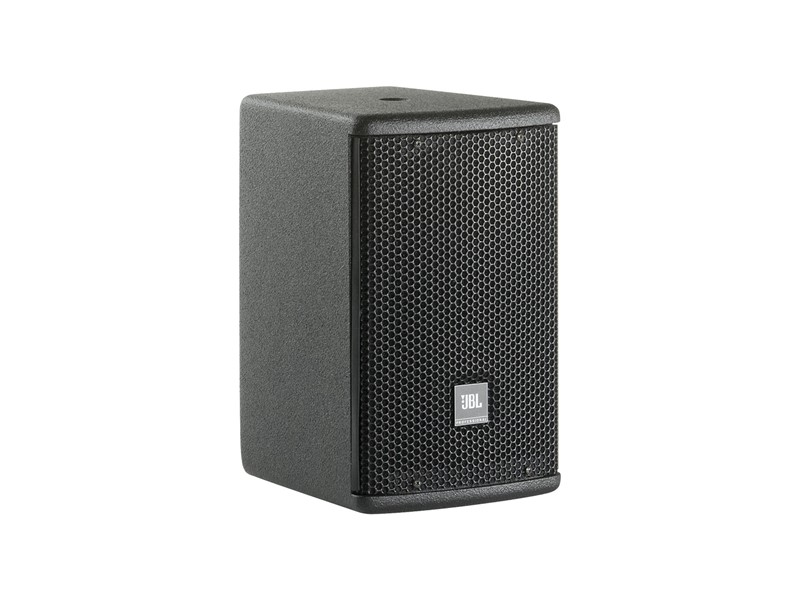

High output, 2-way loudspeaker systems combining flexibility with high fidelity
Features

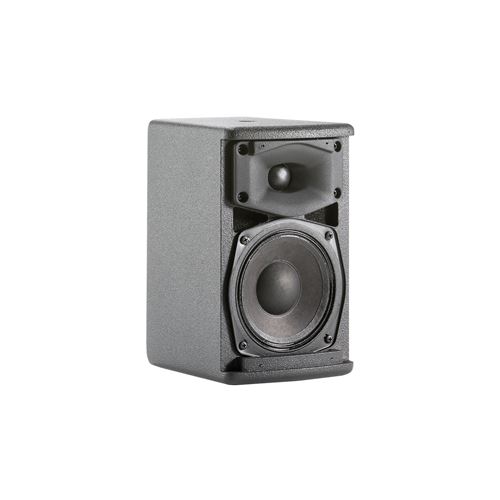

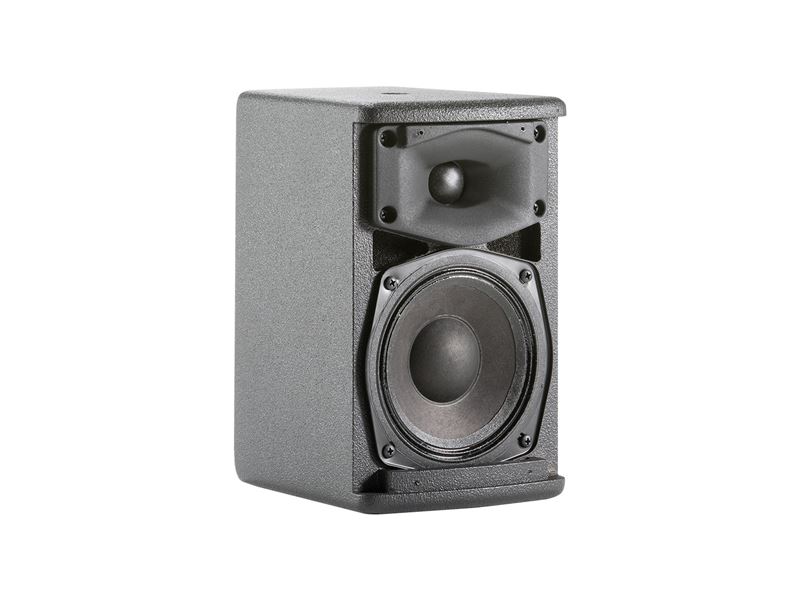

- 1” Dome Tweeter with 90° x 90° Coverage.
- 135 mm (5.25 in) LF transducer
- Ultra compact enclosure
- 300W Program Power
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket
| Frequency Range (-10dB) | 80 Hz -20 kHz |
| Frequency Response (±3 dB) | 90 Hz -18 kHz |
| System Power Rating | 225 W (AES rated) |
| 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated) | |
| Impedance | 16 ohms |
| Coverage Pattern | 90° x 90° |
| Dimensions (H x W x D) | 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in) |
| Net Weight (each) | 4.7 kg (10.5 lb) |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 108 dB |
| System Sensitivity (1w @ 1m) | 86 dB SPL |
| Nominal Section Impedances | 16 ohms |
| LF Driver | 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil |
| Nominal LF Driver Impedance | 16 Ohms |
| HF Driver | 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT |
| Environmental | Mil-Std 810; IPx3 per IEC529. |
