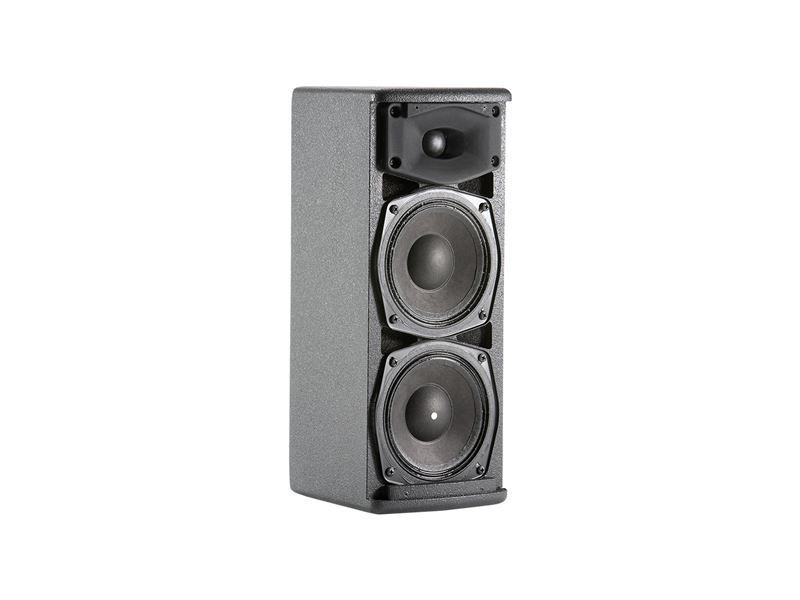

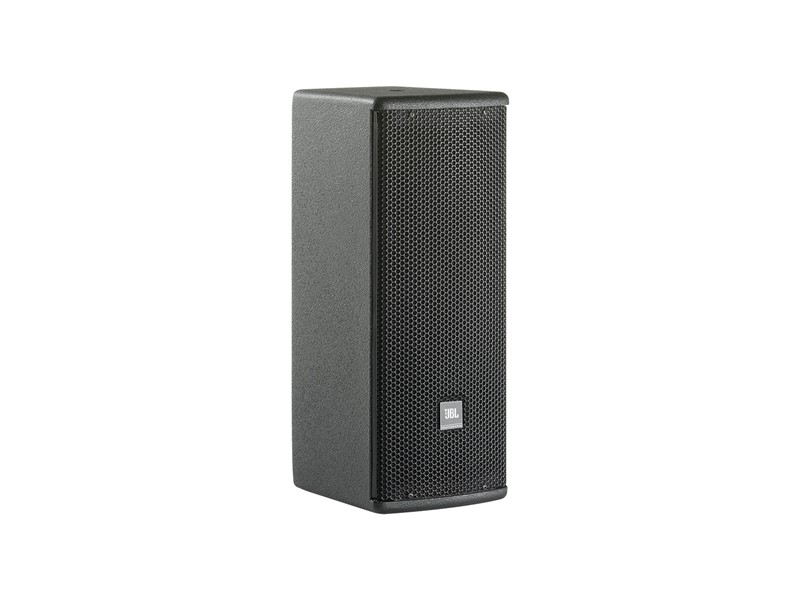

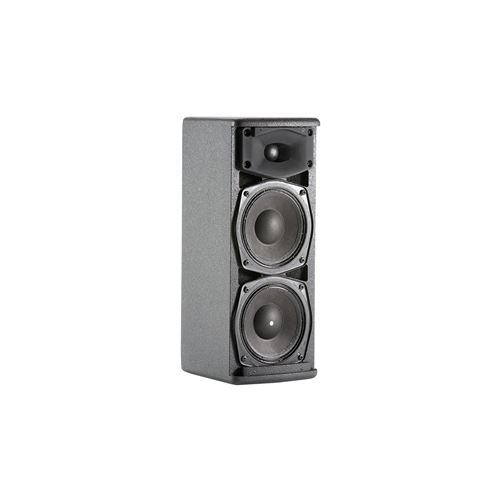

High output, 2-way loudspeaker systems combining flexibility with high fidelity
Features
- 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
- 165 mm (6.5 in) LF transducer
- Ultra compact enclosure
- 360W Program
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
| Frequency Range (-10dB) | 55 Hz -20 kHz |
| Frequency Response (±3 dB) | 70 Hz -18 kHz |
| System Power Rating | 350 W (AES rated) |
| 180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated) | |
| Impedance | 8 ohms |
| Coverage Pattern | 90° x 90° |
| Dimensions (H x W x D) | 539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in) |
| Net Weight (each) | 11.0 kg (24.3 lb) |
| Maximum SPL (1m) | 117 dB |
| System Sensitivity (1w @ 1m) | 92 dB SPL |
| LF Driver | 2 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil |
| Nominal LF Driver Impedance | 8 Ohms |
| HF Driver | 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 or MultiMount® MM-022-BT, MM-024-BT, MM-020-CM. |
| Environmental | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
