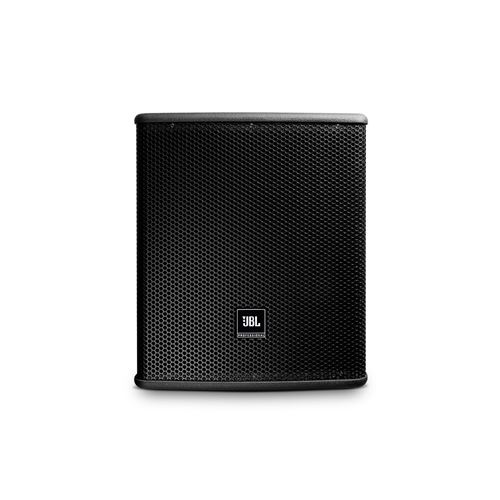

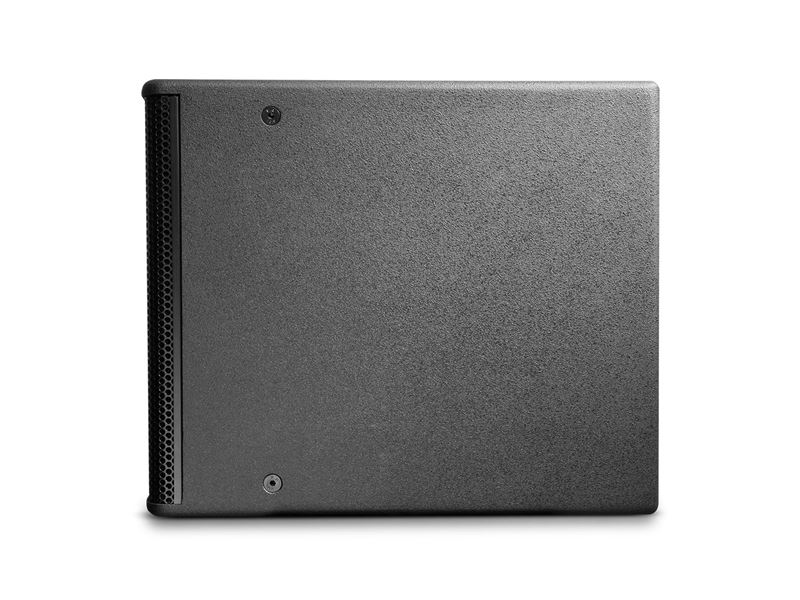

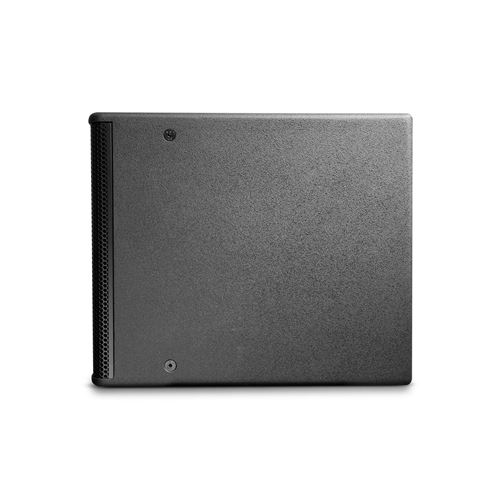

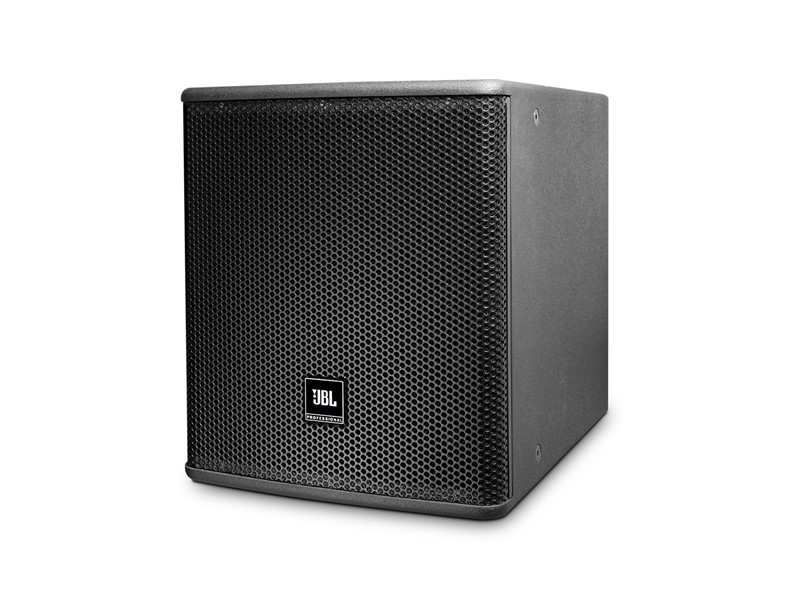

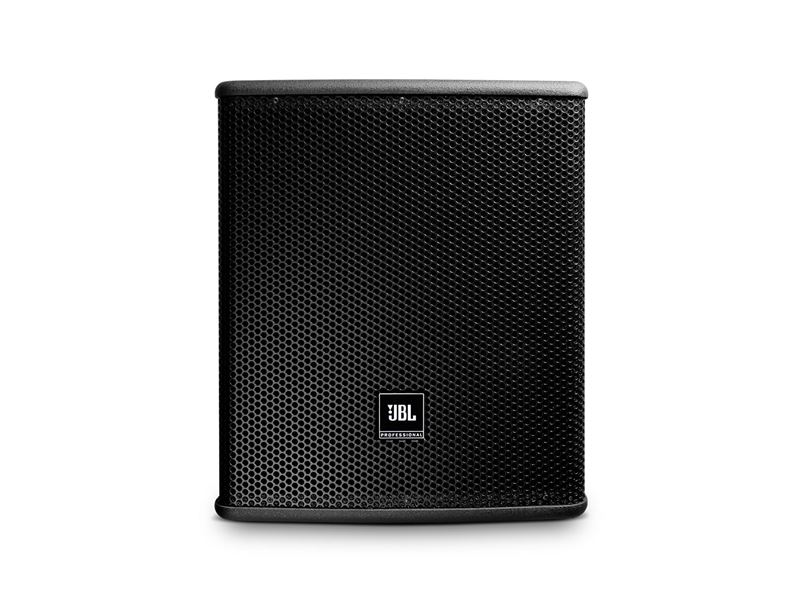

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
Features
- High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10dB) | 32 Hz - 250 Hz |
| Frequency Response (±3 dB) | 40 Hz - 250 Hz |
| System Sensitivity (1w @ 1m) | 94 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 120 dB (126 dB peak) |
| System Power Rating | 500W (2000W peak), 2 hrs (AES rated) |
| 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated) | |

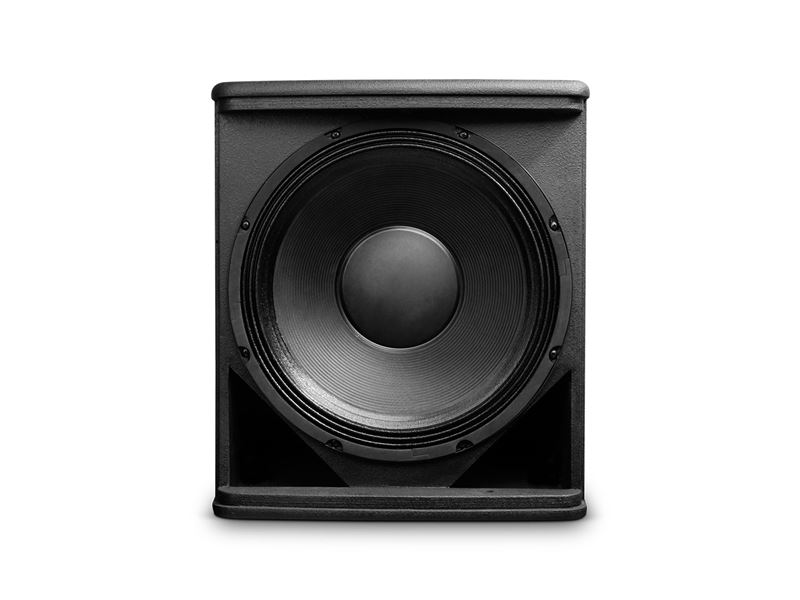

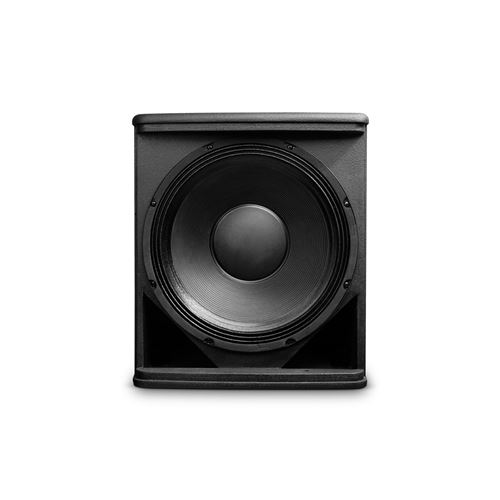

| LF Driver | 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 18 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension Attachment | 12 x M10 threaded suspension points |
| Dimensions (H x W x D) | 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in |
| Net Weight (each) | 24 kg (52.9 lbs) |
| Nominal LF Driver Impedance | 8 ohms |
