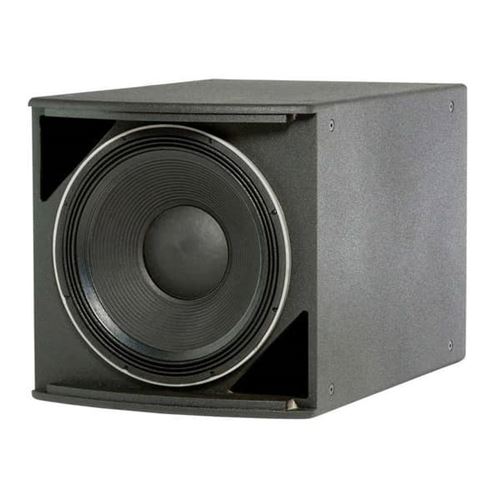

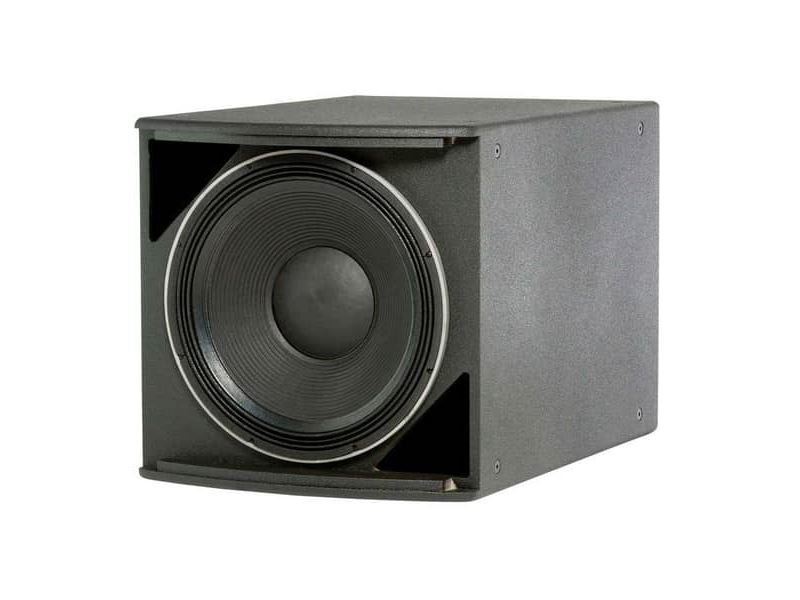

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Features
- Large vent area for high output.
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
| Frequency Range (-10dB) | 28 Hz – 1 kHz |
| Frequency Response (±3 dB) | 35 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1200 W (4800 W peak), 2 hrs |
| System Power Rating | 800 W (3200 W peak), 100 hrs |
| Maximum SPL (1m) | 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak) |
| System Sensitivity (1w @ 1m) | 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
| Net Weight (each) | 98 lbs. (44.5 kgs) |
