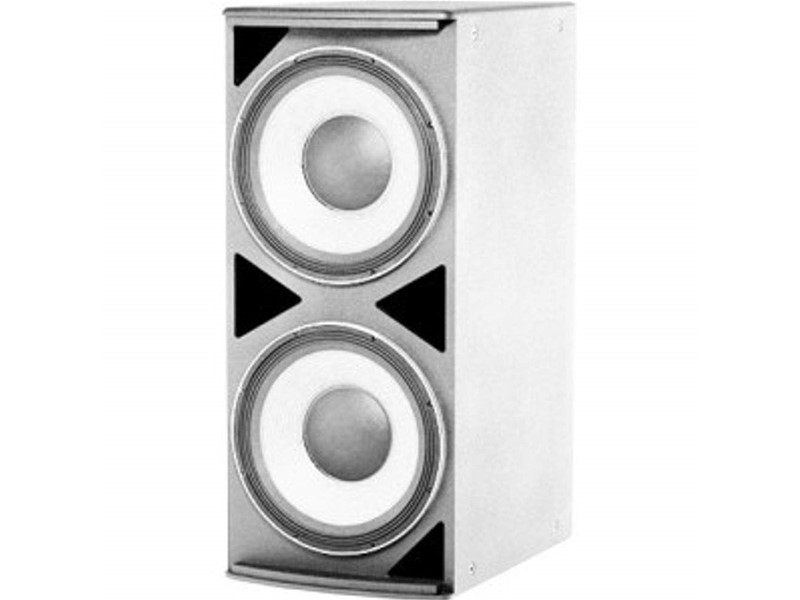

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Features
- Large vent area for high output.
- Parallel/Discrete Switchable.
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
| Frequency Range (-10dB) | 28 Hz – 1 kHz |
| Frequency Response (±3 dB) | 35 Hz – 1 kHz |
| Input Modes | Drivers Parallel / Drivers Discrete |
| Transducer Power Rating (AES) | 2400 W (9600 W peak), 2 hrs |
| System Power Rating | 1600 W (6400 W peak), 100 hrs |
| Maximum SPL (1m) | 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak) |
| System Sensitivity (1w @ 1m) | 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB |
| Nominal Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| LF Driver | 2 x JBL 2242H 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil |
| Nominal LF Driver Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
| Net Weight (each) | 161 lbs. (73 kgs) |
