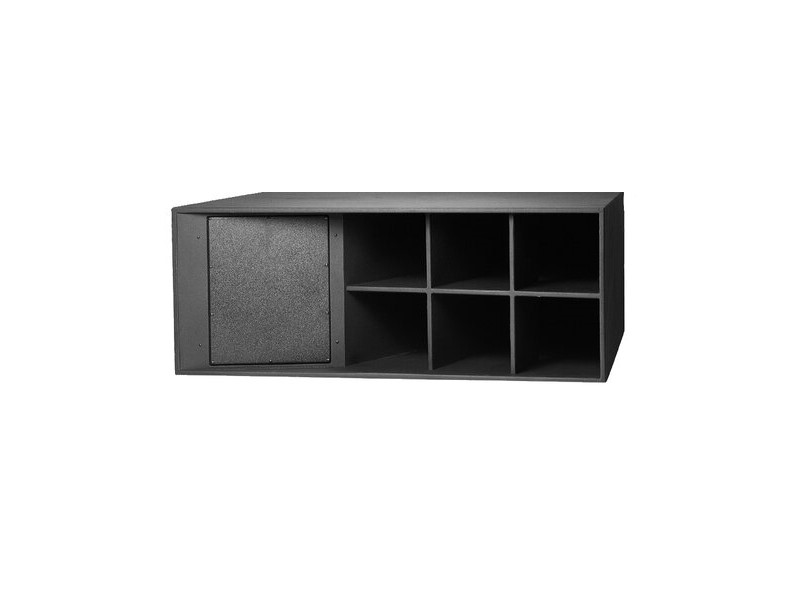

ASH6118 is a high power hornloaded subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver.
Features
- Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading.
- Maximum low frequency output & sensitivity.
- Excellent "punch."
- For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues.
| Frequency Range (-10dB) | 1 cabinet: 25 Hz – 250 Hz, 2 cabinets: 24 Hz – 250 Hz, 4 cabinets: 22 Hz – 250 Hz |
| Frequency Response (±3 dB) | 1 cabinet: 30 Hz – 200 Hz, 2 cabinets: 28 Hz – 200 Hz, 4 cabinets: 26 Hz – 200 Hz |
| Transducer Power Rating (AES) | 1 cabinet:1200 W (4800 W peak), 2 hrs, 800 W (3200 W peak), 100 hrs2 cabinets: 2400 W (9600 W peak), 2 hrs1600 W (6400 W peak), 100 hrs4 cabinets: 4800 W (19200 W peak), 2 hrs3200 W (12800 W peak), 100 hrs |
| System Power Rating | 1 cabinet: 800 W (3200 W peak), 100 hrs2 cabinets: 1600 W (6400 W, peak), 100 hrs4 cabinets: 3200 W (12800 W peak), 100 hrs |
| Maximum SPL (1m) | 30 Hz – 140 Hz:1 cabinet: 133 dB-SPL, cont avg (139 dB peak)2 cabinets: 138 dB-SPL cont avg (144 dB peak)4 cabinets: 144 dB-SPL cont avg (150 dB peak) |
| System Sensitivity (1w @ 1m) | 30 Hz – 150 Hz:1 cabinet: 102 dB2 cabinets: 104 dB4 cabinets: 107 dB| |
| Nominal Impedance | 8 ohms per cabinet |
