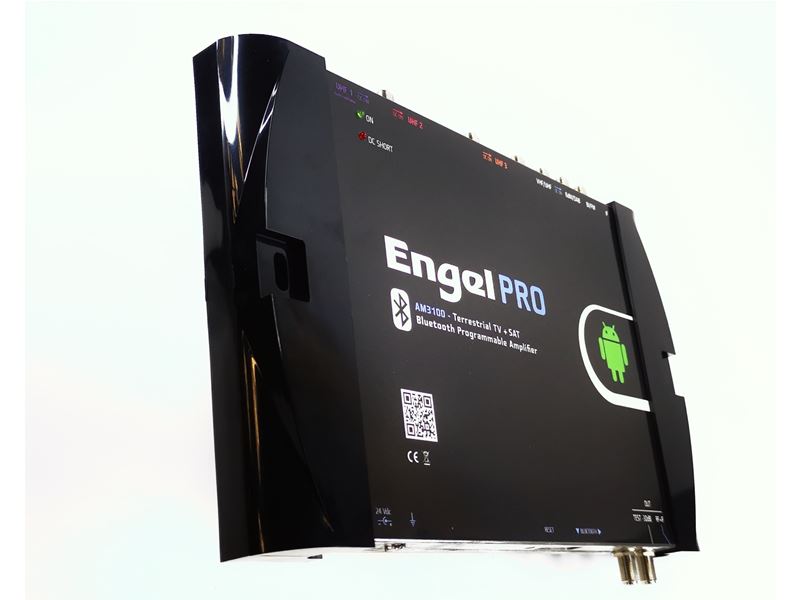

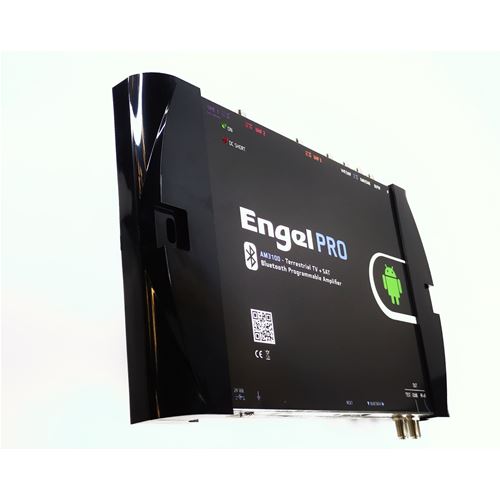

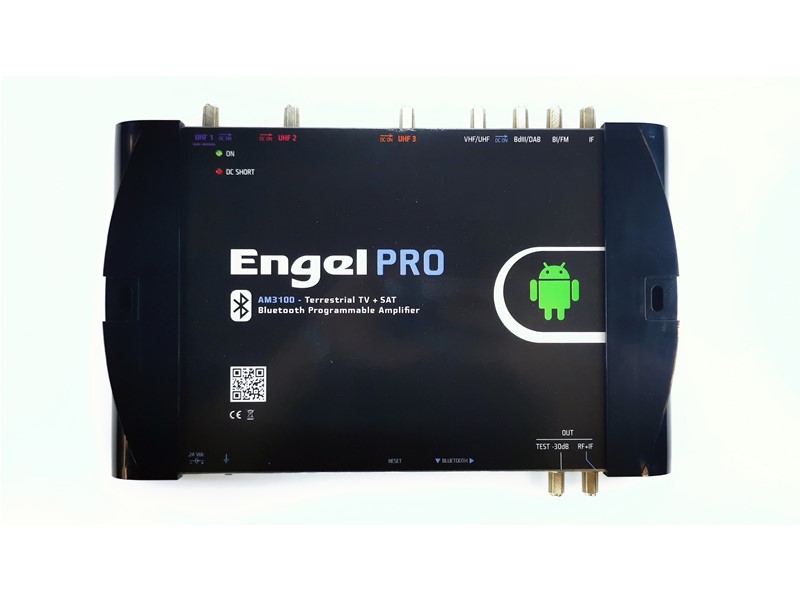

ENGEL PRO TERR + SAT Programmable Amplifier with Bluetooth

AM-3100

ENGEL

Whatsapp for enquiry Email for enquiry






Programmable head-end amplifier with 1 Satellite input + 6 Terrestrial (BI-FM, BIII-DAB, VHF, 3x UHF) that offers a gain of 55dB and a maximum output of 120dBμV.

Central with Bluetooth connection for programming from Android mobile devices (smartphone or tablet) automatically or manually. It can be connected via bluetooth in the headend or from any outlet by connecting a bluetooth antenna.

The equipment has 10 clusters, adjustable in gain and bandwidth (1 to 7 channels). Amplifier with high flatness throughout the UHF band for analog or digital channels.

Sends 12/24V power for antenna preamps as well as for the LNB (13/18V-0/22KHz) adjustable by menu.


What technical specifications does the Engel PRO AM3100 Programmable Amplifier have?

  • High quality programmable control unit and very fast installation
  • Automatic cluster configuration system (Autocluster and autolevel)
  • 10 adjustable clusters in gain and bandwidth (1 to 7 channels)
  • High selectivity, flatness and regularity over the entire UHF band for combined amplification of analog and / or digital channels
  • LTE filter on UHF1, UHF2, UHF3 and VHF / UHF inputs / Power supply for LNB (13 / 18V-0 / 22KHz) adjustable by menu
  • High level of output even for low cluster gains (common problem in other power plants on the market)
  • 12 / 24V power supply for antenna preamps, adjustable by menu and with ON / OFF switching for each antenna input
  • Lockable programming by security code / RF output test: -30 dB


EAN 8434128000017
Color Black
Type Programmable station
Entorno Interior
# Inputs 7
Outputs 1
Gain 55
Max. output level Ganancia (dB/uV) 120
LTE compatible No
Current bypass Satellite, Terrestrial
Product Brand Engel Axil
