Line Amplifier for satellite FI (950-2150MHz) with Terrestrial mix V/UHF (5-860MHz), designed for DTT-only communities that want to install a parabolic antenna to also watch satellite channels.

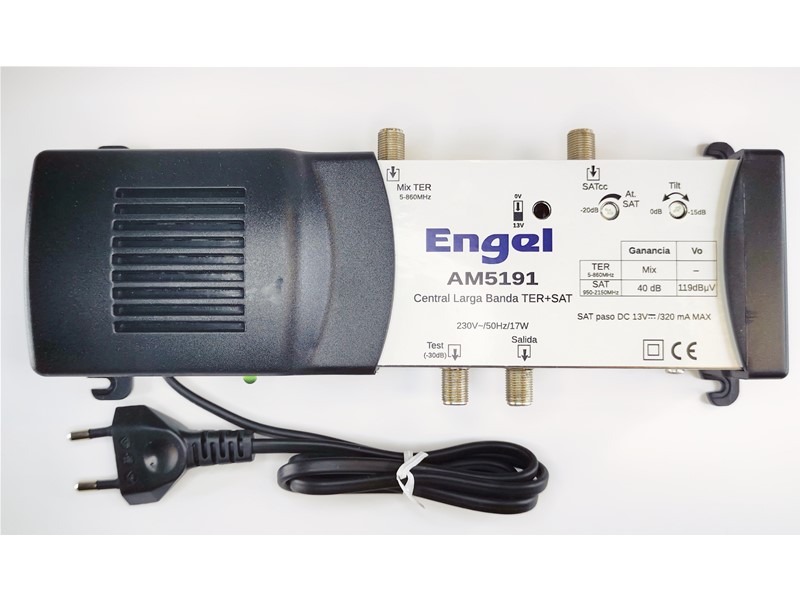

This AM5191 amplifier from Engel amplifies the satellite band and mixes it with the terrestrial one to distribute it to all the users of the building through the existing wiring. It offers 40dB of gain in SAT, adjustable -20dB, and supports up to 119dBμV output level. The amplifier itself powers the LNB, selecting the voltage (0-13V) and the tone (0-22kHz).

Compact central unit with dimensions 255x115x65mm with integrated power supply and type F connection system. Includes test output (-30dB) to carry out tests without interrupting the service.

Amplifier suitable for watching Movistar channels through the Astra 19.2º East satellite.
