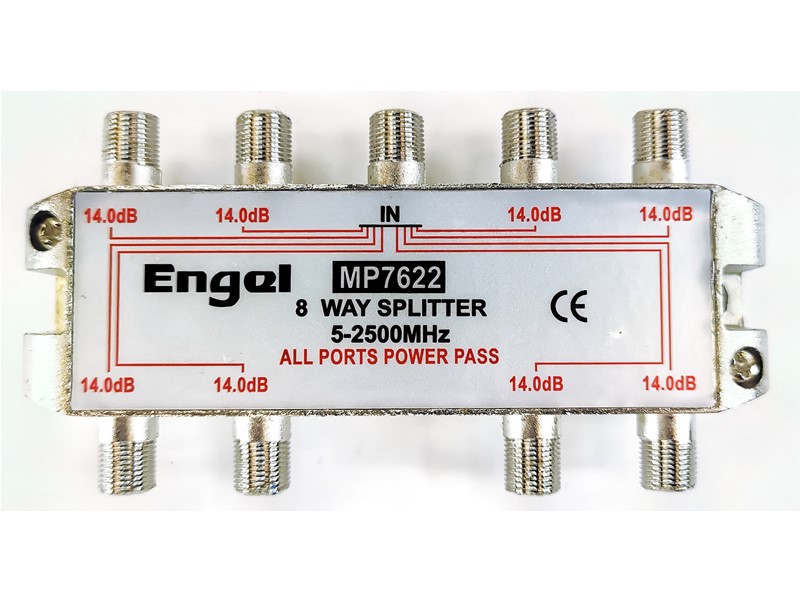

Terretre and Satellite TV (5-2400 MHz) splitter with 8 outputs, 13.2dB of attenuation and DC current pass from all outputs to power the LNB (max. 300mA).
Passive TV-SAT distribution equipment, with easy-to-mount threaded F-type connection. High shielding, low attenuation and flatness of band response.
- Freq Band (Mhz): 5-2400
- No. outputs: 8
- 47 MHz Loss: 13.2 ± 0.7 dB
- 900 MHz Loss: 13.2 ± 0.7 dB
- 2150 MHz Loss: 15 ± 0.9 dB
- RF/IF decoupling: >16 dB
- Dimensions: 120x60x25 mm
