LD SYSTEMS CURV 500 Series 1000 Watts RMS Compact Touring Array System

CURV-500TS

LD Systems

Whatsapp for enquiry Email for enquiry

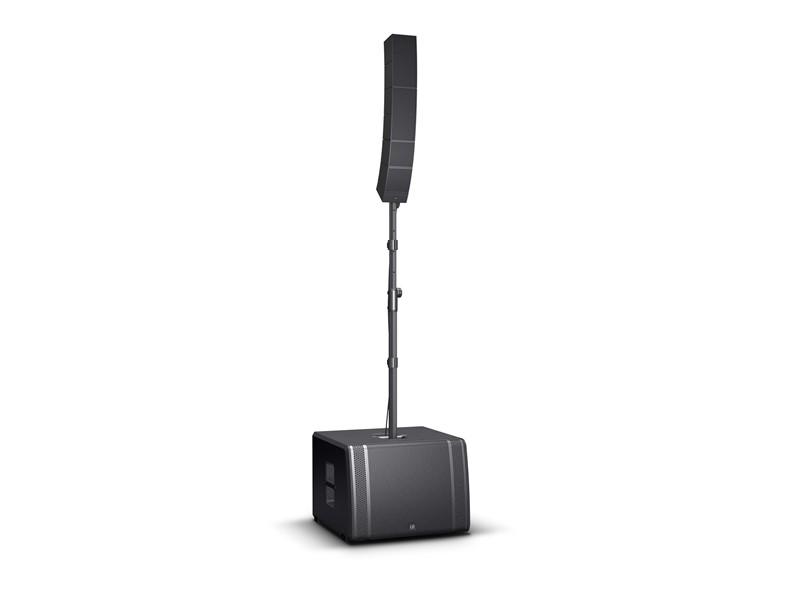

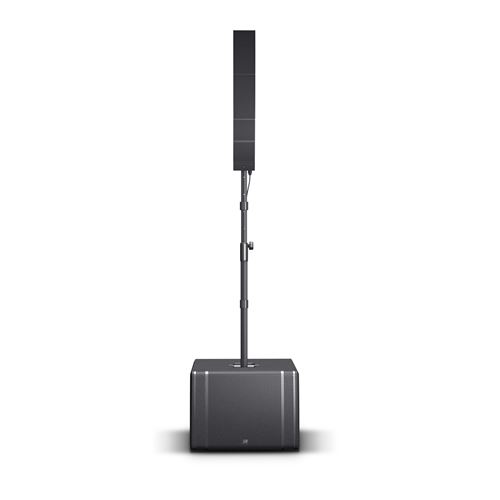

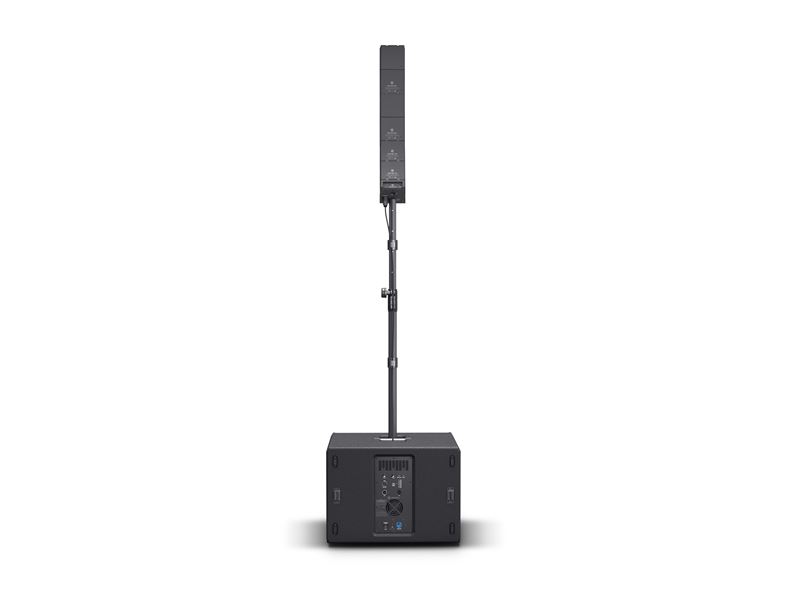

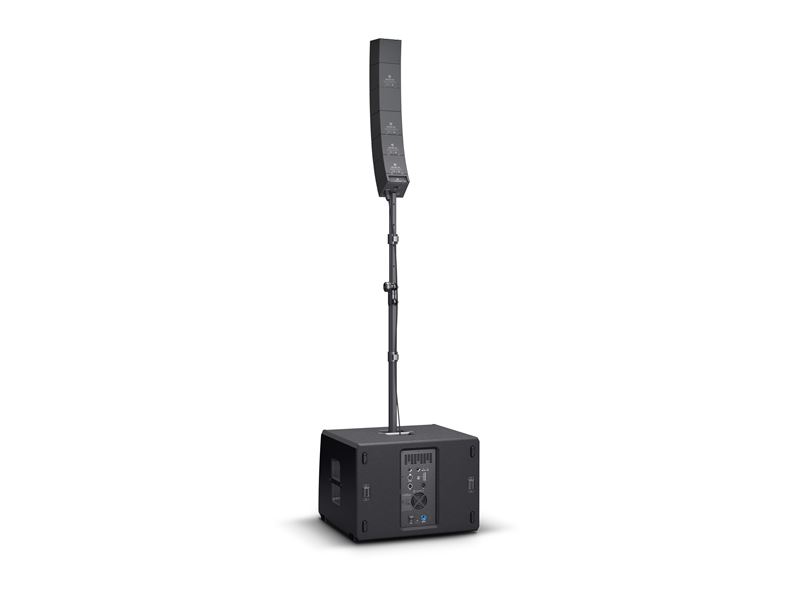

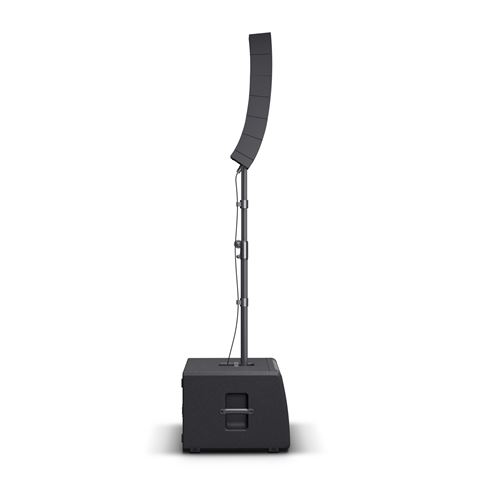

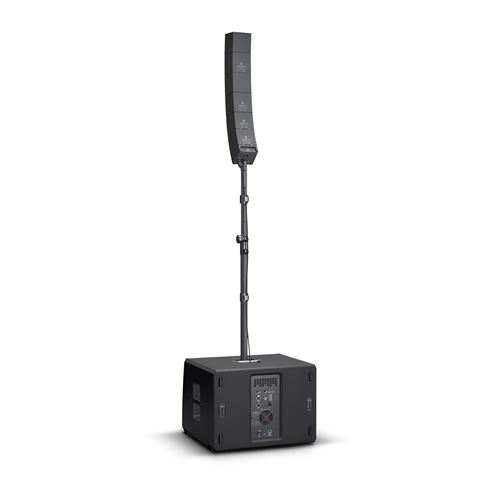

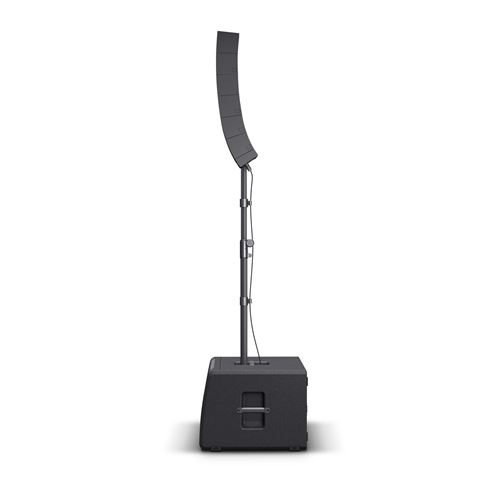

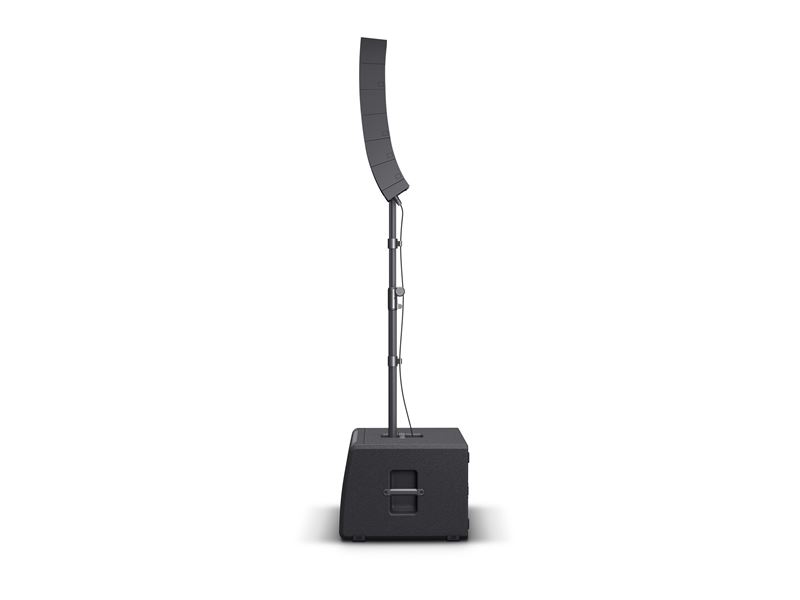

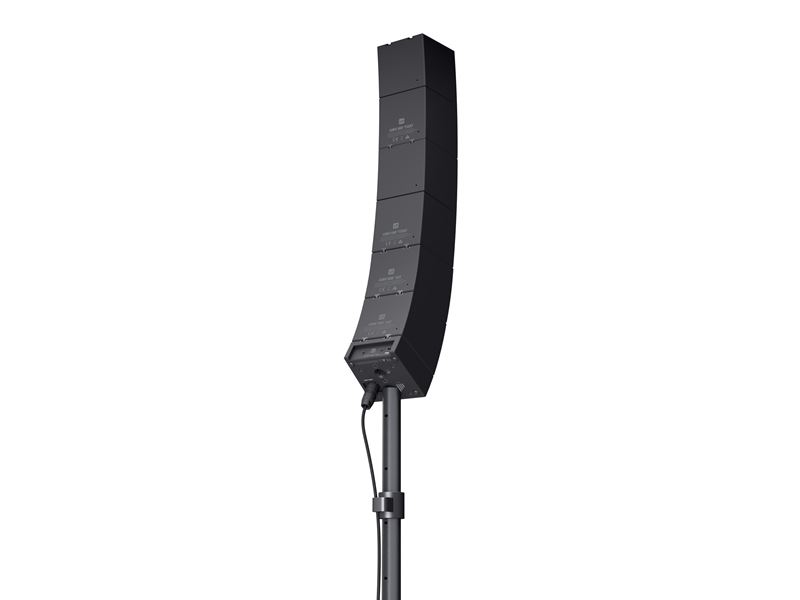

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

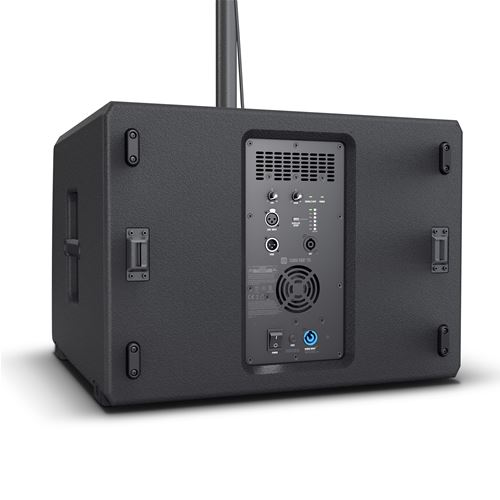

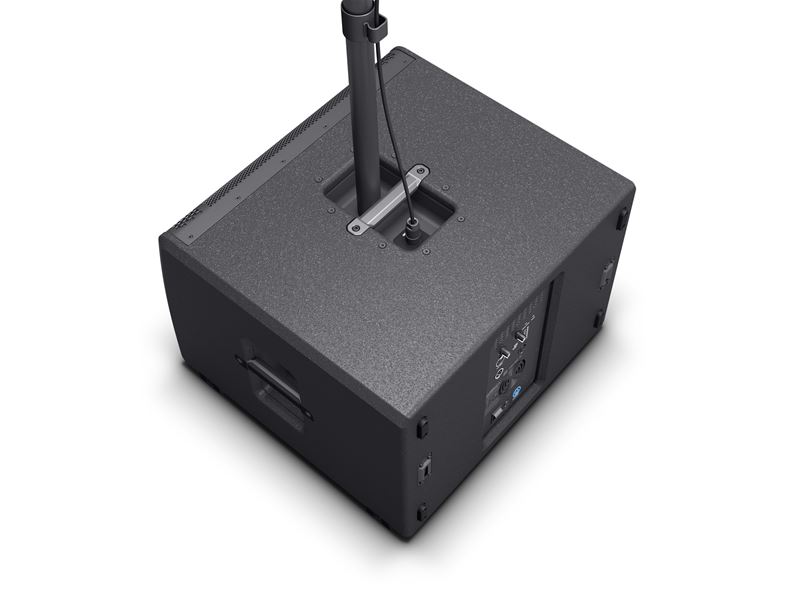

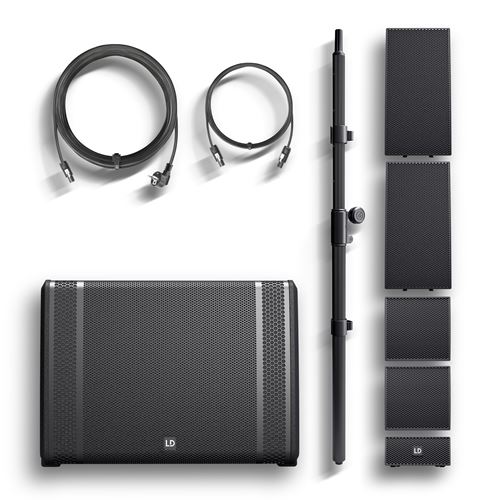

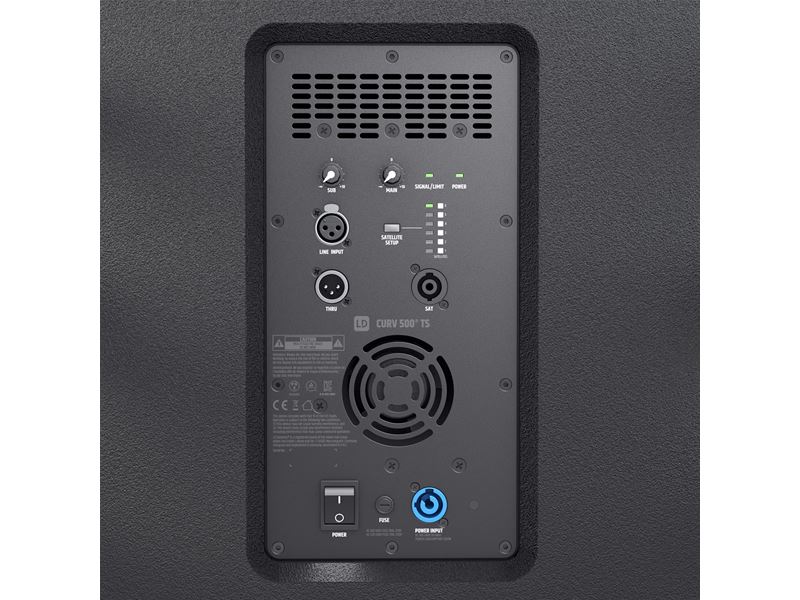

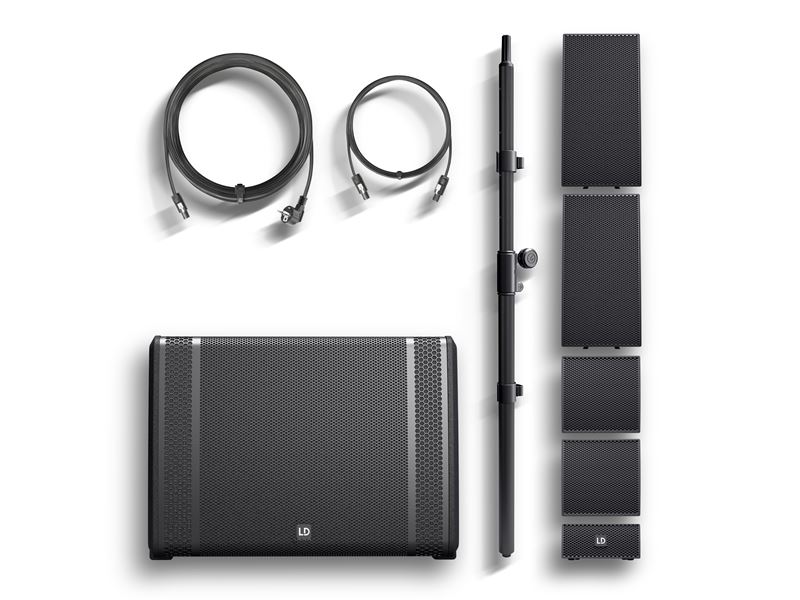

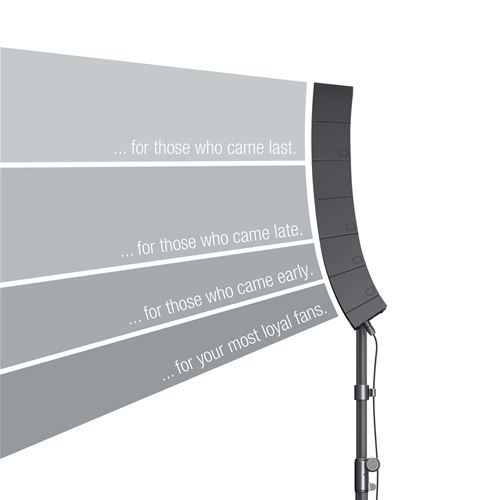

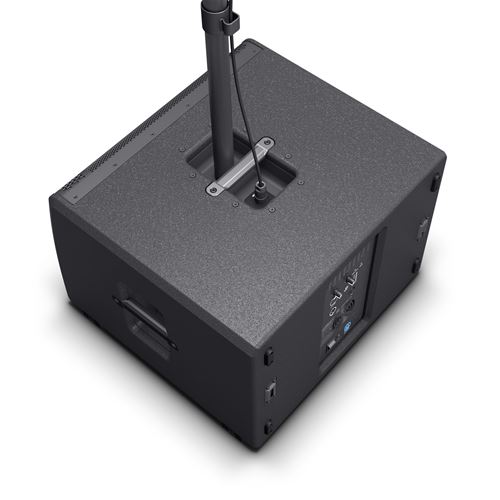

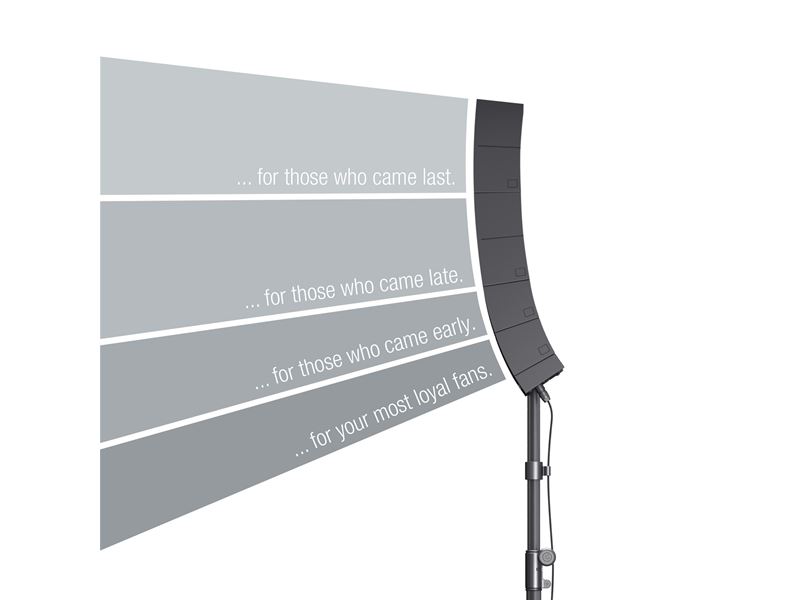

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.


General
Product type PA Complete Systems
System output (RMS): 1000 W
Number of array satellites 4
Number of Smartlink adapters 1
Number of subwoofers 1
Max. SPL (continuous) 125 dB
Color Black
Max. SPL (peak) 131 dB
Frequency response 40 - 20000 Hz
Dispersion (H x V) 110° horizontal, vertical 34 °
RMS Subwoofer: 700 W , Array Satellites: 300 W
Peak power Subwoofer: 1400 W , Array Satellites: 600 W
Amplifier Class D
Weight 48,2 kg
Protection circuits DSP-based multiband limiter, overload, short circuit, thermal overload
Accessories (included) Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)

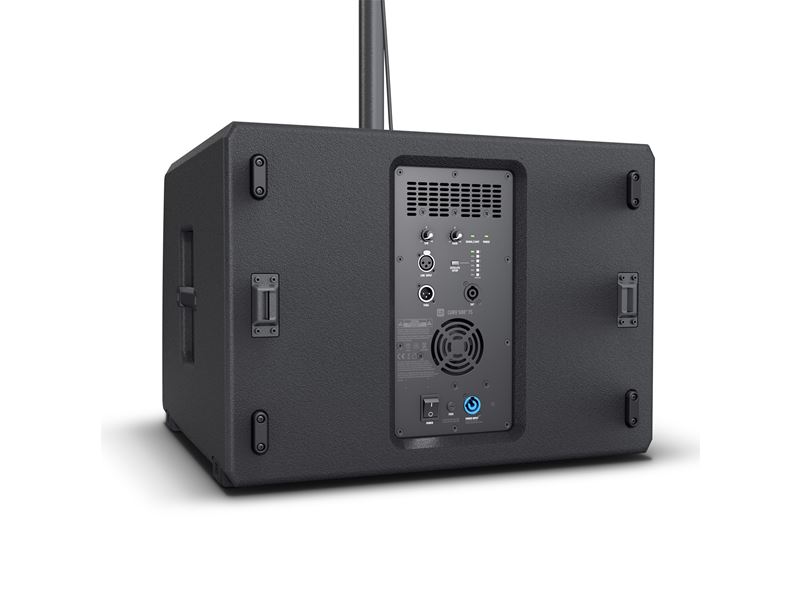

Subwoofer
Low/mid driver dimensions 15 "
Low/mid driver dimensions (mm) 381 mm
Cabinet construction Bass Reflex
Housing material plywood
Cabinet surface Polyurea
Dimensions Subwoofer (W x H x D) 600 x 437 x587 mm
Subwoofer weight 35.5 kg

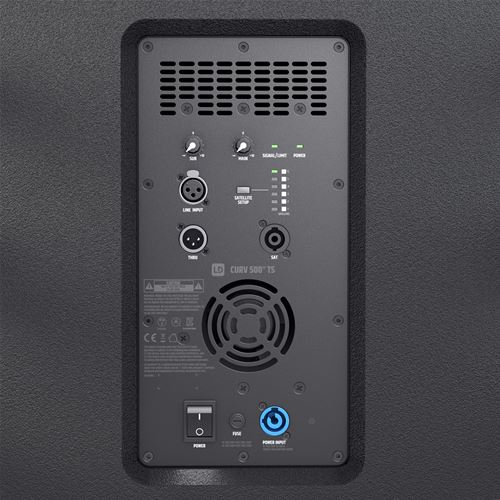

Subwoofer features 4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20

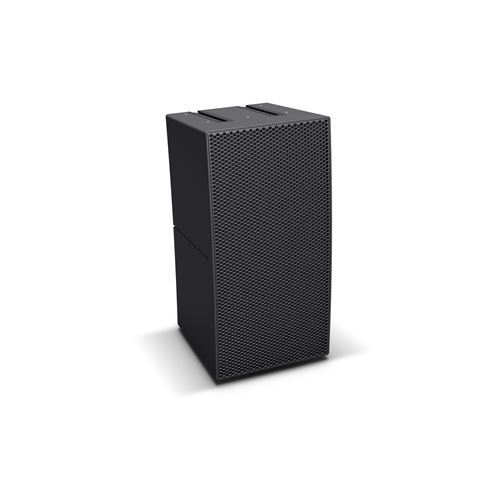

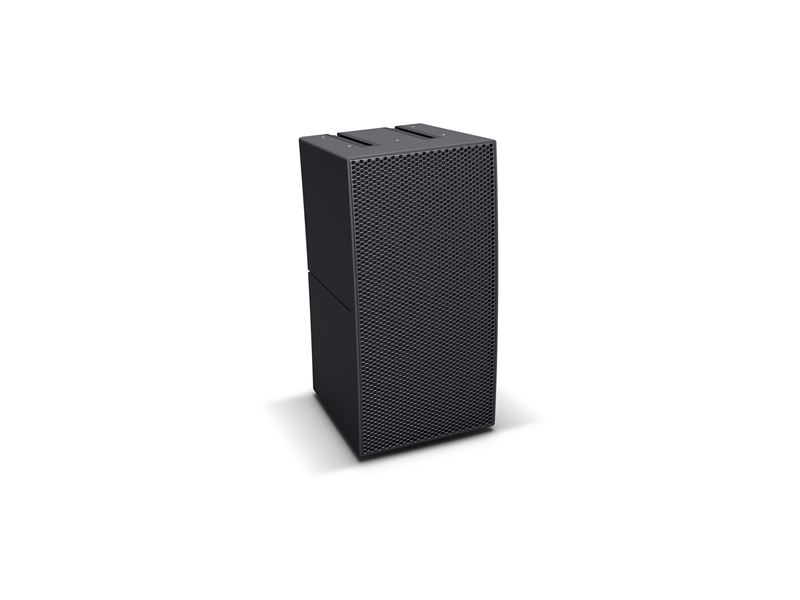

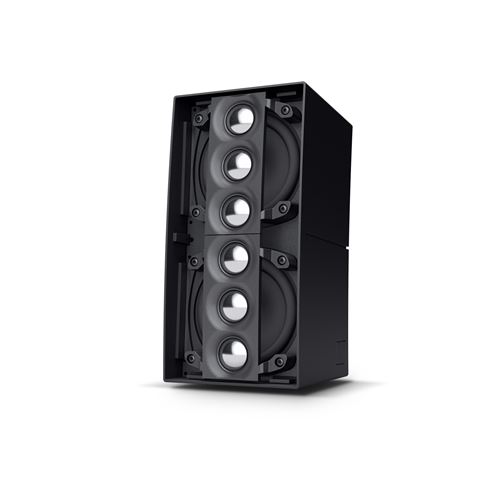

LDCURV500DSAT - LD Systems CURV 500 TS Duplex Satellite Black
Product type Installation Loudspeakers
Type Wall-mounted Loudspeaker

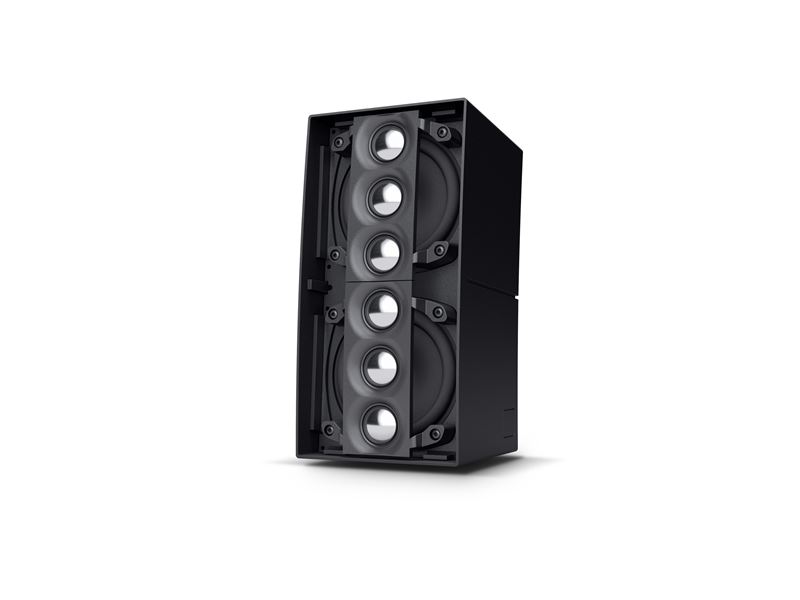

Midrange size 2 x 4 "
Tweeter dimensions 6 x 1 "
Load rating (RMS) 80 W
Peak power 160 W
Dispersion 110° horizontal, vertical (each satellite) 7 °
Impedance 8 Ohm(s)
SPL (1W/1m) 91 dB
Max. SPL 110 dB
Material Die-cast aluminium
Surface Powder coated
Color Black
Width 122 mm
Height 240 mm
Depth 126 mm
Weight 3,3 kg
LDCURV500S2 - LD Systems CURV 500 TS Two Array satellites for the CURV 500® Portable Array System, black
Product type PA Complete Systems Accessories
Type Array Satellites
Midrange size 1 x 4 "
Tweeter dimensions 3 x 1 "
Load rating (RMS) 40 W
Peak power 80 W
Speakers per amplifier channel (DSP44/45K) 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion 110° horizontal, vertical (each satellite) 10 °
Impedance 16 Ohm(s)
SPL (1W/1m) 88 dB
Max. SPL 104 dB
Material Die-cast aluminium
Surface Powder coated
Color Black
Width 122 mm
Height 122 mm
Depth 122 mm
##Weight (pair) 3.44 kg
Features WaveAhead® Technology

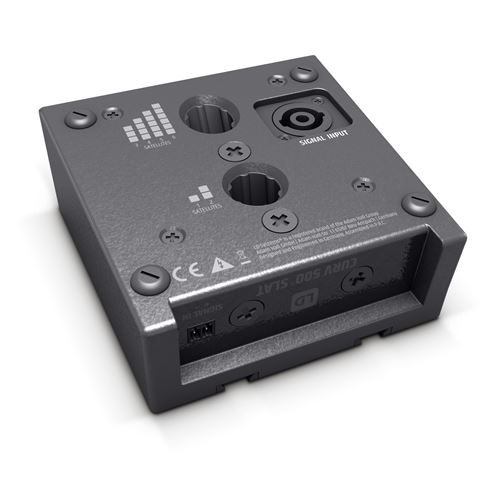

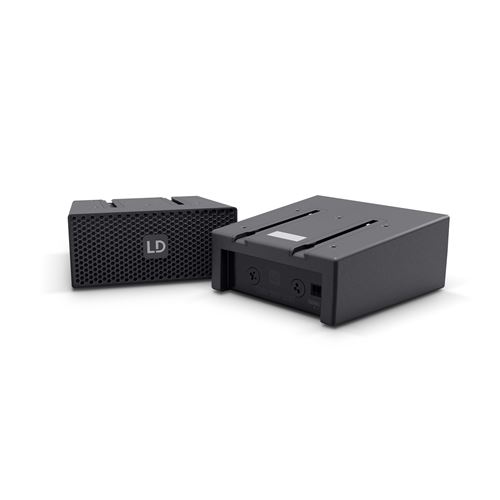

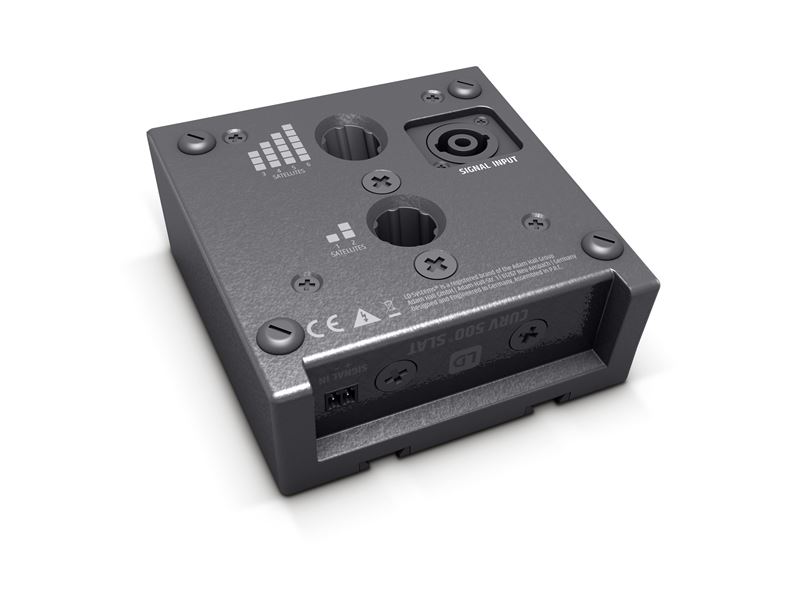

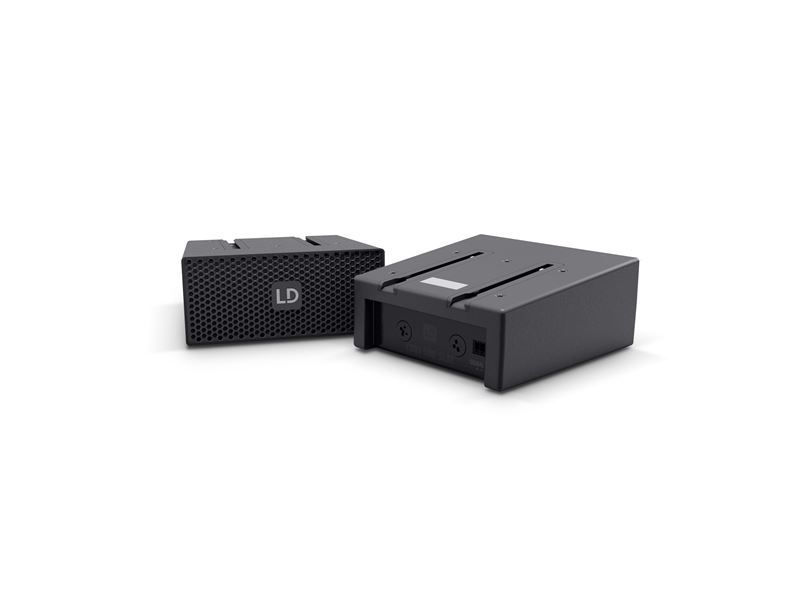

LDCURV500SLA - LD Systems CURV 500 TS SmartLink Adapter for up to six LD CURV 500® Satellites, Black
Product type PA Complete Systems Accessories
Type Smartlink® Adapter
Material Die-cast aluminium
Surface Powder coated
Connectors 1x Speakon compatible
Color Black
Width 122 mm
Height 57 mm
Depth 57 mm
Weight 0,35 kg
Features 2x M6 thread for optional wall mount
