LD SYSTEMS Dave G3 Series 1200 Watts RMS Compact 18" Powered 2.1 Sound System with 18" Subwoofer

DAVE-18/G3

LD Systems

Whatsapp for enquiry Email for enquiry

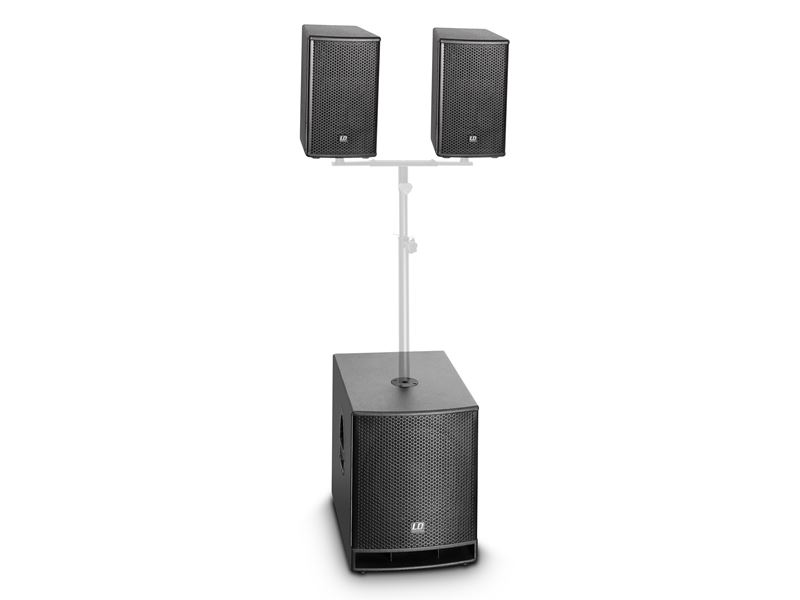

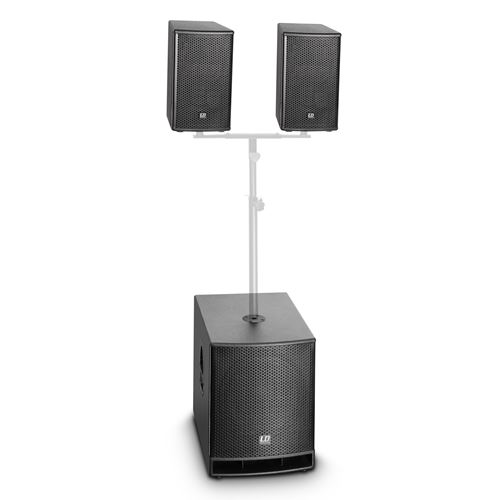

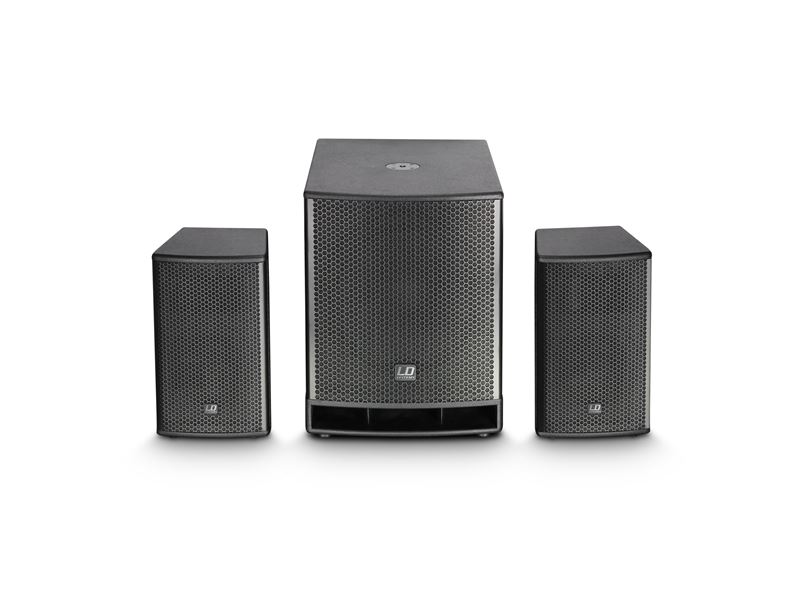

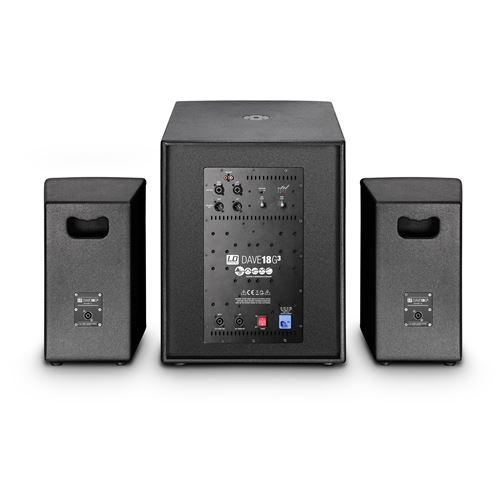

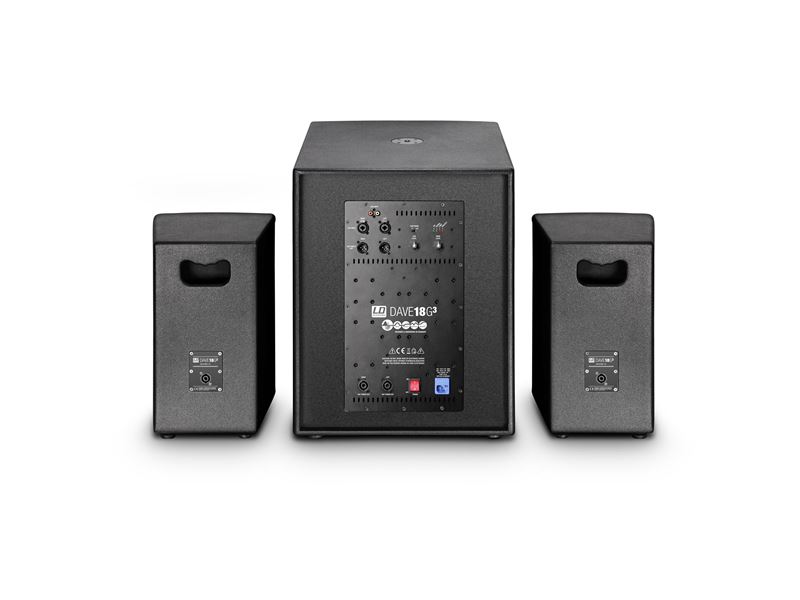

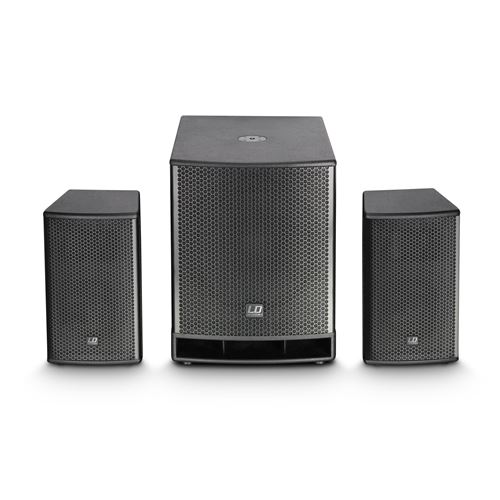

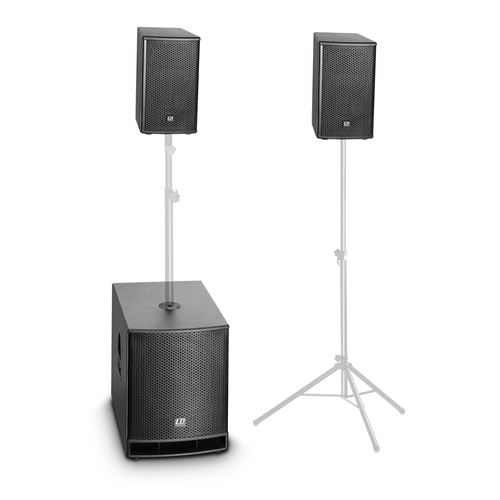

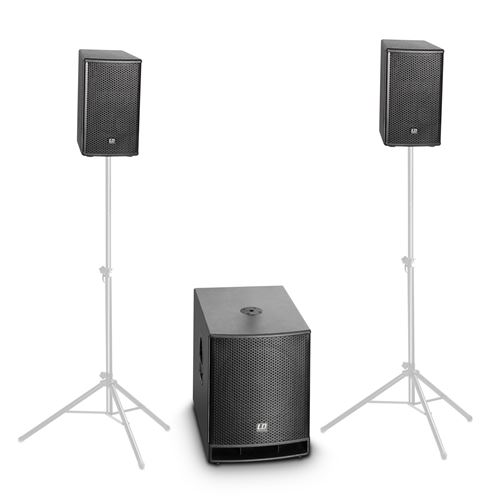

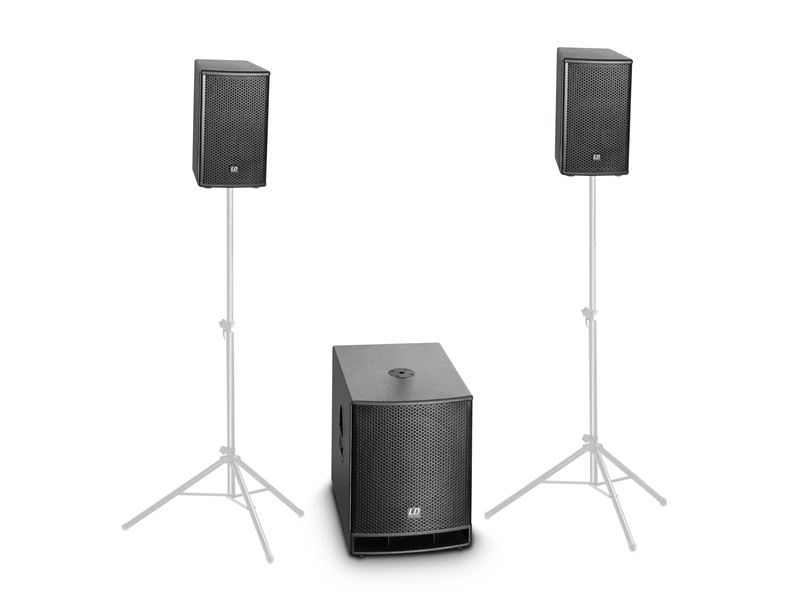

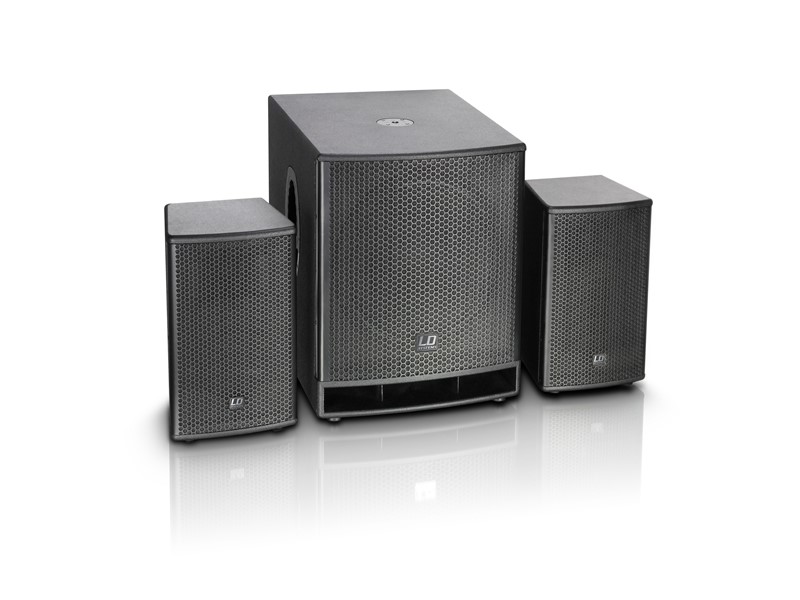

The DAVE 18 G3 is a powerful, yet easily portable subwoofer plus dual satellite PA system delivering crystal clear, dynamic audio with punchy lows in a compact package. With a 32 Hz – 20 kHz frequency response and peak SPL of 135 dB it is an excellent choice for a wide variety of mobile and installed sound applications.

Made from hard-wearing 15mm birch plywood the sealed satellite cabinets are loaded with 10"/1“ coaxial driver while the bass reflex sub enclosure houses an 18" woofer and the Class D amplification modules with a power output of 4.800 watts. Digital signal processing, multiband limiter, short cuircuit and overcurrent protection ensure superior sonic performance and reliable operation. The DAVE 18 G3's subwoofer provides XLR, 6.3mm and RCA input for a wide range of signal sources. It also features individual system and sub level controls, a phase reversal switch and the satellite connectors are Speakon compatible.

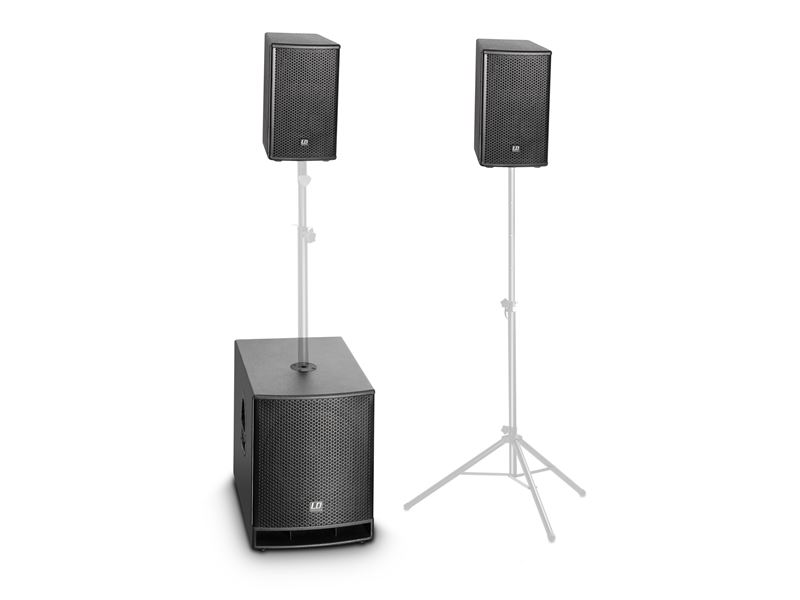

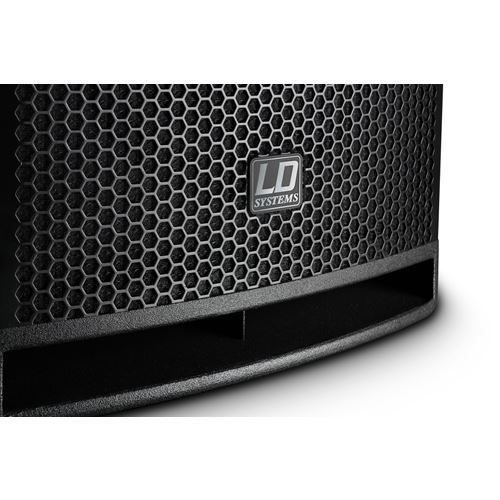

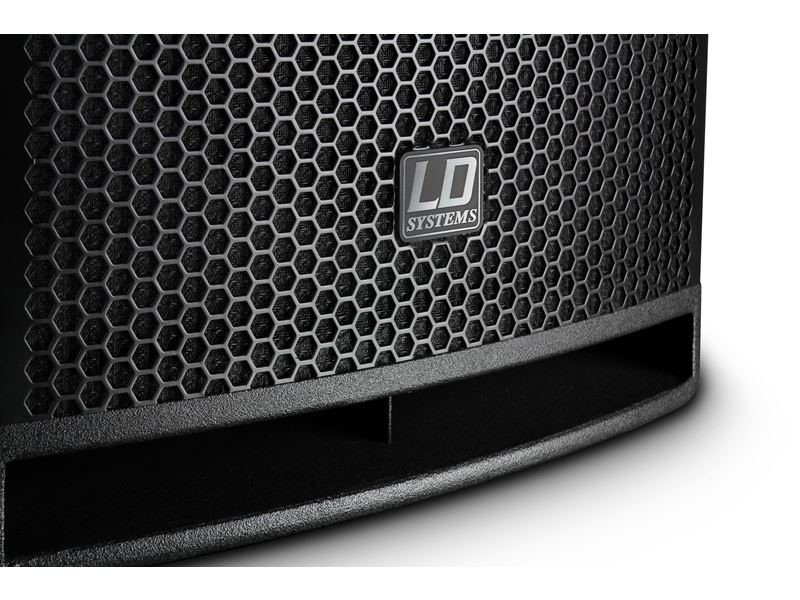

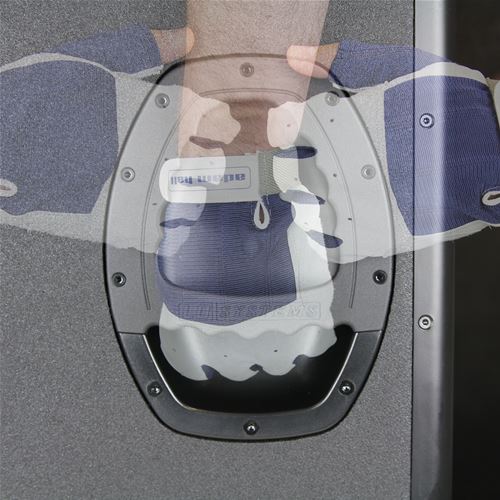

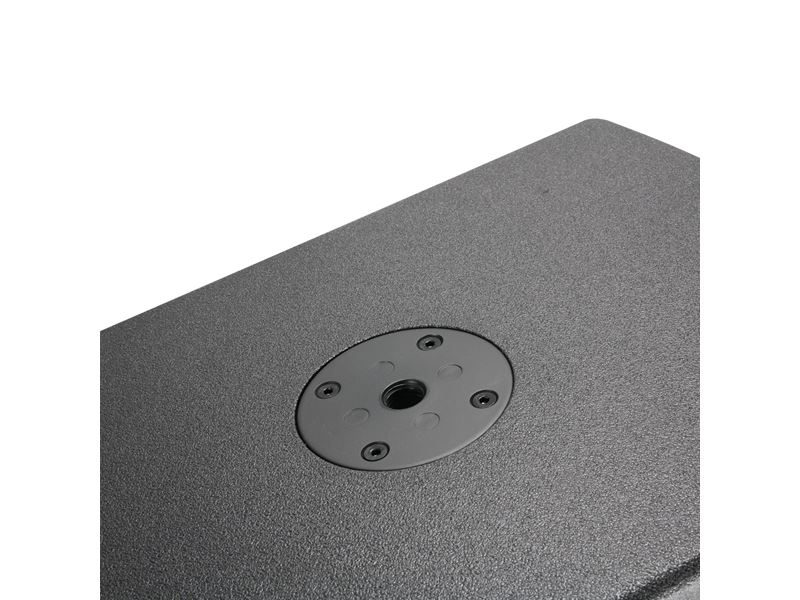

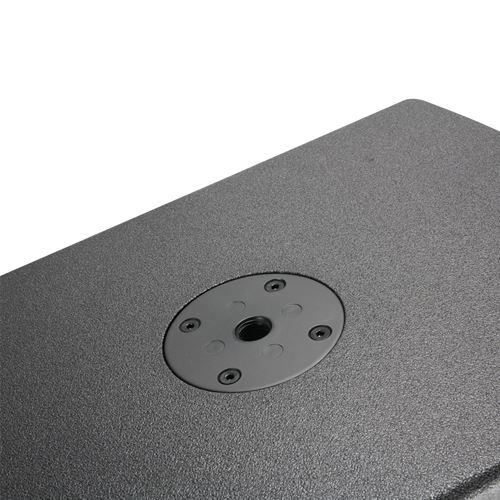

The DAVE 18 G3 hardware includes steel grilles, an M20 pole insert and LD's Evolutive handles on the sub for transport convenience as well as adjustable tilt stand mounts on the satellite speakers for optimum coverage angles.






General
Weight 63,2 kg
Product type PA Complete Systems
Color Black
Max. SPL (continuous) 124 dB
Max. SPL (peak) 135 dB
Frequency response 32 - 20000 Hz
Dispersion (H x V) 75 x 75 °
Subwoofer
Low/mid driver dimensions 18 "
Woofer size 457.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 4 "
Woofer voice coil (mm) 101.6 mm
Cabinet construction Bass Reflex
Cabinet material 18 mm Plywood
Cabinet surface texture paint
Subwoofer width 510 mm
Subwoofer height 635 mm
Subwoofer depth 710 mm
Subwoofer features LD Systems "Evolutive" handles, threaded flange M20
Mid/Hi System
Midrange size 10 "
Midrange size 254 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 2 "
Midrange voice coil 50.8 mm
Horn coaxial
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1

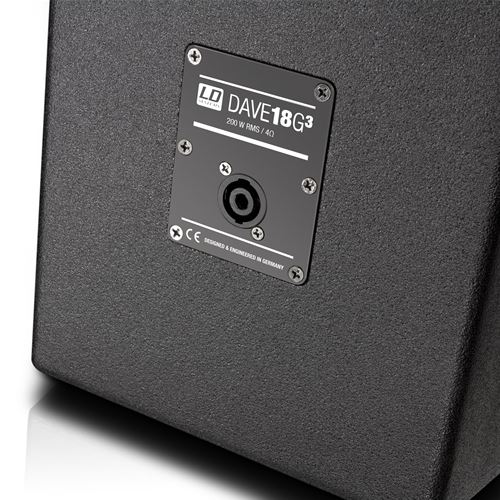

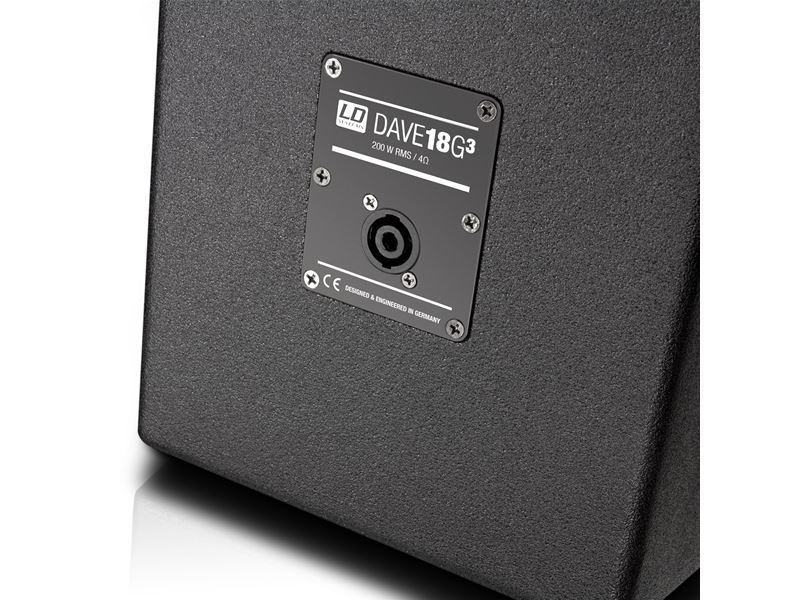

Speaker input connections Speakon compatible
Cabinet construction mid/high Closed
Mid/Hi system cabinet material 15 mm Plywood
Mid/Hi system cabinet surface texture paint
Mid/Hi system width 300 mm
Mid/Hi system height 460 mm
Mid/Hi system depth 263 mm

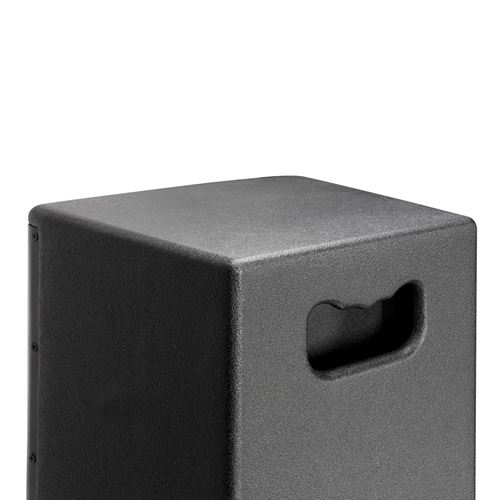

Mid/Hi system features ergonomically shaped insert handles, SM707 stand mount 36 mm

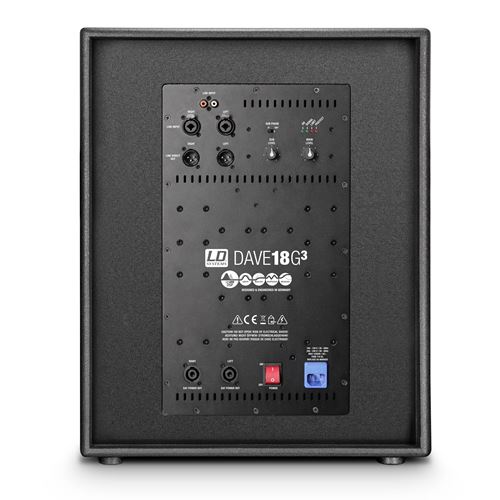

Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 1200 W
Amplifier output system (peak) 4800 W
Protection circuits limiter, overload, short circuit
Cooling Convection

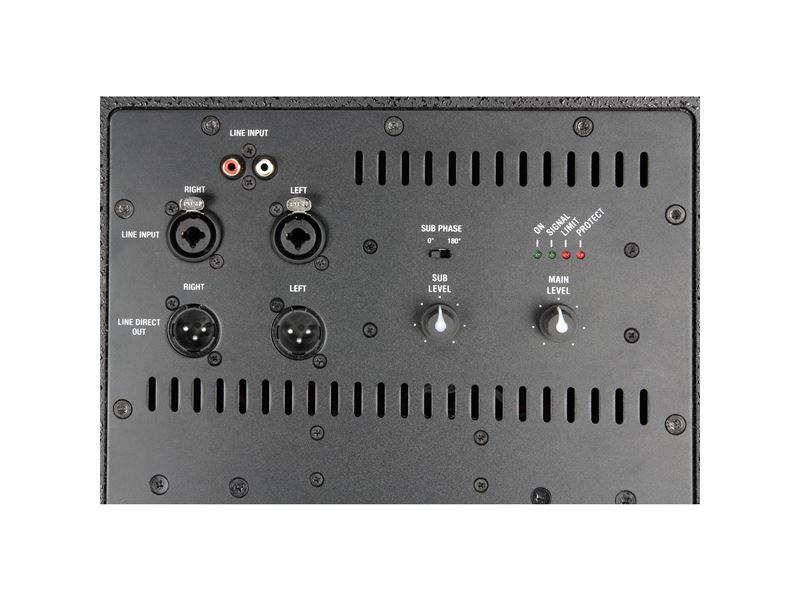

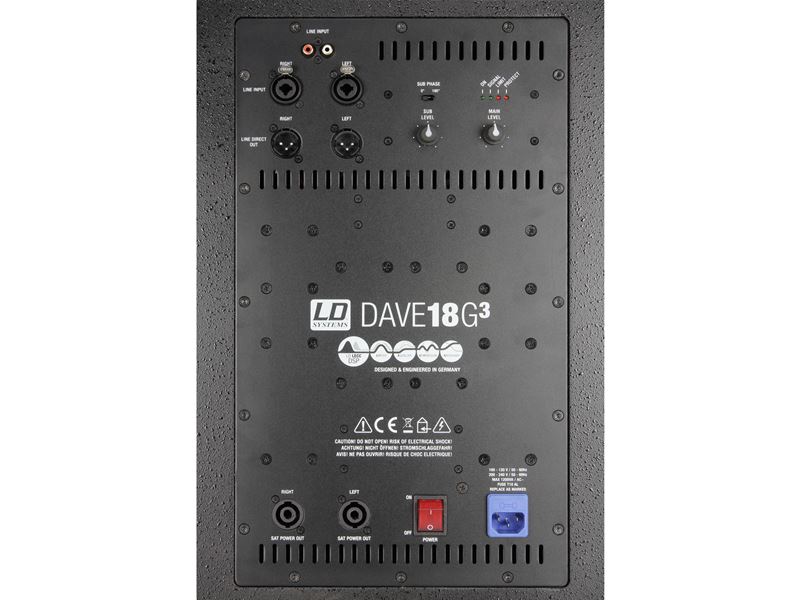

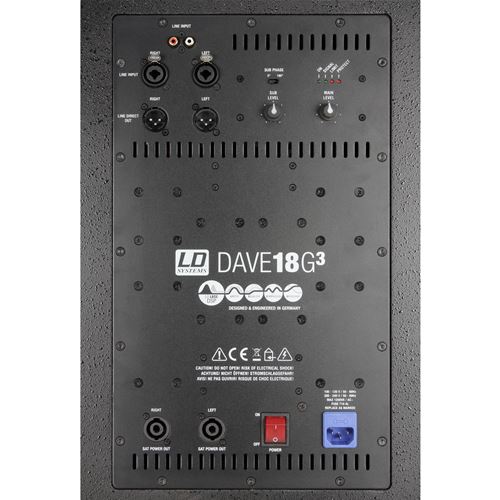

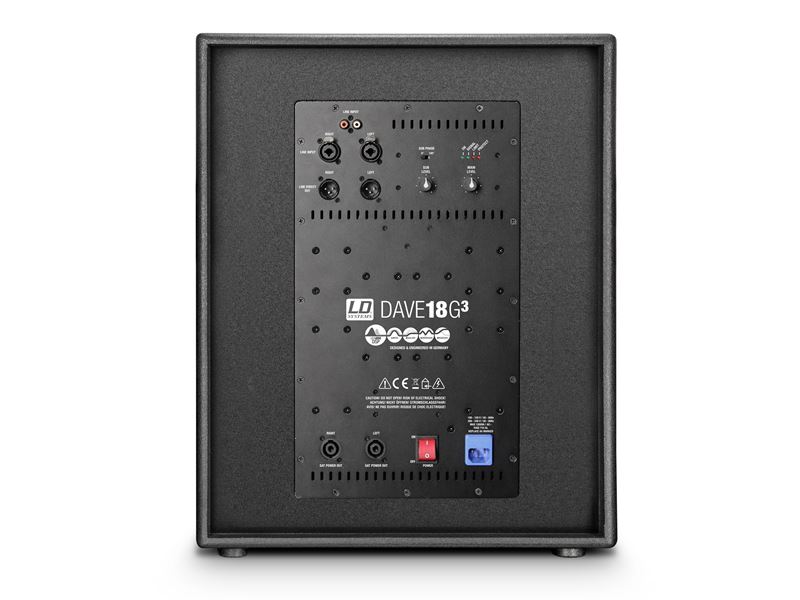

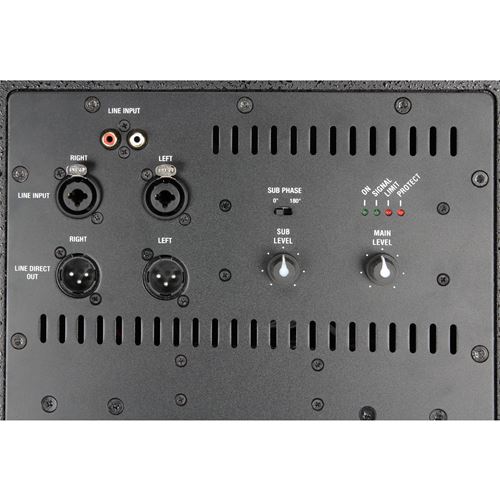

Controls Main level, Power, Sub level, Subwoofer Phase Reverse
Indicators Limit, On, Protect (protection circuit engaged), Signal
Operating voltage Switching power supply

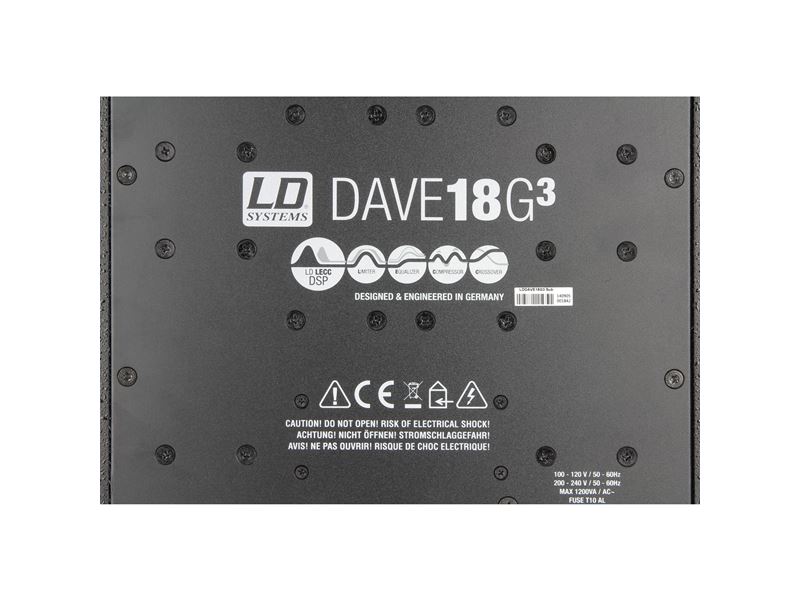

Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Power consumption 1200 VA
Line inputs 2
Line input connectors 6.3 mm jack, RCA, XLR
Line output connectors XLR
Loudspeaker outputs 2
Speaker output connections Speakon compatible
