LD SYSTEMS MAUI Series 120 Watts RMS @ 8 Ohms Passive Installation Speaker with Transformer (Black)

MAUI-I1

LD Systems

Whatsapp for enquiry Email for enquiry






For acoustically challenging interiors where music and speech must be clearly understood, even in the rearmost rows, there is one solution - MAUI® i1.

This feature is achieved with nine 3" mid-range drivers, two 1" neodymium high-frequency drivers and a specially developed BEM-optimized Waveguide. This combination avoids unnecessary reflections on the floor and on ceilings by keeping the vertical dispersion as narrow as possible and the horizontal one as wide as possible.

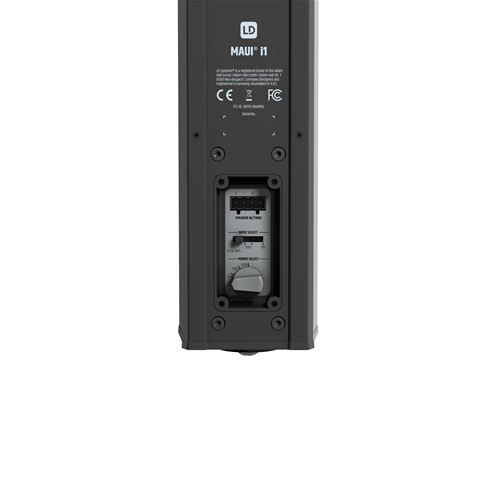

Installers can easily integrate the MAUI® i1 in any constant-voltage audio system. This is made possible with an 8 Ohm / 70 V / 100 V selector switch. In addition, you can tap the power down to 60 W, 30 W, 15 W and 7.5 W depending on how many speakers you need to run in parallel and for a more efficient performance. At 8 Ohms, you can benefit from the best frequency response and highest 120 W RMS power rating.

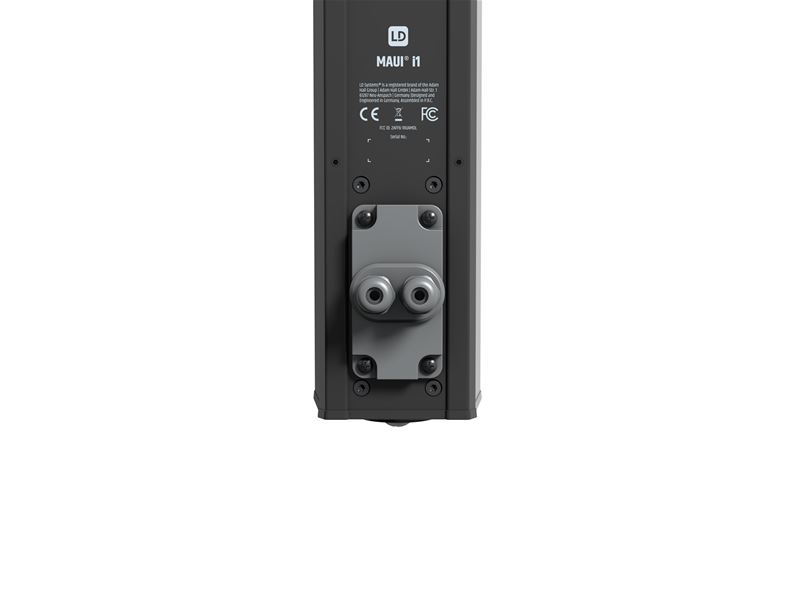

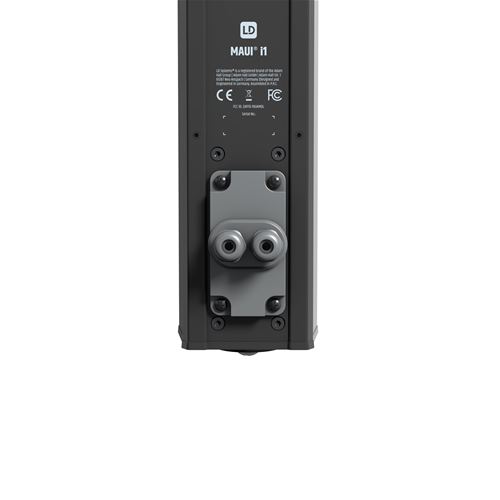

For outdoor use, MAUI® i1 features weather treated cones, an aluminum loudspeaker grille and a weatherproof cover for the connection panel. That way, no water can enter the panel and your Loudspeaker stays rust free.

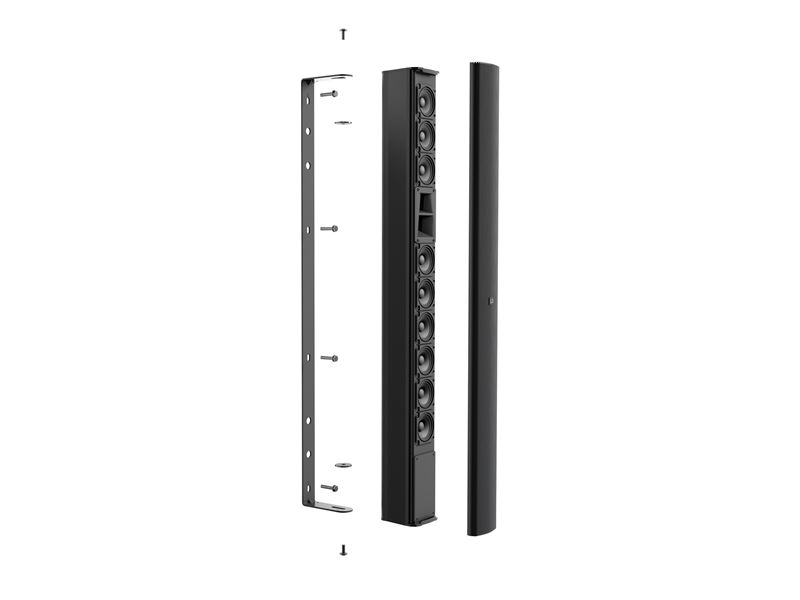

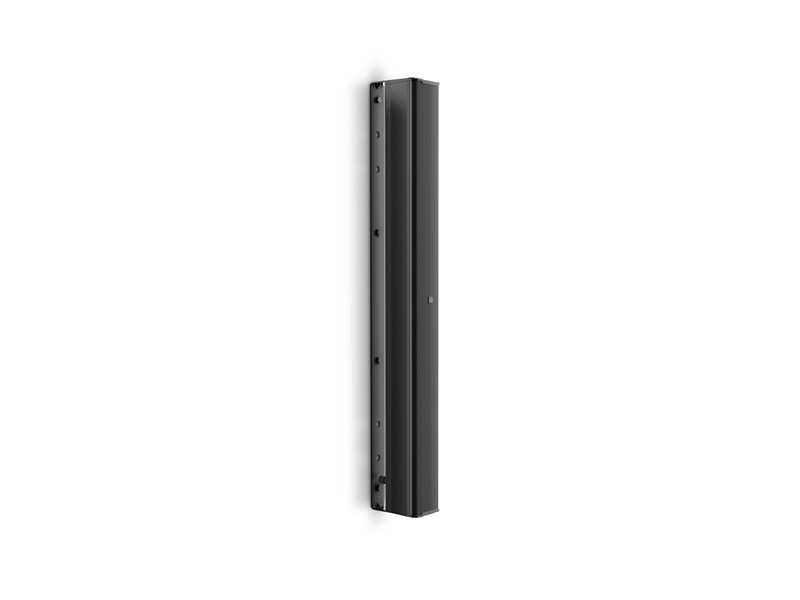

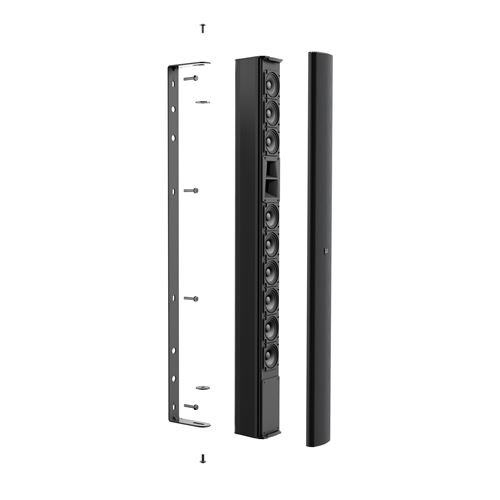

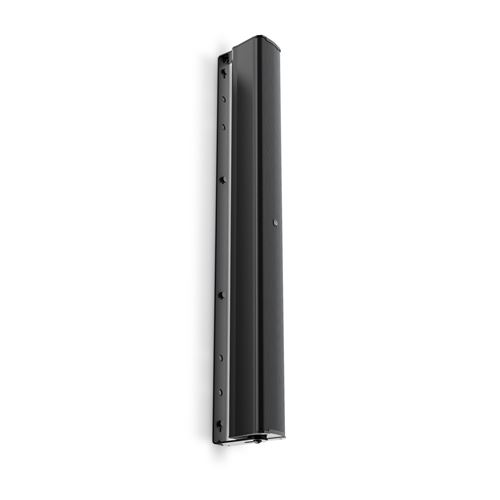

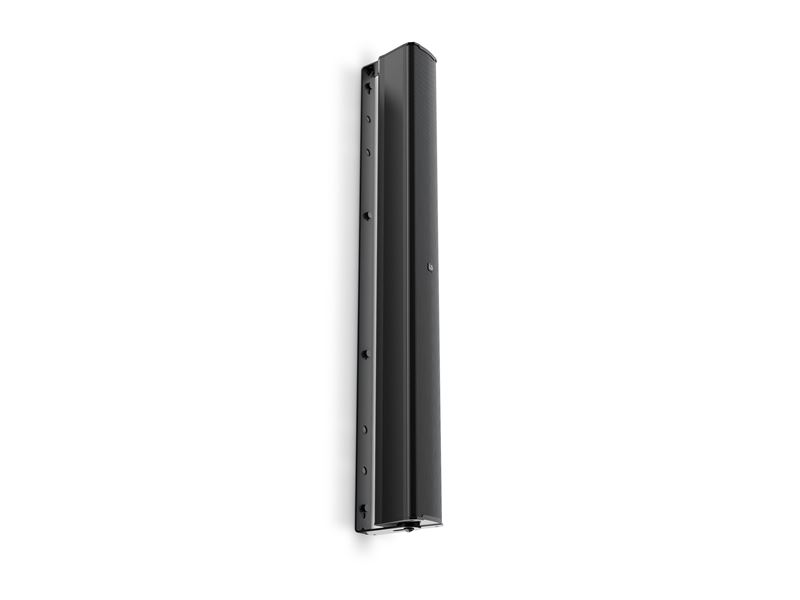

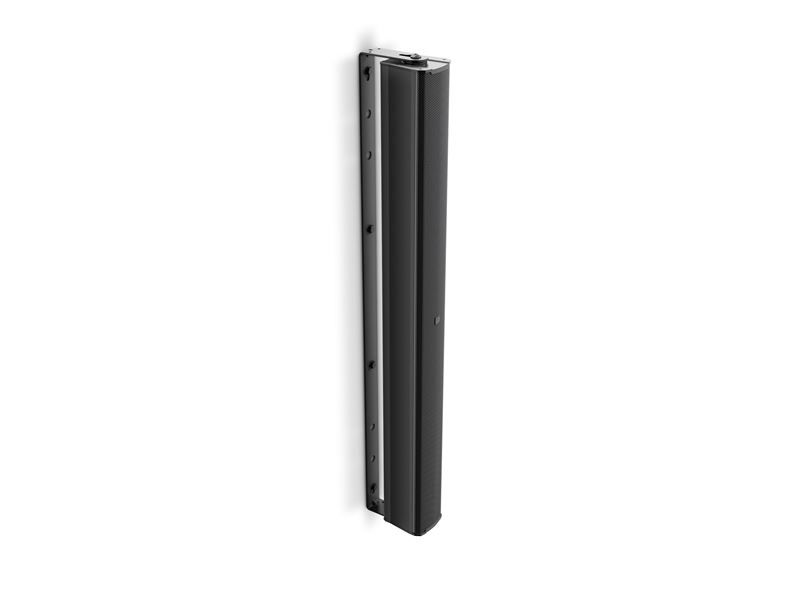

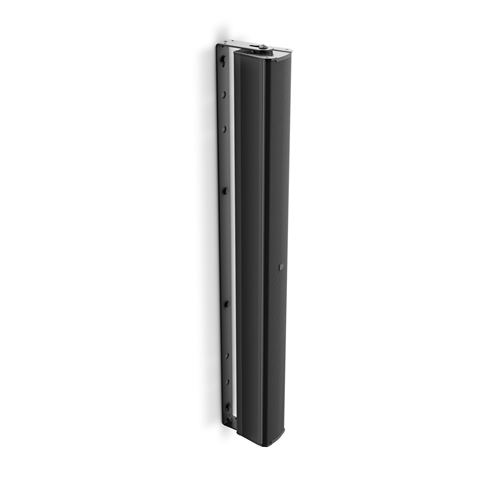

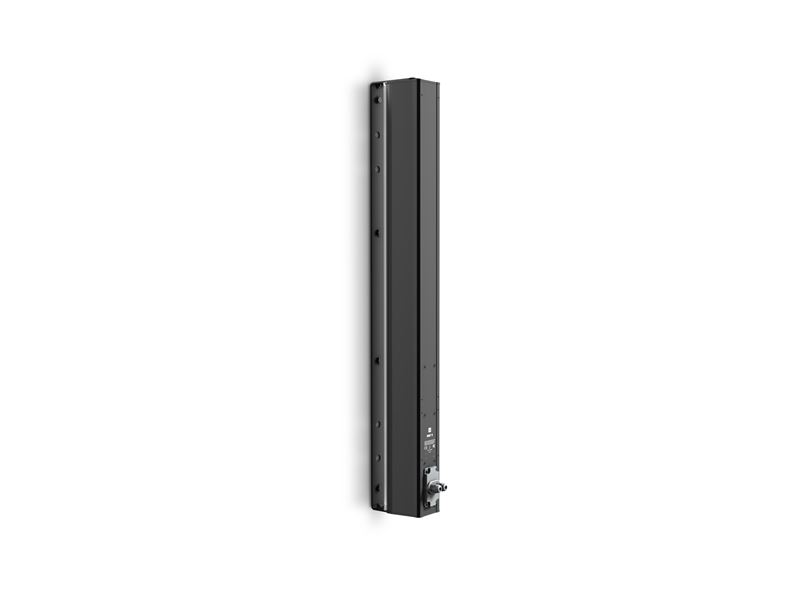

Surface installation is easy with the included U-bracket and with its black or white color selection, the loudspeaker blends unobtrusively and discreetly into almost any location.

The multiple award-winning MAUI® series has been expanded with the completely revised i1 and adapted to the special requirements of indoor and outdoor installations. All of this definitely makes MAUI® i1 the right choice for your demanding fixed installations.


General
Product type Installation Loudspeakers
Type Passive
Low/mid driver dimensions 9 x 3 "
Woofer size 76.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 2 x 1 "
HF driver size 25.4 mm
HF driver magnet Neodymium
HF driver brand Custom-made
Dispersion (H x V) 120° x 30 °
Load rating (RMS) 120 W
Peak power 480 W
Frequency response 130 - 19000 Hz
Crossover frequency 2500 Hz
SPL (1W/1m) 94 dB
Max. SPL 116 dB
Impedance 8 Ohm(s)

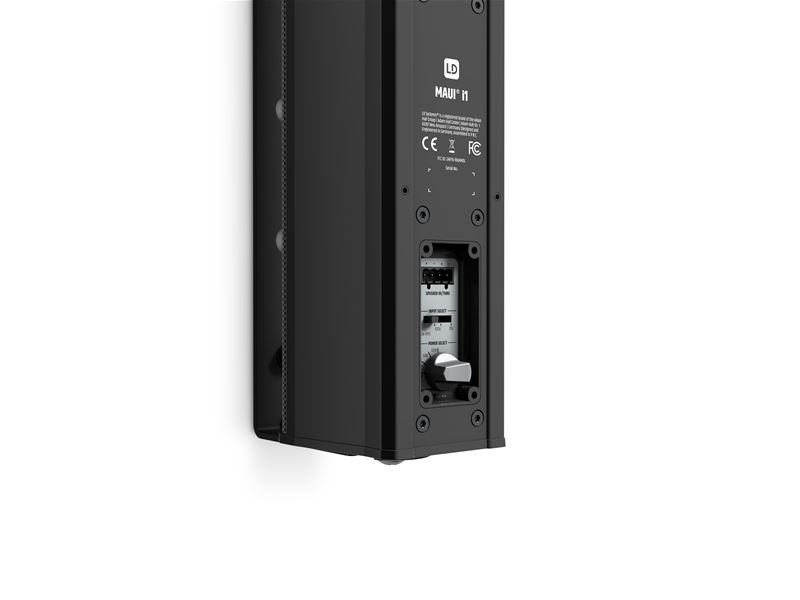

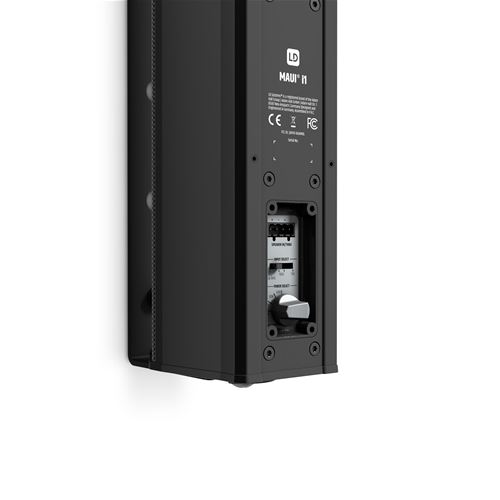

Input selector switch 70 V - 100V - 8 Ohms (transformer bypass)
100V Transformer power taps 60 - 30 - 15 - 7.5 W
70V Transformer power taps 60 - 30 - 15 - 7.5 W
Protection class IP 65
Loudspeaker inputs 1
Speaker input connections 4-pin Euro Terminal Block (Pitch - 5,08 mm)
Cabinet material Aluminium
Cabinet construction Closed
Width 85 mm
Height 985 mm
Depth 105 mm
Accessories (included) U-Bracket for surface mount
Optional accessories (not available yet), Bracket for tilt installation applications
Weight 8,6 kg
