LD Systems | VIBZ-6D | LD SYSTEMS VIBZ Series 6 Channel Mixing Console with DFX

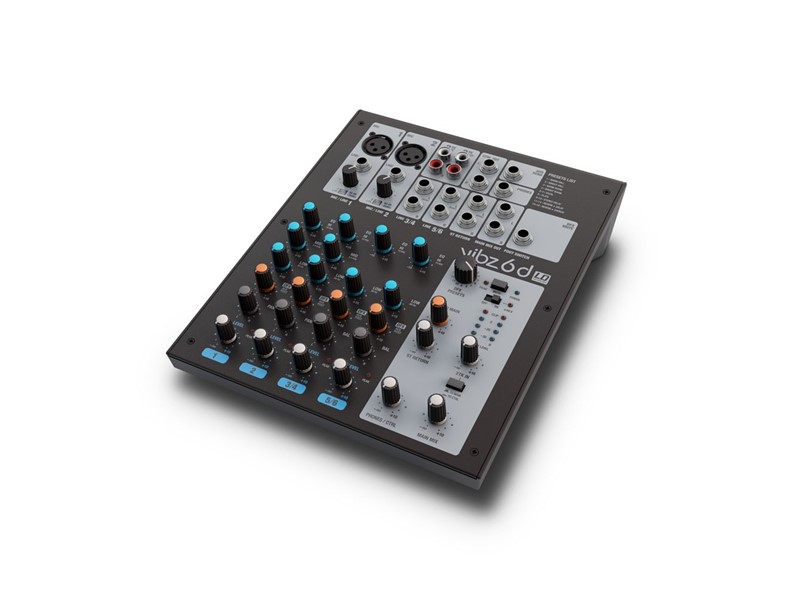

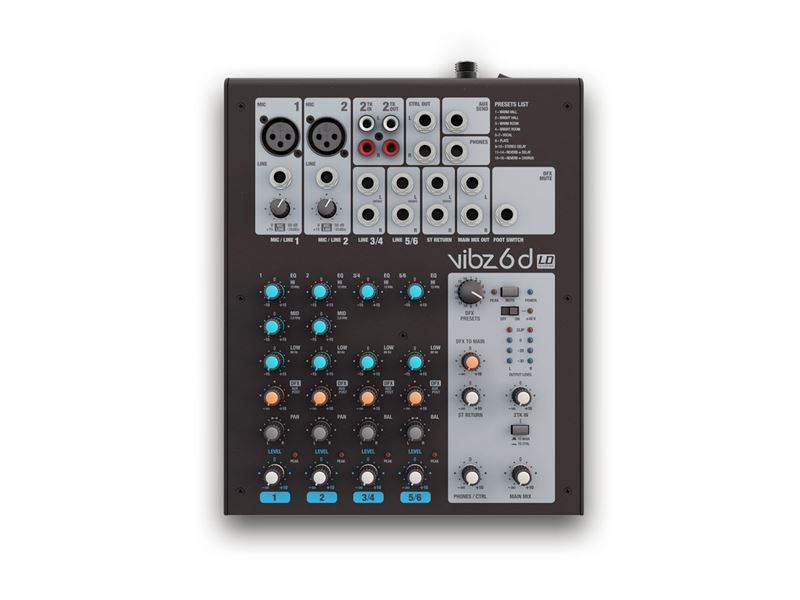

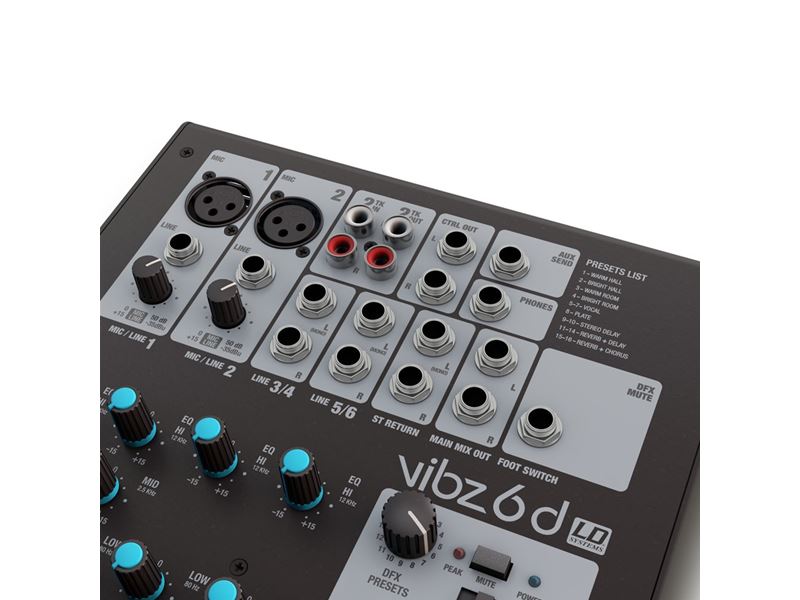

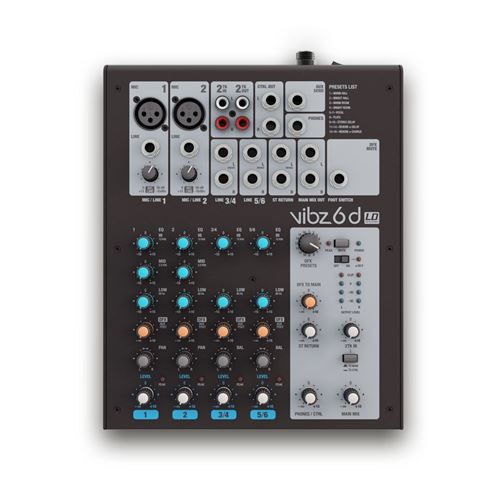

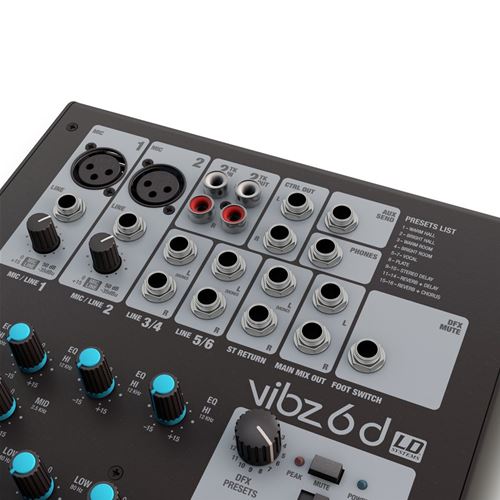

The VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop.

The master section of the VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which are foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.

A foot switch for the effects section and an adapter for mounting the VIBZ 6 on microphone stands are available as accessories.

General

Product type	Mixers
Type	Live
Channels	6

Mono Channels:

Mono Mic and Line Input Channels	2
Mono Mic input connectors	6.3 mm TRS, XLR
Mono Mic Input Type	Electronically balanced
Mono Mic Input Frequency Range	10 Hz
Amplification Range mono Mic Input	0 - 50 dB
Mono Mic Input Input THD-N	0.0058%
Mono Mic Input Impedance	4k Ohm(s)
Mono Line Input Type	Electronically balanced
Mono Line Input Frequency Range	10 Hz
Amplification Range mono Line Input	0 - 50 dB
Mono Line Input Input THD-N	0.0045 %
Mono Line Input Impedance	21k Ohm(s)
Mono Line Input S/N Ratio	116 dB
Mono Channel Equalizer High	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Low	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels	3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Gain, pan
Phantom power	48 V DC switchable

Stereo Channels:

Stereo Line Input Channels	2
Stereo Line Input Connectors	6.3 mm TS
Stereo Line Input Type	Unbalanced
Stereo Line Input Frequency Range	10 - 54000 Hz
Stereo Line Input Input THD-N	0.0045 %
Stereo Line Input Impedance	3,7k Ohm(s)
Stereo Line Input S/N Ratio	116 dB
Stereo channel equalizer treble	+/- 15 dB @ 12000 Hz
Stereo channel equalizer bass	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels	2-band EQ (High,Low), AUX (DFX) Post, Balance, Channel Volume

Main Section:

AUX / Effects Send Channels	1
AUX / Effects Send Connectors	6.3 mm stereo jack unbalanced
Stereo AUX Return Channels	1 x stereo
Stereo AUX Return Connectors	2 x 6.3 mm TRS
Stereo Tape Out Channel	1 x stereo
Stereo Tape Out Connectors	2 x RCA (Cinch)
Stereo Tape In Channel	1 x stereo
Stereo Tape In Connenctors	2 x RCA (Cinch)
Unbalanced stereo Main Outputs	1
Unbalanced stereo Main Output Connections	6.3 mm TRS
Unbalanced Stereo Main Out Impedance	120 Ohm(s)
Max. Unbalanced Stereo Main Out Level	+20 dBu
Stereo Control Room Out	1
Stereo Control Room Out Connectors	6.3 mm stereo jack unbalanced
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Digital Effects Processor	Yes, 24-bit AD/DA Resolution
Number of Presets	16
Footswitch Connector DFX Mute	6.3 mm TRS
Main section controls	2-track Assignment (Main, Contr. Room), 2-track In Volume, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators	4-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power

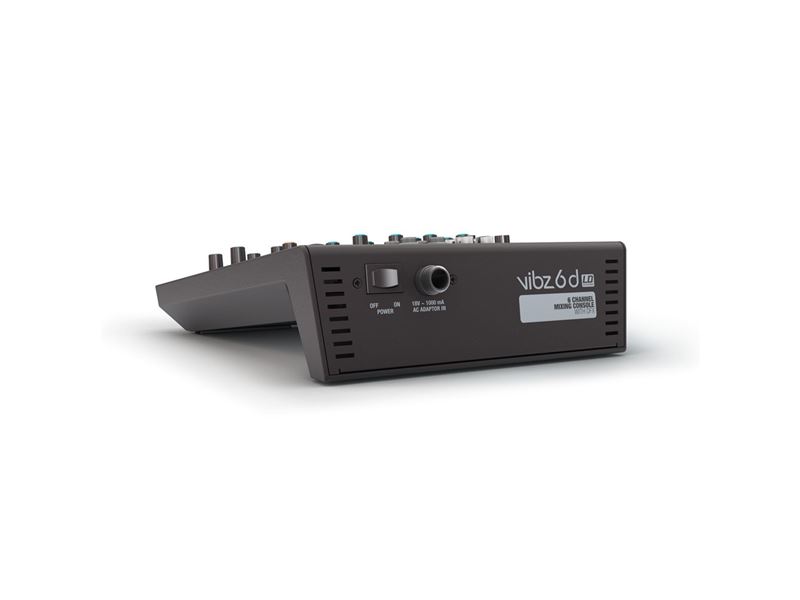

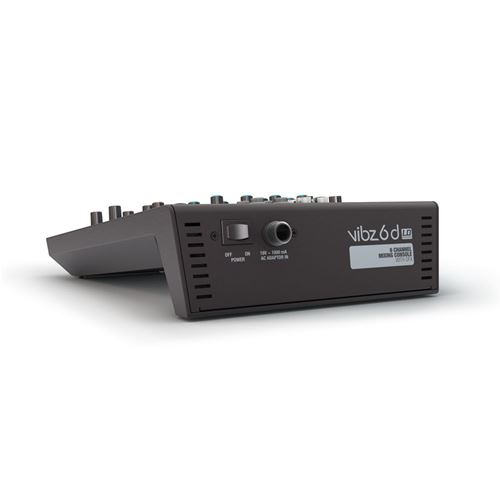

Operating voltage	18V DC - 1 A, External PSU, 230 V
Width	209 mm
Height	68 mm
Depth	260 mm
Weight	1,425125 kg
