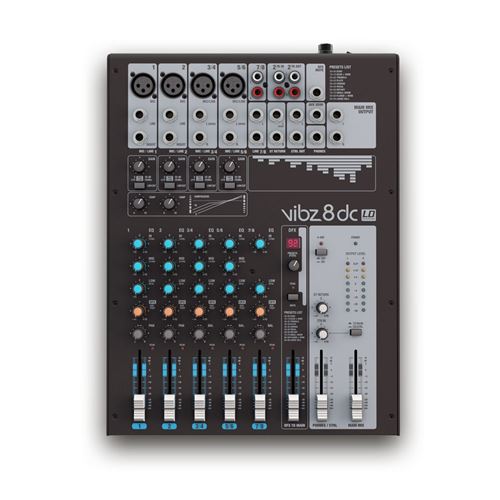

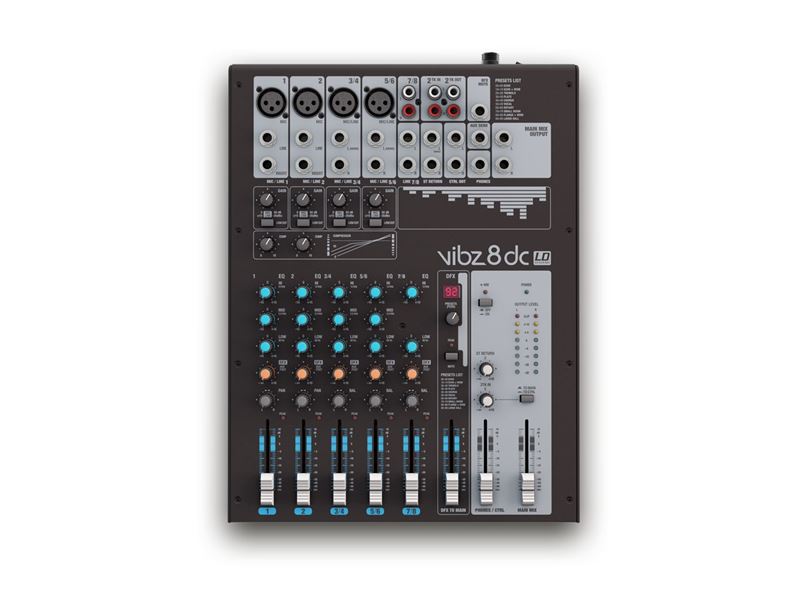

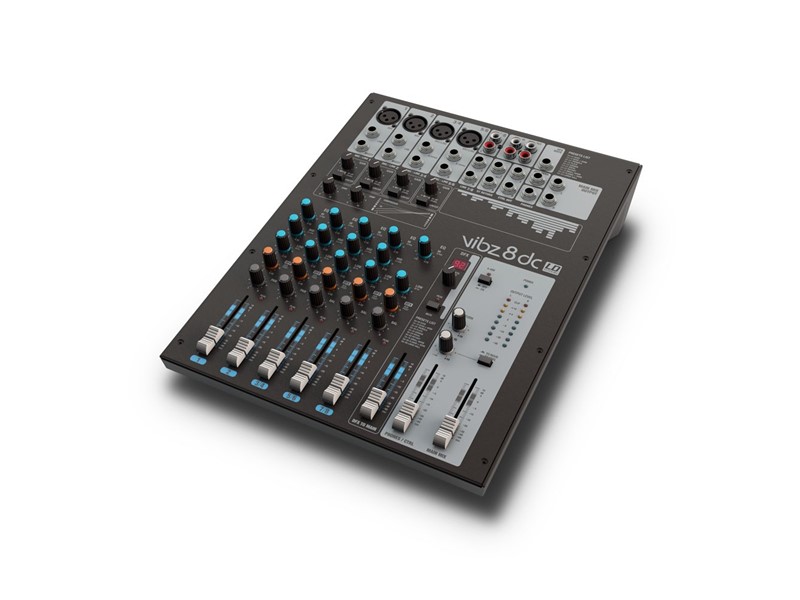

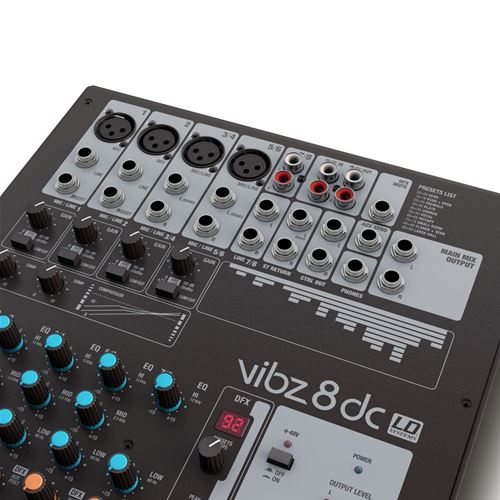

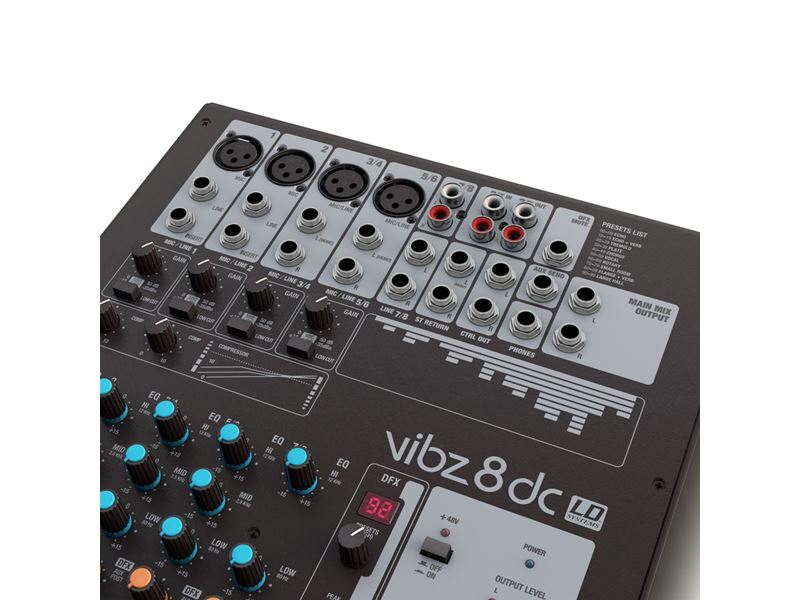

LD Systems | VIBZ-8DC | LD SYSTEMS VIBZ Series 8 Channel Mixing Console with DFX & Compressor

Four balanced microphone inputs with high-quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 into a flexible sound control unit.

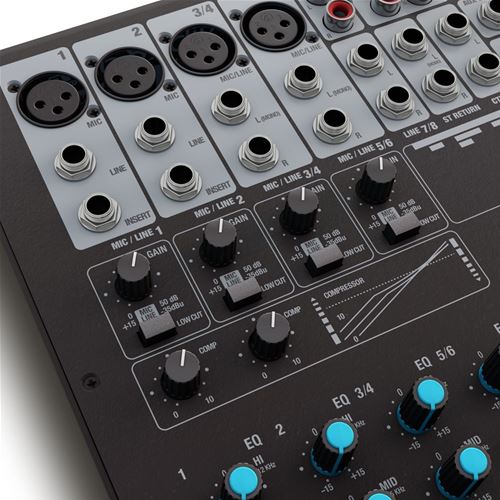

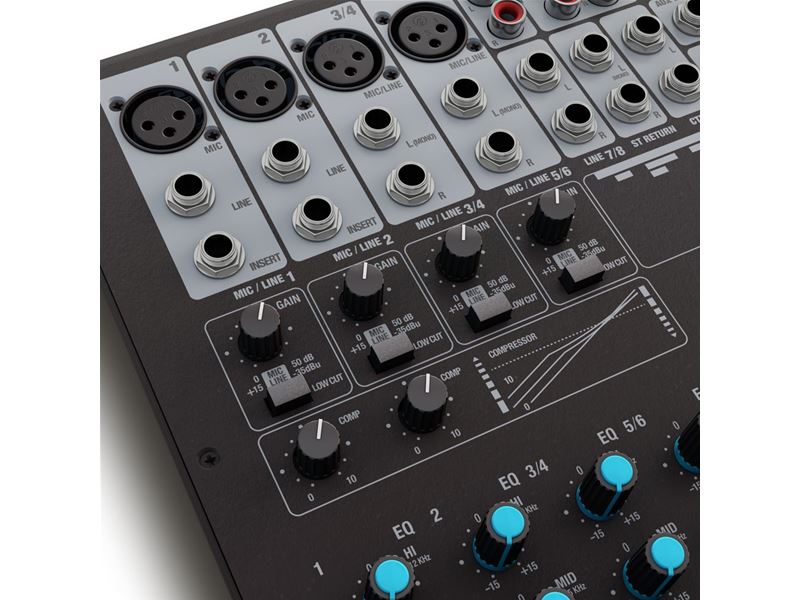

The microphone channels are switchable to line level and are equipped with high-quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 has very precise 3-band EQs with practical selectable mids.

The master section of the mixer features an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

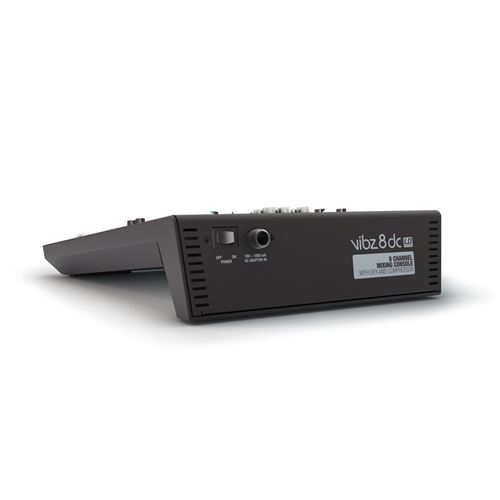

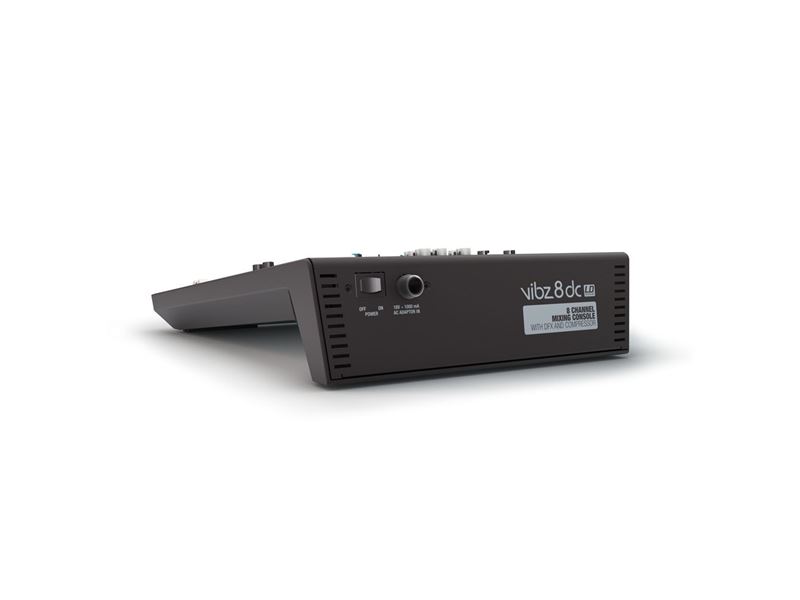

It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 on microphone stands are available as accessories.

General

Product type	Mixers
Type	Live
Channels	8

Mono Channels:

Mono Mic and Line Input Channels	4
Mono Mic input connectors	6.3 mm TRS, XLR
Channel Inserts	2
Channel Insert Connectors	6.3 mm TRS
Mono Mic Input Type	Electronically balanced
Mono Mic Input Frequency Range	10 - 45000 Hz
Amplification Range mono Mic Input	0 - 50 dB
Mono Mic Input Input THD-N	0.0058%
Mono Mic Input Impedance	4k Ohm(s)
Mono Mic Input S/N Ratio	113 dB
Mono Line Input Type	Electronically balanced
Mono Line Input Frequency Range	10 - 45000 Hz
Amplification Range mono Line Input	0 - 50 dB
Mono Line Input Input THD-N	0.0045 %
Mono Line Input Impedance	21k Ohm(s)
Mono Line Input S/N Ratio	113 dB
Mono Channel Equalizer High	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid	+/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels	3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor (channel 1+2), Gain, Low Cut (75 Hz), pan
Phantom power	48 V DC switchable

Stereo Channels:

Stereo Line Input Channels	3
Stereo Line Input Connectors	6.3 mm TRS
Stereo Line Input Type	Unbalanced
Stereo Line Input Frequency Range	10 - 45000 Hz
Amplification Range stereo Line Input	0 - 50 dB
Stereo Line Input Input THD-N	0.0045 %
Stereo Line Input Impedance	3,7k Ohm(s)
Stereo Line Input S/N Ratio	116 dB
Stereo channel equalizer treble	+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids	+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels	2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Channel Volume, Gain, Low Cut

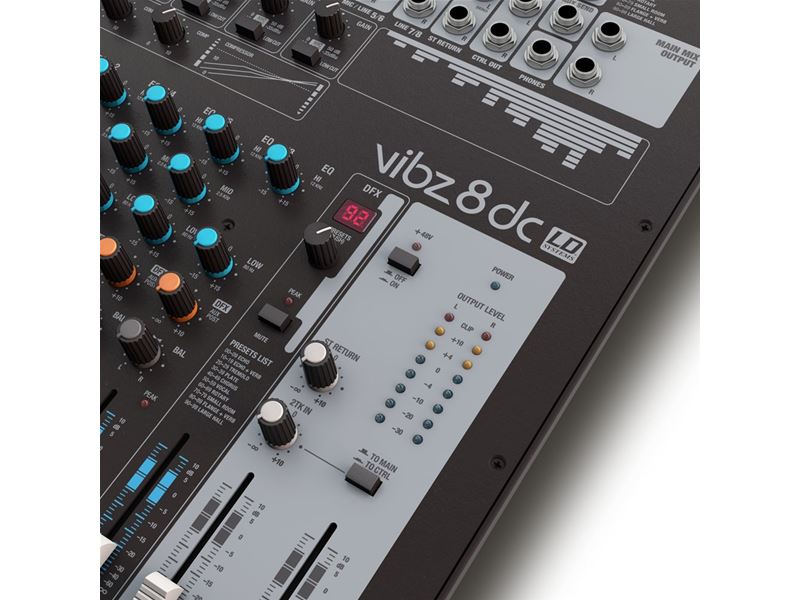

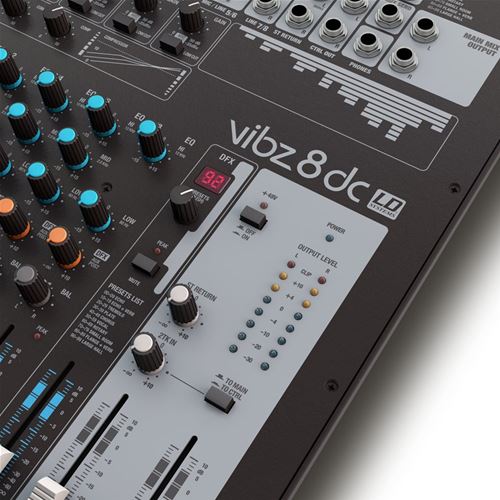

Main Section:

AUX / Effects Send Channels	1
AUX / Effects Send Connectors	6.3 mm stereo jack unbalanced
Stereo AUX Return Channels	1 x stereo
Stereo AUX Return Connectors	2 x 6.3 mm TRS
Stereo Tape Out Channel	1 x stereo
Stereo Tape Out Connectors	2 x RCA (Cinch)
Stereo Tape In Channel	1 x stereo
Stereo Tape In Connenctors	2 x RCA (Cinch)
Unbalanced stereo Main Outputs	1
Unbalanced stereo Main Output Connections	6.3 mm TRS
Unbalanced Stereo Main Out Impedance	120 Ohm(s)
Max. Unbalanced Stereo Main Out Level	20 dBu
Stereo Control Room Out	1
Stereo Control Room Out Connectors	6.3 mm TRS
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Digital Effects Processor	Yes, 24-bit AD/DA Resolution
Number of Presets	100
Footswitch Connector DFX Mute	6.3 mm TRS
Main section controls	DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators	8-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power
Operating voltage	18V DC - 1 A, External PSU, 230 V
Width	265 mm
Height	78 mm
Depth	352 mm
Weight	2,3 kg
