Technical Parameters:
Frequency Range
VHF 210 - 280MHz or
UHF 610 - 900 MHz
Frequency Stability
Dynamic Range
>90dB
Harmonic Distortion
<0.8%
Frequency Response
40Hz - 15KHz + 3dB
Audio Output
Balance: 400mV
Mixed Style: 400mV

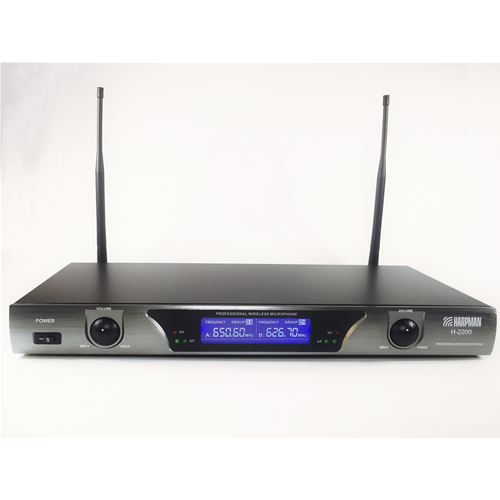

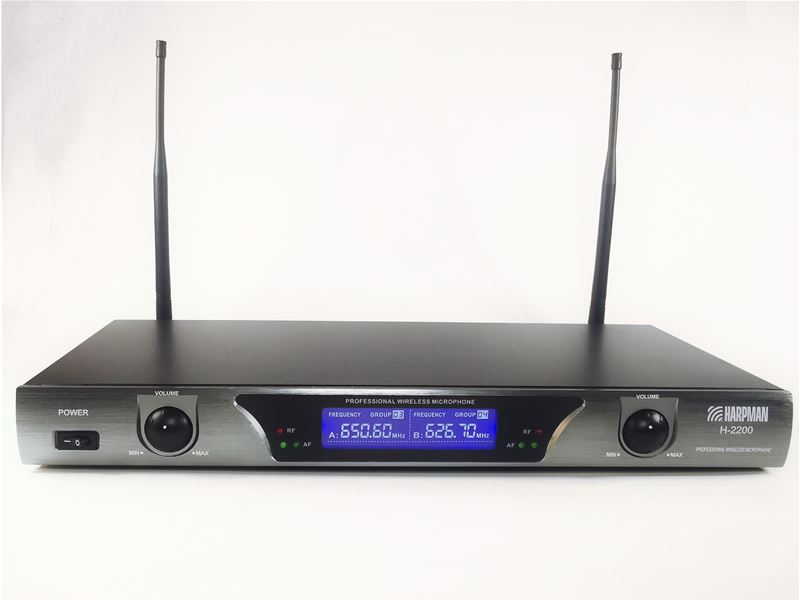

Receiver Specifications:
Power Supply
Voltage
DC12 - 15V
Power Consumption
2 WATT SNR: >100dB
False Interference Ratio
>80dB
Adjacent Channel Interference Ratio
>80dB
Rception Sensitivity
5dBuV (sinad>20dB)
To Aggravate
50uS

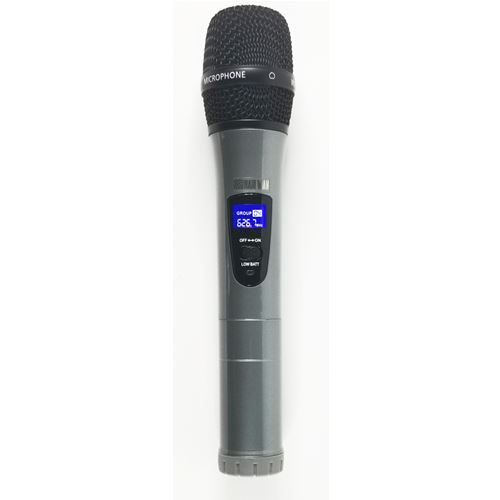

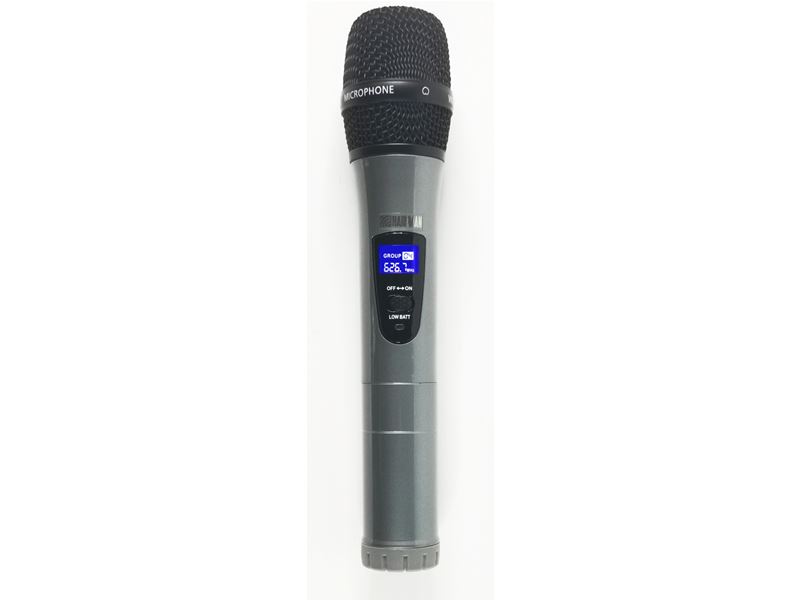

Handheld Microphone Specifications:
Transmitting Power
30mW
Modulation Mode
FM
Maximum Adjustment System
20KHz
High Harmonics
>40dB
Power Supply Voltage
3V (1.5V AA Battery x 2)
Duration
5 Hours

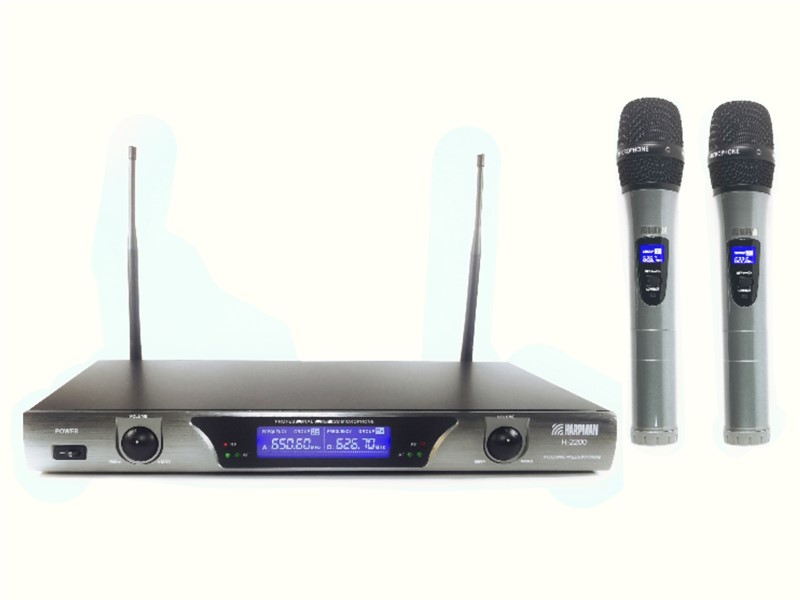

HARPMAN Dual Channel Handheld Wireless Microphone System
WMH-2200-H2
