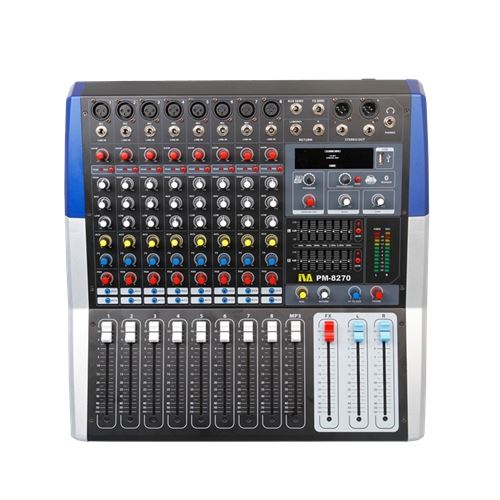

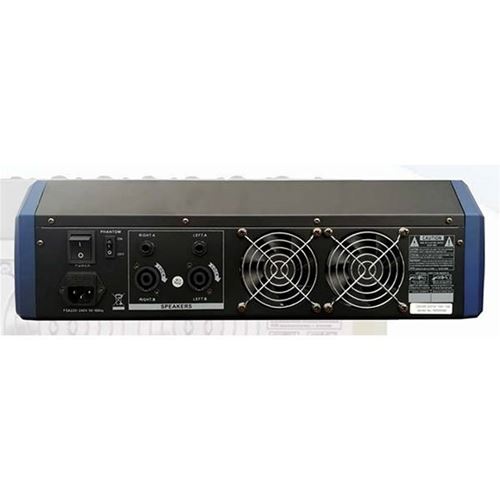

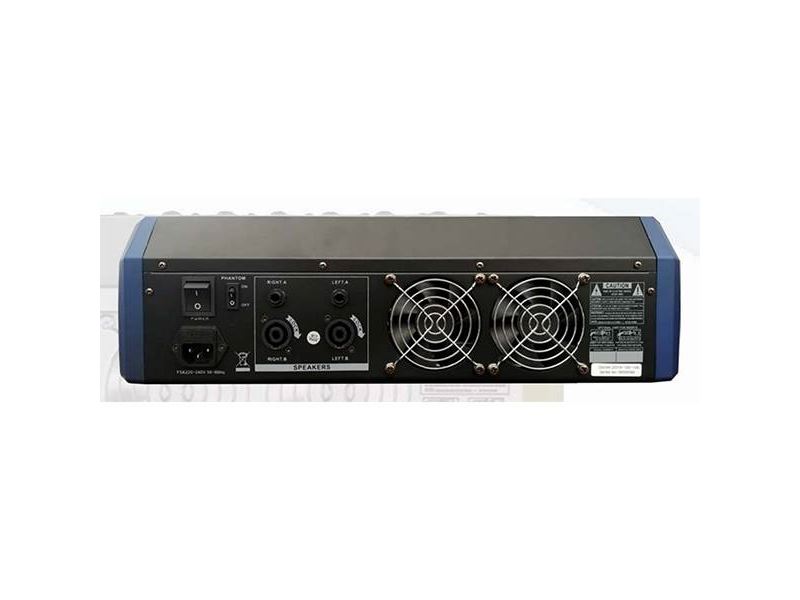

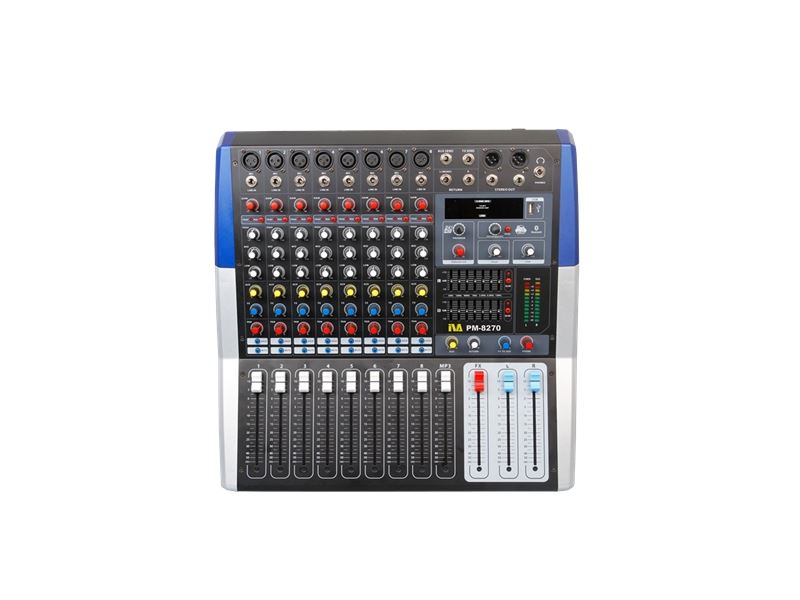

PM-8270 Power Mixer
IVA Powered Mixer provided unparalleled sonic quality at the high affordability. IVA PM-8270 audio powered mixer delivers a true power of 270W per channel at 4 ohm load. No less and no more, it deliver the power as it promised. This powered mixer is combination of audio mixer, amplifier, audio effect, MP3 Player, Bluetooth Player and Recording directto- thumbdrive into a single attractive and flexible portable PA system. With such powerful feature built under the hood, the engineer manage to ensure outlook look good to our eyes. With slanting panel mimicking digital board and long fader, the design is fantastic and ensure any PA setup look professional.
FEATURES
- 8 Mono Inputs Channels with silver plated XLRs and balanced Line Inputs
- Ultra-low noise LIVE grade Mic Preamps with + 48 V Phantom Power
- Ultra-musical 3-band EQ on all channels
- Peak LEDs all Mono Channels
- Single LIVE Grade 16DSP Effect Engine
- 1 Aux Send or FX Send per channel for external processing and outputs
- Dual 7-band equalizer
- Highly accurate 11 segment Bargraph Meters
- 1 Stereo Master output
- LIVE Grade Playback+Recording USB Thumbdrive
- Bluetooth Connectivity for Smartphone playback
- High accuracy volume control 100mm long fader

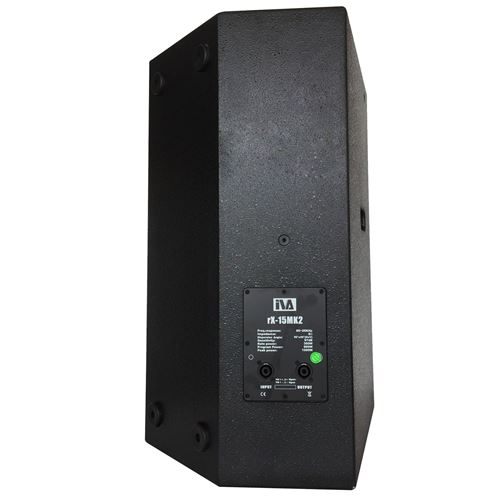

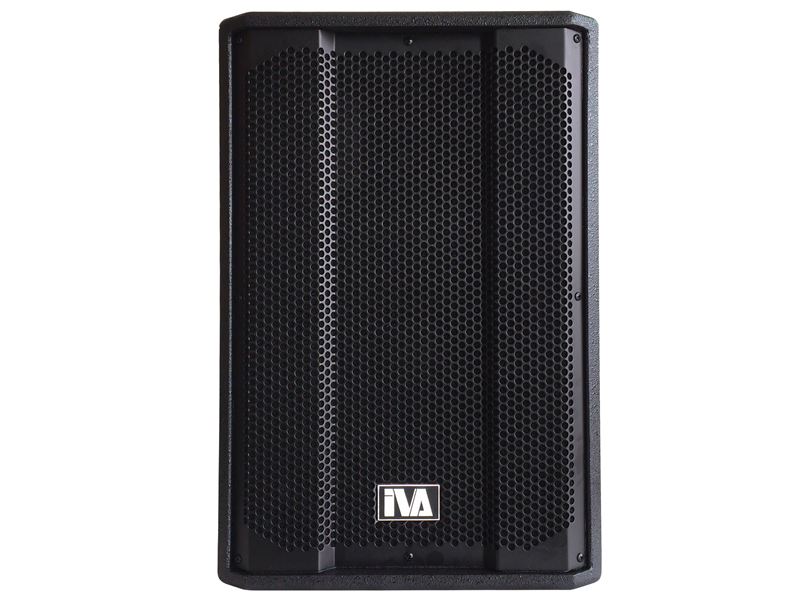

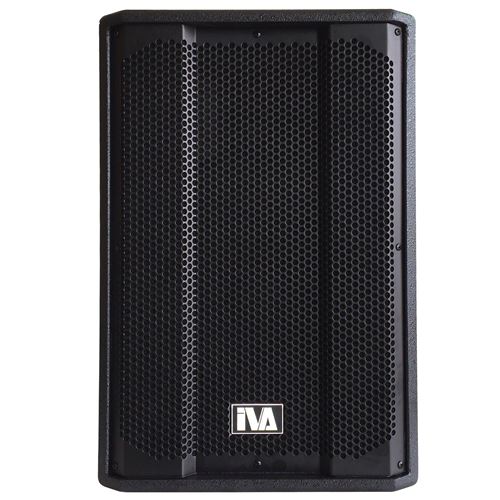

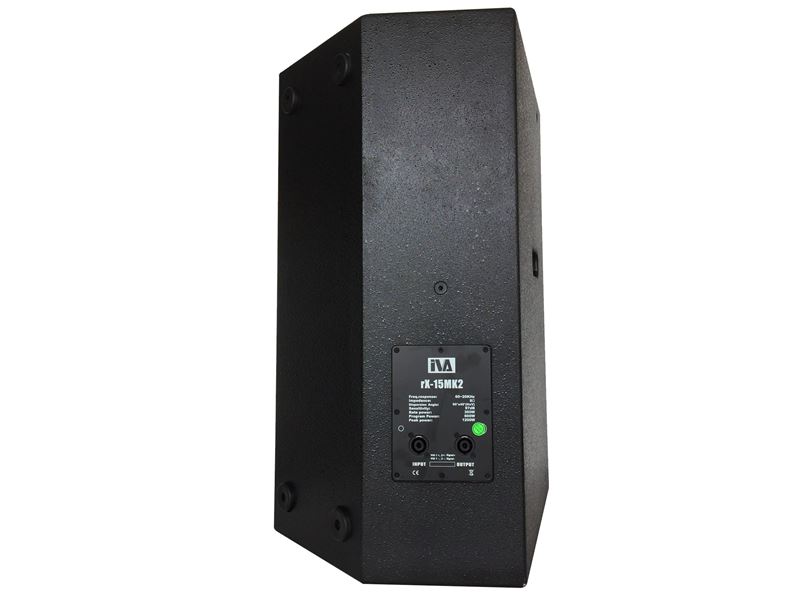

RX-15MK2 Fullrange Speaker
How to top a speaker product which already very good quality at entry level price tag? Based on IVA rX Series, the MK2 version expands the flexibility of rigging the system, improve the power handling and a truly multipurpose cabinet design. All of these new addition of features come even a lower price tags. With high clarity and tight punch, the performance outperform many others entry level speakers in market. Powerful long-excursion LF drivers and high performance compression drivers combined with optimized electronics specially engineered to deliver a highly professional product to entry-level users
FEATURES
- Powerful and improved drivers to delivers incredible acoustic and higher SPL
- High performance and improved compression driver for powerful high frequencies capable of long throw applications
- Elegant design with highly durable paint finishing
- High quality 15mm MDF wood cabinet
- Improved sturdy grill with backbone design
- Internal foam panel for protection against elements
- Industry Standard Speakon Connectors
- Integral Metal Tripod Stand / Pole Adapter
- Engineered in Malaysia
PM-8270 Power Mixer
- Mic Inputs: 8 electronically balanced discrete input configuration
- Bandwidth: 10 Hz to 60 kHz +/- 3 dB
- Distortion (THD & N): 0.01% at +4 dBu, 1 kHz, bandwidth 80 kHz
- Mic E.I.N (22 Hz – 22 kHz):
- - 122.0 dBqp, input shorted
- - 129.5 dBu, 150 Ohm source
- - 117.3 dBqp, 150 Ohm source
- - 132.0 dBu, input shorted
- GAIN / TRIM range: - 45 dB + 4 dB
- Line Input: 8 Mono electronically balanced
- Line Level Range: - 45dB to + 4dB
- MP3/Bluetooth Level Range: - 45dB to + 4d
- Hi: 12 kHz +/- 15 d
- Hi Mid: 2.5 kHz +/- 15 d
- Low: 80 Hz +/- 15 d
- Max Output: +22 dB
- Aux Send Max Out: +22 dB
- Signal-To-Noise ratio: 112 dB, all channels at Unity Gain
- TRUE POWER Outpu: 2 x 270W 4 ohm, 2 x 110W 8 Ohm
- Power Supply: Main Voltage U.K / Australia / Malaysia ~ 240 V AC, 50 Hz
RX-15MK2 Fullrange Speaker
- Frequency response: 60 – 20000 Hz
- Sensitivity (1W 1m +/- 3dB): 97
- Peak SPL @ 1m: 127.8dB
- RMS Power: 300W
- Program power: 600W
- Peak power: 120W
- Nominal impedance: 8 Ohm
- Crossover frequency: 2200Hz
- Dispersion angle (H x V): 90º x 40º
- Dimensions: 480 x 420 x 700 mm
- Weight: 23kg
