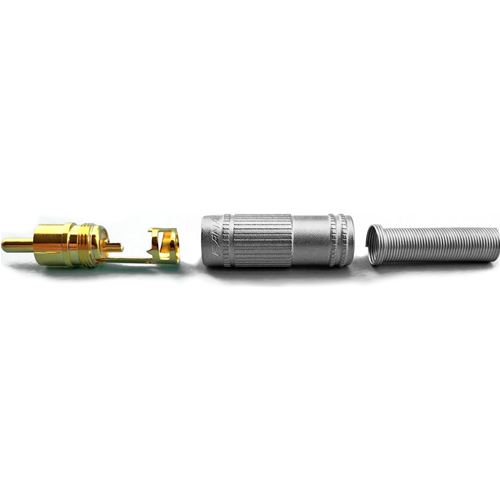

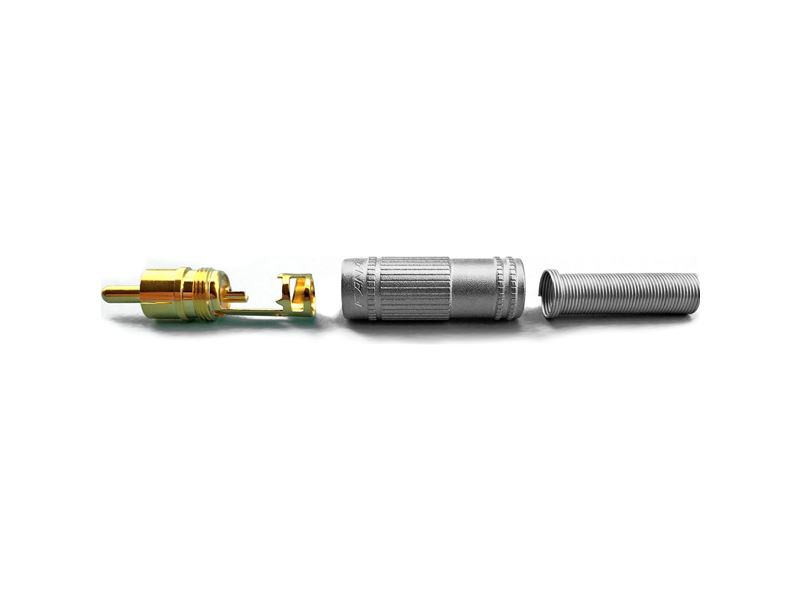

RCA Long Handle, Gold Tip Connector - Solder Type
Canre offers in-line cable mount audio plugs in a variety of configurations for the discriminating professional. Each model is carefully designed to accommodate small to large O.D. cables and all versions offer a generous soldering area for easy wiring assembly, good electromechanical characteristics, super performance and long life durability.
KEY FEATURES
- Dependable Construction
- Easy to Solder
- Beautiful, Long Lasting Finish
- Gold Plated Conductors
- Narrow Profile
- Body Extends Over Contact
- Model: F-09
- Type: RCA
- Notes: Narrow profile. Body extends over contact.
- Cable Entry I.D. inches (mm): 0.248 (6.3)
- Max Cable O.D. inches (mm): 0.236 (6.0)
- Shaft Material (Plating): Brass (Gold)
- Dielectric: Polyacetal
- Body Material (Plating): Brass (Nickel)
- Insulation Tube: ~
- Cable Spring Plating: Nickel
- Width inches (mm): 0.46 (11.7)
- Length w/spring inches (mm): 2.55 (64.8)
- Length w/o spring inches (mm): 1.68 (42.7)
