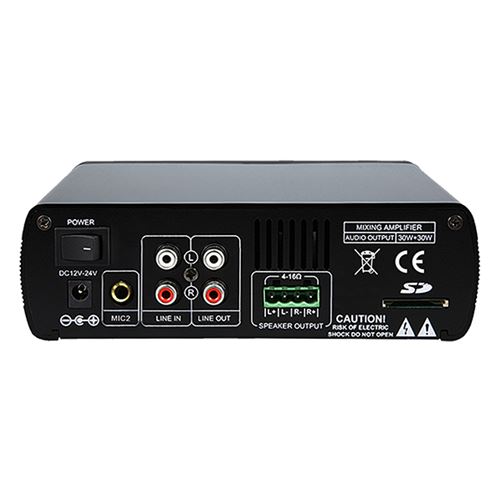

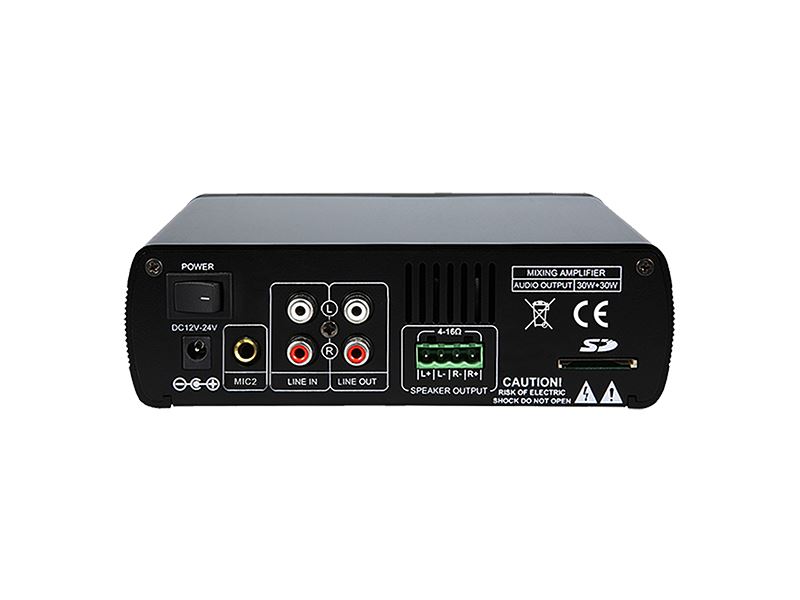

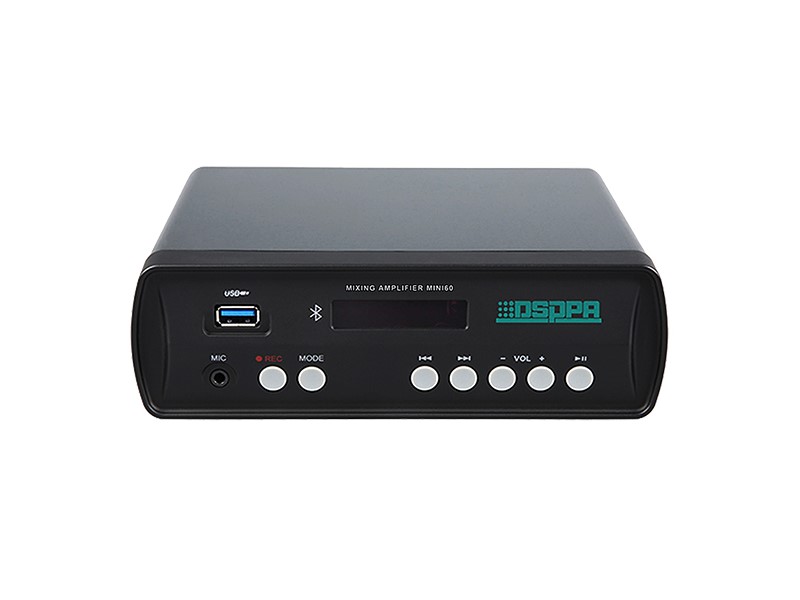

MINI60 is a digital mixer amplifier, also known as public address mixer, and a small acoustic amplification system featured by simplicity. It's called small Bluetooth amplifier.
Features
|
Item |
Indicator |
Remark |
|
AUX input sensitivity (Input/Sensitivity) |
-6dBV |
OUT 30W×2
DC 20V |
|
MIC input sensitivity (Input/Sensitivity) |
-45dBV |
|
|
Power output (Power Output) |
2×30W |
|
|
Static power consumption (Power) |
0.24W |
|
|
Maximum power consumption (Max Power) |
90W |
|
|
Degree of distortion (Harmonic Distortion) |
1% |
4Ω/10W×2 |
|
Signal to noise ratio (S/N Ratio) |
MIC: 73dB AUX: 55dB |
|
|
Range of power supply (Power Supply) |
DC 12V~24V |
|
|
Frequency response (Frequency Response) |
MIC: 100Hz~16kHZ AUX: 20Hz~22kHz |
±3dB |
|
Unit size (L×W×H mm) |
180×145×60 |
|
|
Net Weight |
0.8Kg |
Without power adapter |
|
Packing size (L×W×H mm) |
287x223x108 |
|
|
Gross Weight |
1.0Kg |
|
